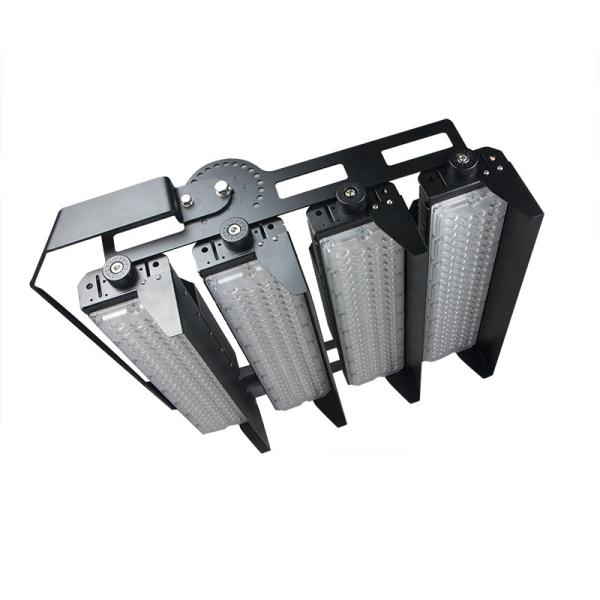

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane
Specifications
Brand Name :
UShineray
Model Number :
YXR-QC-1000W-I
Certification :
RoHS, CE
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Input Voltage(V) :
AC100-277V
Lumen :
150000lm
Warranty :
5-years
Working Lifetime(Hour) :
50000
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, auto CAD layout, Project Installation
Types :
Stadium Floodlight
Power :
1000W
Material :
Aluminum+PC
LED Chip :
San'an/ Lumileds 5050
LED Driver :
Moso or other brand as you want
Description

Wide Illumination 1000W Sport Stadium Light led athletic field lighting for Crane

The 1000W LED athletic field light provides wide illumination, perfect for cranes and large machinery. Its extensive light distribution ensures that every area of the field is evenly lit, enhancing safety and operational efficiency. Designed for industrial use, it delivers comprehensive visibility and uniform lighting.

Product Features

  • Adjustable Single Module: The lamp features a single module with a robust, reinforced bracket that allows for a 180° adjustment, providing flexibility in directing light.
  • Blackout Brim for Glare Reduction: The built-in blackout brim reduces glare and controls light spill, improving the effectiveness of the illumination.
  • High-Transmittance Optical Lens: Equipped with an optical lens offering high light transmittance and frosted finish, with beam angles of 10°, 20°, 40°, and 60° for precise lighting.
  • Moso Brand Driver: Uses a Moso driver known for its protection against lightning and explosions, with waterproof and dust-proof features that ensure consistent LED performance.
  • Advanced Radiator Design: Features a three-dimensional radiator made of thick aviation aluminum, providing excellent heat dissipation and resistance to high temperatures and corrosion.
  • IP66 Waterproof and Sealing: The fixture is designed with an IP66 rating, waterproof joints, and sealing gaskets to ensure reliability in challenging environments.
Product Parameters
Model YXR-QC-1000W-I
Power 1000W
Other Power Options 250W 500W 750W 1250W 1500W
Input Voltage AC100-277V
Efficacy 150 lm/W
Lumen 150000lm
Beam Angle 10°/20°/40°/60°
LED San'an/ Lumileds 5050
CCT 3000~6500K
CRI ≥70Ra
PF >0.97
THD 15%＜THD＜20%
Weight(kg) 22.3
Sizes(mm) 630*590*240
Work Temp 35~55℃
Humidity 15%~90% RH, no condensing
IP Grade IP66
IK Grade IK08
Life Span ≥50,000 Hrs (LM70 @ 35℃ )
Finish Sprayed with outdoor special powder
Product Material PC lens + Aluminum housing
Electronic Safety Grade Class I
Power Wire Rubber cable(3*1mm²) L=0.5m
Products Details
Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

Single modular adjustable

The whole lamp bracket is thickened and reinforced,it can be easily adjustable≥80°

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

IP67 waterproof

IP67 waterproof, surge protection 4KV-20KV.

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

Optical lens

No glare, high lumen 150lm/v

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

Famous brand Moso driver

Lightning proof, explosion proof waterproof and dustproof: Effectively ensure the lamp LED chips continue to

highlight; high stability flicker-free.

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

Three-Dimensional radiator

Thickened aviation aluminum.corrosion resistance.high temperature resistance,fast heat dissipation.

Applications

Wide Illumination Sport Stadium Light 150000lm Led Athletic Field Lighting For Crane

FAQ

Q1. Are you a manufacturer?
Yes, we have our factory with over 10 years of R&D and manufacturing experience based on ISO quality management since 2011.

Q2. Do you have any MOQ limit for LED light orders?
No MOQ, 1pc for sample checking is available.

Q3. Can I get a lower price for a large quantity of orders?
Yes, please check with our sales staff for the details.

Q4. How about the lead time of ordering?
Our standard sample lead time is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.

Q5. Can you provide OEM and ODM services?
We can provide OEM and ODM products, with customized label designs on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.

Q6. What is the payment terms of your formal order?
We accept payment via TT, Paypal, and Western Union, and we offer EXW, FOB, CIF, and CFR terms.

Q7. How to deal with the defective?
All of our products are produced in a strict quality control system, the defective rate is less than 0.2% according to our shipment records. We offer a 3- 5 years warranty for this product, if there is any defective during the warranty, please provide pictures or videos of the working situation of the defective lights, and we will ship the new lights to you within a few days or send it together with your next order.
