Specifications
Brand Name :
UShineray
Model Number :
YXR-QC-2000W-K
Certification :
FCC, LVD, EMC, RoHS, CE
Place of Origin :
Shenzhen, China
MOQ :
1pcs
Payment Terms :
T/T, Paypal, Western Union
Application :
Airport Illumination, Outdoor High Mast Lighting
Beam Angle(°) :
15°/ 30° / 45° / 60°
Input Voltage(V) :
AC100-277V
Lamp Luminous Flux(lm) :
300000
Warranty(Year) :
5-Year
Lighting solutions service :
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout, Agi32 layout
Product Name :
2000W Sports Stadium Light
Power :
2000W
LED Chip :
San'an/Lumileds/SMD 3030
Material :
PC lens + Aluminum housing
Description

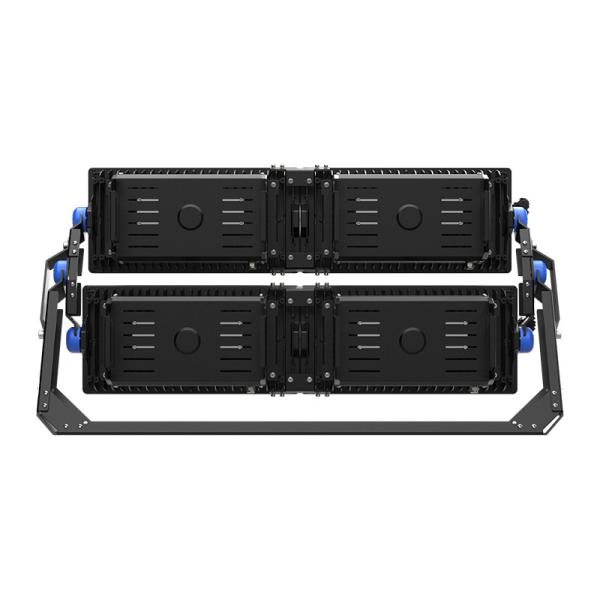

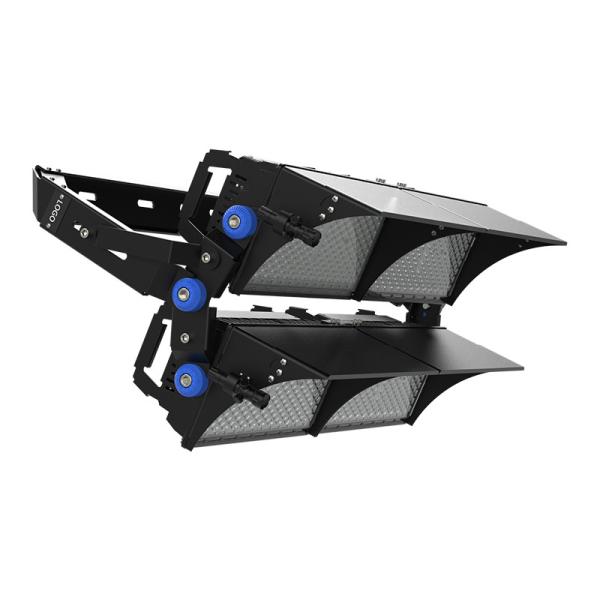

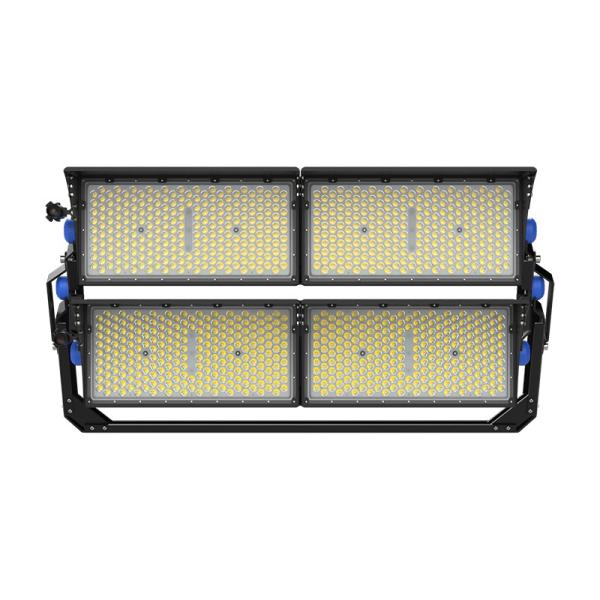

Pole-Mounted 2000W Stadium Sport Spot Light for Airport Terminal

This 2000W pole-mounted stadium spotlight is specifically designed for airport terminal lighting. Engineered for high-intensity illumination, it provides clear, uniform light across expansive areas, ensuring enhanced visibility and safety for airport operations. Its durable construction and robust design withstand the rigors of high-traffic environments, while its efficient LED technology minimizes maintenance and energy costs. Ideal for illuminating large terminals and ensuring optimal lighting for both operational and passenger areas.

Product Details

  • An IP67-rated external driver is placed within a specialized iron shell, preventing contact with the lamp body and ensuring thermal isolation for increased longevity.
  • Each lamp module can be adjusted with precision to improve on-site lighting parameters.
  • The lamp housing is treated with anti-corrosion and electrophoresis processes for enhanced durability.
  • Designed with IP66 standards for dust, moisture, and waterproof protection.
  • Excellent optics provide uniform light spots, high efficiency of 150lm, low glare, and effective long-range projection.
  • Available with various intelligent control systems such as DALI and DMX for flexible lighting control options.

Product Parameters
Model YXR-QC-2000W-K
Power 2000W
Lumens(lm) 320000
Other Power Options 500W/1000W/1500W
Weight(kg) 64.7
Sizes(mm) 1166*603*573
Efficacy 160lm/W
CCT 3000K-6500K
CRI ≥70Ra
LED Chips San'an 3030/Lumileds 3030
PF >0.97
Input Voltage AC100-277V(Moso)
Beam Angle 15°/ 30° / 45° / 60°
Work Temp -35~55
Humidity 15%~90% RH, no condensing
Finish Sprayed with outdoor special powder
Life Span ≥50,000 Hrs (LM70 @ 35 )
IP Grade IP66
IK Grade IK08
Body material PC lens + Aluminum housing
Power Wire Rubber cable(3*1.5mm²) L=0.3m
Electronic safety grade Class I
Product Details

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

Optical light distribution

With narrow, middle width beam angle: 15° 30° 45° 60° 90°.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

Luminous efficiency

150lm/W Higher light efficacy can be customized, low decay.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

Brand Driver

Famous brand Moso driver or other brand driver optional, good stability, high efficiency, flicker free, anti-surge.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

Laser sight

Quick-installed laser sight, easily adjusts the direction of illumination to achieve maximum lux

and uniformity.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

180° adjustable.

The bracket is equipped with a dial, 180° adjustable.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal

Lamp IP66 Waterproof

IP67 LED Driver with silicone waterproof sealing strip, UV-resistant material, reliable without failure.

Applications

Sports lighting area: football field, cricket stadium, badminton court, basketball court, baseball field, tennis court, table tennis field, racetrack.

High pole lighting area: mining area, outdoor construction area, mobile tower lighting.

Pole-Mounted 2000W Stadium Sport Spot Light For Airport Terminal
