Description

USRP Daughterboards SBX-LW 40MHZ

The SBX is a wide bandwidth transceiver that provides up to 100 mW of output power, and a typical noise figure of 5 dB. The local oscillators for the receive and transmit chains operate independently, which allows dual-band operation. The SBX is MIMO capable, and provides 40 MHz of bandwidth. The SBX is ideal for applications requiring access to a variety of bands in the 400 MHz-4400 MHz range. Example application areas include WiFi, WiMax, S-band transceivers and 2.4 GHz ISM band transceivers.


Main Features:

1. Frequency coverage:400-4400 MHz Rx/Tx 2. Maximum signal bandwidth includes: 40 MHz , 120 MHz 3. It delivers 100 mW of output power and 5dB of noise figure. The local oscillator can be used for receiving and transmitting channels, and can also be used for dual-band operation. 4. MIMO-enabled, ideal for applications that need to operate in multiple frequency bands in the 400 to 4400 MHz frequency range 5. Typical applications include WIFI, WIMAX, S-band transceivers and 2.4GHz ISM band transceivers

Functional description:

The SBX-LW-40 is a high-bandwidth transceiver that provides up to 100mW of power output with a noise figure of 5 dB. The local oscillator's receive and transmit chains operate independently, allowing dual-band operation. The SBX-LW provides MIMO functionality. For those who want to access a wide range of applications from 400 MHz to 4400 MHz, the SBX-LW is the ideal SDR device. Applications include WiFi, WiMAX, S-band transceivers and 2.4 GHz ISM band transceivers.

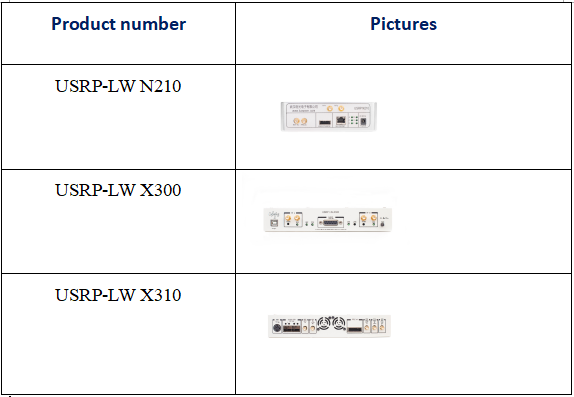

Compatible product:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers


Test SBX-LW 40M

Test environment description: R&S company equipment is used for testing, the model is ZVL. The test equipments are USRP-LW X310 and SBX-LW 40M. The two devices are connected by radio frequency cable directly. Test environment diagram:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Open-loop transmitter test connection diagram:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Closed-loop Spontaneous Receiving Test Connection Diagram:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Open-loop and closed-loop test data based on GNURADIO COMPANION: GNURADIO COMPANION test block diagram:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

1. Carrier suppression and Image Reject Test: Central frequency 2.4 GHz, baseband signal frequency 10 kHz, GAIN 9dB

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Central frequency 2.4 GHz, Maximum Output Graphics:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

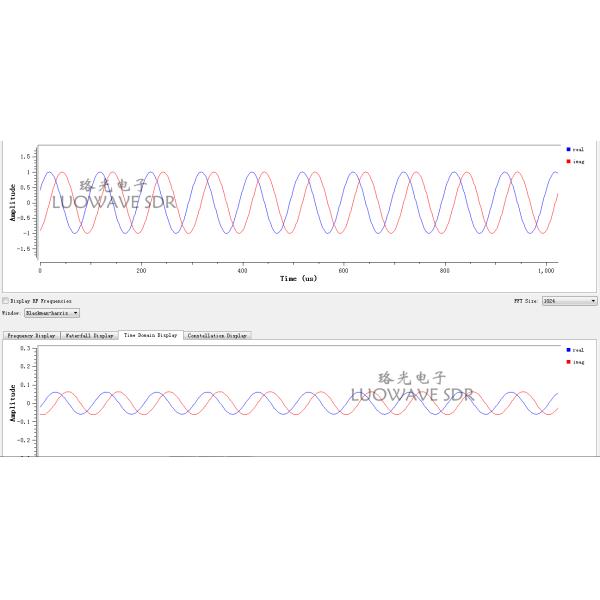

Central Frequency 2GHz, Closed Loop Transceiver Test Spectrum and Time Domain Graphics

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band TransceiversSBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

2. Carrier suppression and Image Reject Test: Central frequency 3GHz, baseband signal frequency 10kHz, GAIN 9dB

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Central frequency 3GHz, Maximum Output Graphics:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Central Frequency 3GHz, Closed-Loop Transceiver Test Spectrum and Time-Domain Graphics

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band TransceiversSBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

3. Carrier suppression and Image Reject Test: Central frequency 4 GHz, baseband signal frequency 10 kHz, GAIN 9 dB

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

2. Carrier suppression and Image Reject Test: Central frequency 3GHz, baseband signal frequency 10kHz, GAIN 9dB

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

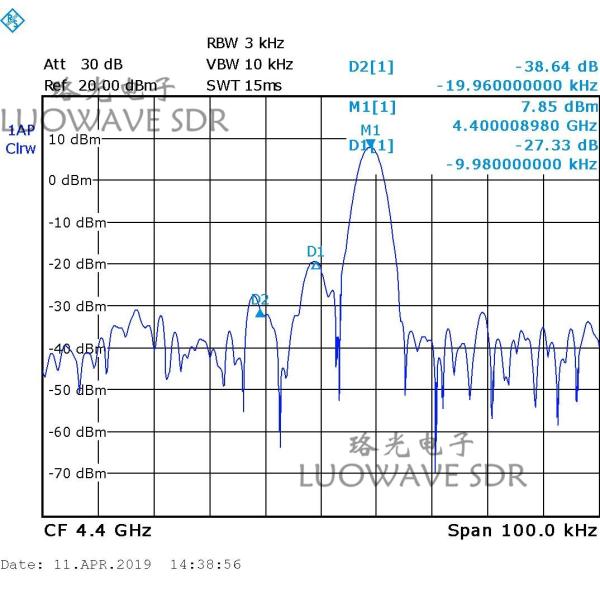

Central frequency 4.4 GHz, Maximum Output Graphics:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Phase noise measurement: central frequency 1 GHz:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Please feel free to send us a message if you have any questions. We will devote our best efforts to provide you with the best service.

3. Carrier suppression and Image Reject Test: Central frequency 4 GHz, baseband signal frequency 10 kHz, GAIN 9 dB

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Central frequency 4 GHz, Maximum Output Graphics:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers

Central frequency 4.4 GHz, Maximum Output Graphics:

SBX-LW 40 | USRP RF Daughter Card WiMax WiFi And 2.4GHz ISM Band Transceivers
