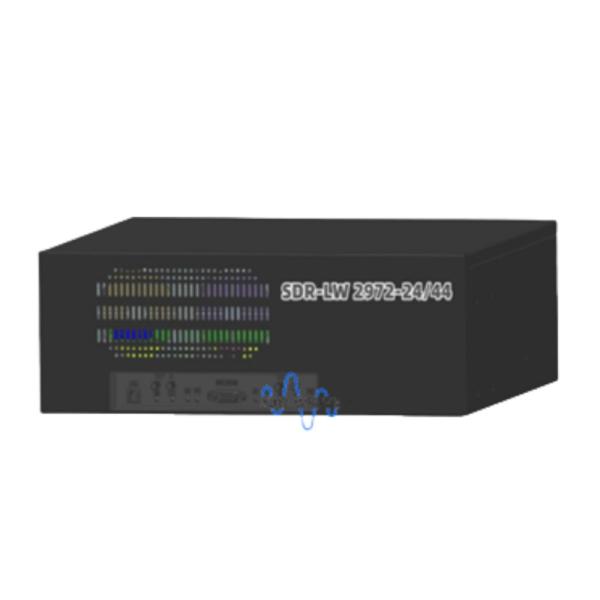

SDR-LW 2972-44 | AD9361 RF 70 MHz-44 GHz, 56 MHz BW Each, 2 Channels, USB 3.0, USRP Integrated Software Defined Radio Device
SDR-LW 2972-44 | AD9361 RF 70 MHz-44 GHz, 56 MHz BW Each, 2 Channels, USB 3.0, USRP Integrated Software Defined Radio Device
Specifications
Brand Name :
Luowave
Model Number :
SDR-LW 2972-24
Place of Origin :
China
Price :
$67,500.00
Frequency Range :
70 MHz-24 GHz
Bandwidth :
56 MHz Each
Channel :
2T2R
CPU :
Intel Core i7 8700
Connector :
USB3.0, RJ45
FPGA :
Artix 7 XC7A200T
Weight :
15Kg
Size :
65.8*38.2*13 CM
Description

Overview

SDR-LW 2972-44 is a product developed by LUOWAVE. This equipment is based on the classic radio equipment SDR-LW 2972. While has an increased transmission and reception frequency range up to 44GHz.At the same time, it inherits all the functions and advantages of its predecessor.

The SDR-LW 2972-44 is powered by open-source, cross-platform UHD, which supports most applications and SDR frameworks such as GNU Radio, Matlab, LabView. Users can take advantage of the abundant FPGA resources and USRP-supported development framework to develop and implement their own DSP processing modules.

Features

  • i7 processor
  • Linux real-time operating system
  • USB 3.0 interface
  • 500GB SSD, 16GB RAM
  • 70MHz-44GHz frequency coverage
  • A maximum throughput of 61.44 MSps
  • Built-in Artix 7 XC7A200T FPGA
  • Support external reference clock and PPS signal reference
  • Support 2 transmit 2 receive


Supported Development Tools
  • GNU Radio
  • Matlab
  • Labview

Specifications





Transmit

Receive

Number of Channels

2

Number of Channels

2

Frequency Range

70MHz-44GHz

Frequency Range

70MHz-44GHz

Local Oscillator Accuracy

2ppm

Maximum

Output Power

16dBm

Maximum Input Power

-15dBm

Gain Range

0-89.8dB

Gain Range

0-75dB

Gain Stepping

1dB

Gain Stepping

1dB

Maximum Real-time Bandwidth

56MHz

Maximum Real-time Bandwidth

56MHz

FPGA and Baseband

Industrial Computer

FPGA

Artix 7 XC7A200T

Processor

I7 9700

DRAM

1G

Memory Card

16G

ADC Resolution

12 bits

USB

USB 3.0

DAC Resolution

12 bits

Network Port

RJ45

ADC

Sampling Rate

61.44 MSps

Display Interfaces

HDMI

Environment

Power

Operating Temperature

0-50℃

Voltage

220V

Humidity

10%-90%

(non-condensing)

Current

2A Max

Physical Properties

Size

65.8*38.2*13 CM

Weight (SDR-LW 2972-44)

17.5Kg


Integrated SDR Comparison

P/N

Frequency Range

CPU

Max.Bandwidth

Channel

ADC/DAC

FPGA

Connector

Size(mm)

SDR-LW 2972

70MHz-6GHz

Intel Core i7 8700

56MHz

2T2R

AD9361
ADCs:12-bit 61.44 MS/s
DACs:12-bit 61.44MS/s

Xilinx Artix-7 XC7A 200T

USB3.0,RJ45

235*300*85

SDR-LW 2974

10MHz-6GHz

Intel Core i7 9700

160MHz

2T2R

ADCs:ADS62P48 14-bit,configurable sampling rate:184.32,200 MS/s
DACs:AD9146 16位,800 MS/s

Xilinx Kintex-7 XC7K410T

USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4

235*265*135

SDR-LW 2974 Note

430*300*135

SDR-LW 2975

70MHz-6GHz

Intel Core i7 8700

56MHz

2T2R

AD9361
ADCs:12-bit 61.44 MS/s
DACs:12-bit 61.44MS/s

Xilinx Zynq-7020

USB3.0,RJ45,PCIe,Genx4,HDMI

210*235*85

SDR-LW 3980

75MHz-6GHz

Intel Core i9-9900K

Tx:450MHz
RX:200MHz

8T8R

ADRV9009
ADCs:16-bit Max. sampling rate 245.76MS/s
DACs:14-bit Max. sampling rate 491.52MS/s

Xilinx Zynq UltraScale+ ZU11EG

USB3, USB2, PCIe 3.0 x8,Gigabit, 10-gigabit network port

280*410*175

SDR-LW 4940

1MHz-7.2GHz

Intel Core I9-9900K

400MHz

4T4R

ADCs:12-bit
DACs:14-bit

Xilinx Zynq Ultrascale+ ZU28DR RFSoc

1 × QSFP+, 2× RJ45, USB 3.0

430*378*145
