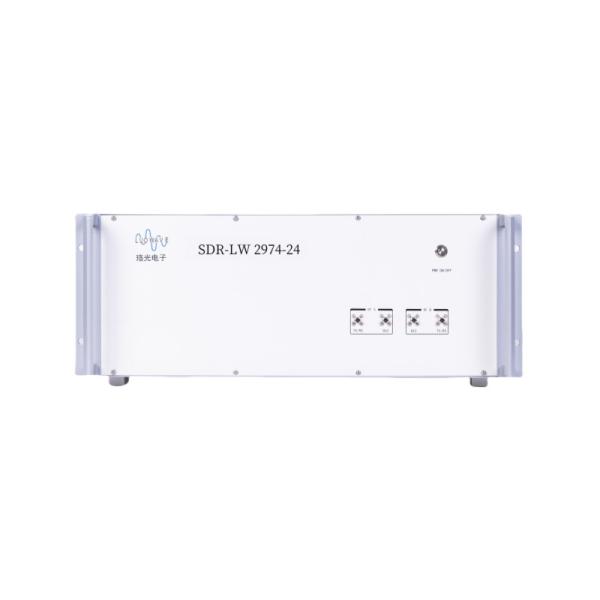

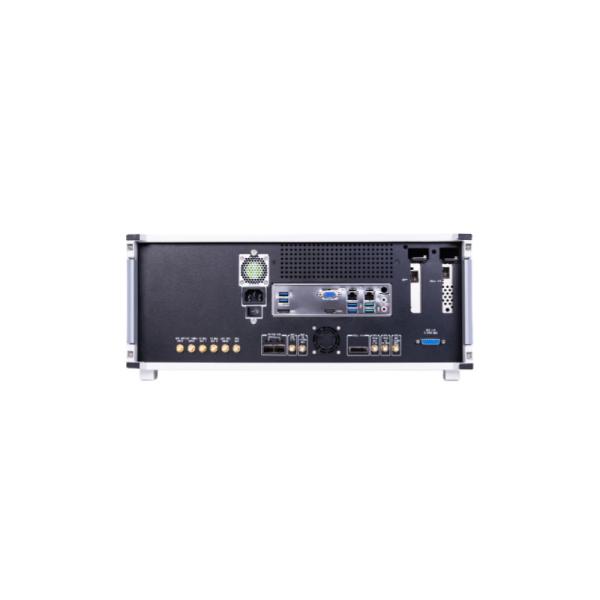

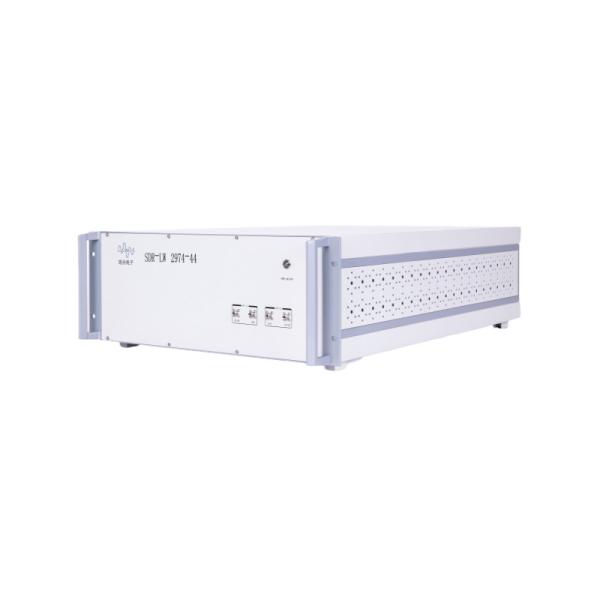

SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
SDR-LW 2974-24 | RF 10 MHz-24 GHz, 160 MHz BW Each, 2 Channels, 4 × USB 3.0, 2 × SFP+, 4 × PCIE BUS, i7 Processor, USRP Integrated Software Defined Radio Device
Specifications
Brand Name :
Luowave
Model Number :
SDR-LW 2974-24
Place of Origin :
China
Price :
$52,500.00
Frequency Range :
10 MHz-24 GHz
Bandwidth :
160 MHz Each
Channel :
2T2R
CPU :
Intel Core i7 9700
Connector :
USB3.0, Gigabit, 10-gigabit network port, PCIe, Gen 2 x4
FPGA :
Xilinx Kintex-7 XC7K410T
Weight :
18Kg
Size :
72.8*48.2*17.7 CM
Description

Overview

SDR-LW 2974-24 is a product developed by LUOWAVE based on the classic radio equipment SDR-LW 2974. The transmission and reception frequency of SDR-LW 2974-24 is increased to 24GHz. At the same time, it inherits all the functions and advantages of the predecessor. The SDR-LW 2974-24 is a high-performance embedded Software-Defined Radio (SDR) platform, ideally suited for prototyping a wide range of advanced research applications. These applications include the simulation of stand-alone LTE and 802.11 devices, development of Media Access Control (MAC) algorithms, implementation of multiple-input, multiple-output (MIMO) systems, design of heterogeneous networks, LTE transmission, RF compression sampling, spectral remote sensing, cognitive radio systems, beamforming, and direction finding.


Features

  • i7 processor
  • Linux real-time operating system
  • 4 USB 3.0 ports
  • JTAG interface
  • PCIe Gen x4 interface
  • Dual SFP+ interfaces
  • 500GB SSD, 16GB RAM
  • 10MHz-24GHz frequency coverage
  • Built-in Xilinx Kintex-7 FPGA
  • Support external reference clock and PPS signal reference
  • Support 2 transmit 2 receive, up to 160 MHz instantaneous bandwidth per channel


Supported Development Tools
  • GNU Radio
  • Matlab
  • Labview

Specifications




Transmit

Receive

Number of Channels

2

Number of Channels

2

Frequency Range

10MHz-24GHz

Frequency Range

10MHz-24GHz

Frequency Stepping

＜1KHz

Frequency Stepping

＜1KHz

Maximum

Output Power

19.5dBm

Maximum

Input Power

-15dBm

Gain Range

0-31.5dB

Gain Range

0-31.5dB

Gain Stepping

0.5dB

Gain Stepping

0.5dB

Maximum Real-time Bandwidth

160MHz

Maximum Real-time Bandwidth

160MHz

FPGA and Baseband

Industrial Computer

FPGA

Kintex-7 XC7K410T

Processor

I7 9700

DRAM

1G

Memory

16G

ADC Resolution

14 bits

SFP (10 Gigabit Network Card)

10Gbps

DAC Resolution

16 bits

PCIe card

PCIe Gen 2 x4

ADC Sampling Rate

200 MSps

RJ45

1Gbps

Environment

Power

Operating Temperature

0-50℃

Voltage

220V

Humidity

10%-90%

(non-condensing)

Current

3A Max

Physical Properties

Size (SDR-LW 2974-24)

72.8*48.2*17.7 CM

Weight

18Kg



Integrated SDR Comparison

P/N

Frequency Range

CPU

Max.Bandwidth

Channel

ADC/DAC

FPGA

Connector

Size(mm)

SDR-LW 2972

70MHz-6GHz

Intel Core i7 8700

56MHz

2T2R

AD9361
ADCs:12-bit 61.44 MS/s
DACs:12-bit 61.44MS/s

Xilinx Artix-7 XC7A 200T

USB3.0,RJ45

235*300*85

SDR-LW 2974

10MHz-6GHz

Intel Core i7 9700

160MHz

2T2R

ADCs:ADS62P48 14-bit,configurable sampling rate:184.32,200 MS/s
DACs:AD9146 16位,800 MS/s

Xilinx Kintex-7 XC7K410T

USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4

235*265*135

SDR-LW 2974 Note

430*300*135

SDR-LW 2975

70MHz-6GHz

Intel Core i7 8700

56MHz

2T2R

AD9361
ADCs:12-bit 61.44 MS/s
DACs:12-bit 61.44MS/s

Xilinx Zynq-7020

USB3.0,RJ45,PCIe,Genx4,HDMI

210*235*85

SDR-LW 3980

75MHz-6GHz

Intel Core i9-9900K

Tx:450MHz
RX:200MHz

8T8R

ADRV9009
ADCs:16-bit Max. sampling rate 245.76MS/s
DACs:14-bit Max. sampling rate 491.52MS/s

Xilinx Zynq UltraScale+ ZU11EG

USB3, USB2, PCIe 3.0 x8, Gigabit, 10-gigabit network port

280*410*175

SDR-LW 4940

1MHz-7.2GHz

Intel Core I9-9900K

400MHz

4T4R

ADCs:12-bit
DACs:14-bit

Xilinx Zynq Ultrascale+ ZU28DR RFSoc

1 × QSFP+, 2× RJ45, USB 3.0

430*378*145
