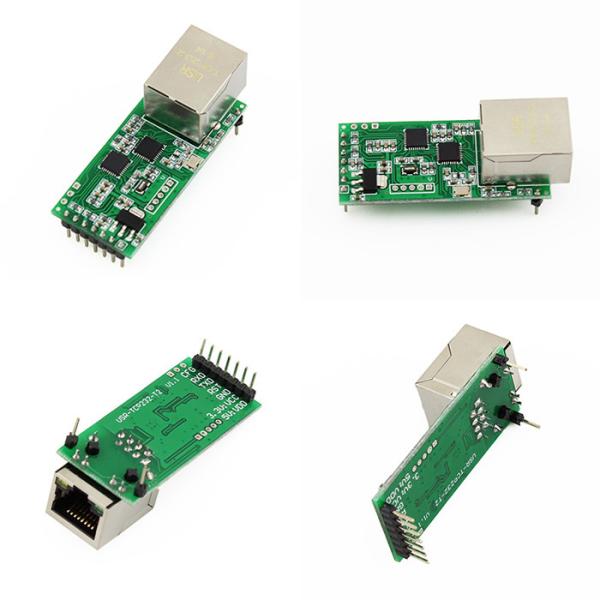

[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
[USR-TCP232-T2] TTL to TCP/IP Ethernet module with DHCP/Web page
Specifications
Brand Name :
USR
Model Number :
USR-TCP232-T2
Certification :
CE/FCC/Rohs
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,paypal,WU
Supply Ability :
10000PCS/Month
Delivery Time :
Within 1-5 days as per quantity
Packaging Details :
Standard package
Software :
For free
Item :
TTL Ethernet Module
Port :
TTL UART
Character :
DHCP/DNS
Description

[USR-TCP232-T2] Embedded TTL Ethernet Module

Unique Features:
1.DHCP/DNS
2.HTTPD Client
4. Built-in web page

Parameters:

  • Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
  • Support DNS function
  • Set parameters through webpage and serial AT command
  • Upgrade firmware via network
  • Auto-MDI/MDIX, RJ45 port with 10/100Mbps
  • Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
  • Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
  • Support virtual serial port and provide corresponding software USR-VCOM
  • Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
  • User-defined registration package mechanism, check connection status and use as custom packet header
  • Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
  • The global unique MAC address bought from IEEE, user can define MAC address
  • Restore factory default
  • Across the gateway, switches, routers
  • Can work in LAN, also can work in the Internet (external network)
  • Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS

Character:

System Information
Processor
ARM
Flash
32K byte
Ethernet
Port Number
1
Interface Standard
RJ45
Rate
10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection
2KV electromagnetism isolation
Network Protocol
IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer
Send: 6K bytes, receive: 4K bytes
Serial
Port Number
1
Interface Standard
TTL
Data Bits
5, 6, 7, 8
Stop Bit
1, 2
Check Bit
None, Even, Odd, Space, Mark
Baud Rate
600 bps ~ 460.8 Kbps
Flow Control
Null
Buffer
Receive: 800 bytes
RS-485 Pull-up and Pull-Down Resistor
Null, reserved 485 send-receive control pin
Software
Virtual Serial(USR-VCOM)
Windows 2000 or higher (32 bit/64 bit)
Configuration
computer set-up software, serial command, built-in webpage, AT command
Basic Parameter
Size
50.5 x 22.6 x 15.0 mm
Operating Temp.
-25~ 75°C
Storage Temp.
-40 ~ 105°C, 5 ~ 95% RH
Input Voltage
VCC DC 3.0V~3.6V
VDD DC 4.75~7.0V
Working Current
150mA (aver) / 160mA (max) @3.3V
150mA (aver) / 160mA (max) @5V
Power
<1W
More
Warranty
2 years
