Specifications
Brand Name :
USR
Model Number :
USR-TCP232-E2
Certification :
CE/FCC/Rohs
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,paypal,WU
Supply Ability :
10000PCS/Month
Delivery Time :
Within 1-5 days as per quantity
Packaging Details :
Standard package
Software :
For free
Item :
TTL Ethernet Module
Port :
TTL UART
Work Temp :
-40 ~ 85°C (industry)
Character :
DHCP/Modbus
Flow Control :
RTS/CTS
Description

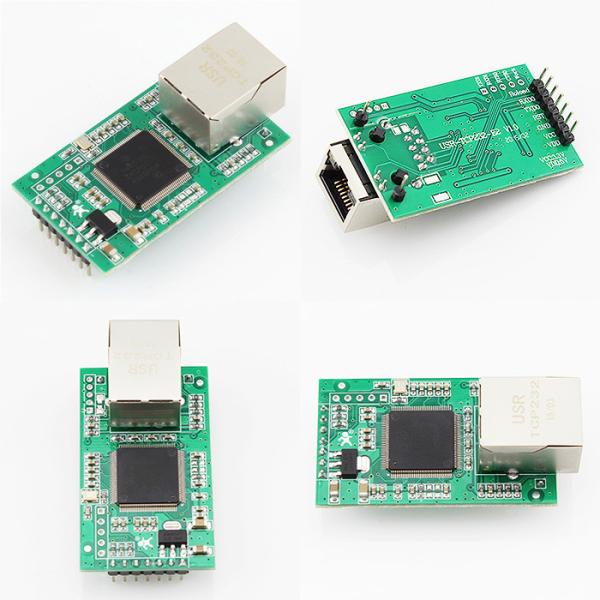

[USR-TCP232-E2] Embedded TTL Ethernet Module

Unique Features:
1.Modbus TCP - Modbus RTU
2.DHCP/DNS/Websocket/HTTPD Client
3. RTS/CTS
4. Customized Webpage

Parameters:

  • Cortex-M4 kernel,industrial working temperature range and TCPIP protocol stack.
  • Auto-MDI/MDIX,RJ45 port with 10/100Mbps
  • TCP Server,TCP Client,UDP Client,UDP Server and HTTPD Client work mode
  • Multi-ports can work independently at the same time
  • Can distinguish which serial port connects to the device via port number
  • Support virtual serial port and provide corresponding software USR-VCOM
  • Serial baud rate from 600bps to 1024K bps;Check bit of None,Odd,Even,Mark and Space
  • DNS and DHCP supported
  • Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS
  • Built-in webpage;also can customize webpage for users
  • Reload button,one key to restore default settings
  • RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
  • The global unique MAC address bought from IEEE (begin with D8-B0-4C);user can define MAC address
  • Support upgrade firmware via network
  • Support keepalive,rapidly detect dead links
  • Support account and password,can be used to page login and network settings
  • Support one channel Websocket,realize bidirectional transparent transmission bewteen webpage and serial 0
  • Support Modbus RTU to Modbus TCP
  • Support UDP broadcast function

System Information
Processor
Cortex-M4
Basic Frequency
120MHz
Flash
512K byte
Ethernet
Port Number
1
Interface Standard
8 pin RJ45 (with network transformer)
Rate
10/100 Mbps,MDI/MDIX,auto switch between cross and direct connection
Protection
2KV electromagnetism isolation
Network Protocol
IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Web socket, Httpd client
Receive Buffer
Max. 16k bytes buffer
Serial
Port Number
2 (2*TTL, can work at the same time)
Interface Standard
TTL: 2.54 pin 3.3V
Data Bits
5, 6, 7, 8
Stop Bit
1, 1.5, 2
Check Bit
None, Even, Odd, Space, Mark
Baud Rate
600 bps ~ 1024K bps
Flow Control
RTS/CTS
Buffer
Send and receive 2k bytes respectively
RS-485 Pull-up and Pull-Down Resistor
Null, reserved 485 send-receive control pin
Software
Virtual Serial(USR-VCOM)
Windows 2000 or higher (2 bit/64 bit)
Configuration
Built-in webpage, computer set-up software, serial command
Basic Parameter
Size
55 x 30 x 23.2 (including Ethernet port and pin)
Operating Temp.
-40 ~ 85°C (industry)
Storage Temp.
-40 ~ 105°C, 5 ~ 95% RH
Input Voltage
DC 3.3 / 5 V
Working Current
120mA @ 3.3V
120mA @ 5V
Power
<1W
More
Certificate
CE, FCC, ROHS
Warranty
2 years
Accessory
Null
