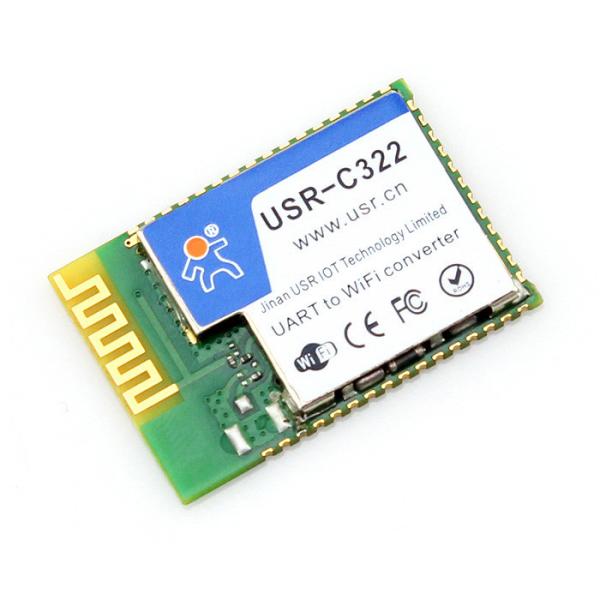

Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Industrial Low Power TI CC3200 Wifi Module with Internal/External Antenna
Specifications
Place of Origin :
China
Brand Name :
USR
Certification :
CE/FCC
Model Number :
USR-C322
MOQ :
1
Packaging Details :
Standard package
Delivery Time :
Within 1-5 days as per quantity
Payment Terms :
T/T,paypal,WU
Supply Ability :
10000PCS/Month
Software :
For free
Description

CC3200 Wifi Module Introduction

USR-C322 is a wifi module released by USR IOT,which has the features of minisize,low power and industry-grade. The hardware of USR-C322 wifi module integrates MAC,baseband chip, RF transceiver unit and power amplifier.

USR-C322 wifi module adopts CC3200 chip of TI,which has industrial ARM Cortex-M4 core and ultra-low power operation mechanism.And it supports WiFi protocol and TCP/IP protocol.User can achieve the function of UART devices connecting to Internet with simple configuration.

CC3200 Wifi Module Features

  • TI CC3200 Chip:TI chips;quality and delivery are guaranteed;based on ARM Cortex-M4 kernel;running frequency of 80 MHZ
  • Ultra-low power: Working : Min 3.5mA; Deep Sleep : Min 25uA
  • Open SDK:Support secondary development according to TI SDK and "USR" encapsulated SDK (C322 SDK is available in May,2015.)
  • Minisize: 18.22*26.65*2.8(mm)
  • High-speed UART:Max baud rate of 3M bps
  • Simplelink:one key access to WiFi
  • Double serials : two UARTs
  • Three links : three TCP links
  • Two encryption communication methods : PC1 Encrypt,SSL encryption submission
  • More functions : custom webpage,websocket,httpd client
  • No data loss

CC3200 Wifi Module Parameters

Category

Parameter

Value

Wireless Parameters

Certification

FCC/CE

Wireless Standard

802.11 b/g/n

Transmit Power

17.0 dBm @ 1 DSSS

13.5 dBm @ 54 OFDM

Receive Sensitivity

–94.7 dBm @ 1 DSSS

–73.0 dBm @ 54 OFDM

Antenna

External: I-PEX connector
Internal: on-board antenna

Hardware Parameters

Data Interface

UART

Operating Voltage

3.0~3.6V

Operating Current

Continuous TX: ~75mA
Normal Mode: Average: ~13mA,Peak: 200mA
Standby: Min 25uA
Working: Min 3.5mA

Operating Temp.

-40℃ ~ 85℃ (industrial)

Storage Temp.

-45℃- 125℃

Size

18.22mm*26.65mm*2.8mm

External Interface

SMT

Software Parameters

Wireless Network Type

STA/AP

Security Mechanism

WEP(ASCII format)/WPA-PSK/WPA2-PSK

Encryption Type

WEP64/WEP128/TKIP/AES

Update Firmware

Local Wireless

Customization

Support custom webpage

Network Protocol

IPv4, TCP/UDP

User Configuration

AT+command
Webpage
