25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
Specifications
Brand Name :
SHACMAN
Model Number :
SX3254JS384
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Cabin Model :
MAN F2000
Engine brand :
WEICHAI POWER, CUMMINS
Engine power :
340,345,375,380hp
Load capacity :
25-30 tons
Driving type :
6x4,6x6
Color :
White, yellow
Description

3 axles 25 - 30 tons SHACMAN F2000 Model 6x4 strengthened dump truck

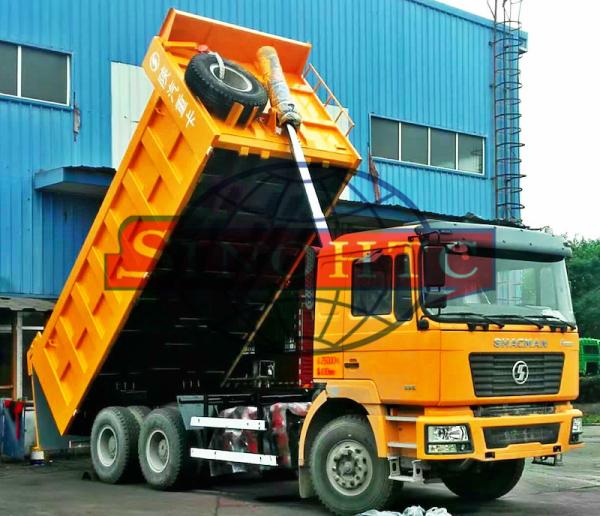

SHACMAN F2000 Model 6x4 strengthened Dump truck is a vehicle that is unloaded by hydraulic or mechanical lifts, also known as dumper or tipper truck. Consist of the chassis, hydraulic lifting mechanism, cargo box, power take off and other components.
Dump truck can be decided into backward tipping and side tipping.
Through the transmission and the power take off unit, the engine can drive the hydraulic pump. The hydraulic tipping mechanism consists of the fuel tank, the hydraulic pump, the distribution valve, the lifting hydraulic cylinder to the control valve and the tubing.
Through the transmission to force the device to drive the hydraulic pump, high pressure oil through the distribution valve, tubing into the lift hydraulic cylinder, pushing the piston rod to tilt the truck. By controlling the movement of the piston rod by the operating system, the carriage can be stopped at any desired tilted position. The truck is reset by its gravity and hydraulic control.
Tipper truck can be made from 4m3 to 50m3, 3 tons to 50 tons.

1. Chinese famous heavy duty chassis brand in China---Shacman
2. Low oil consumption with strong horse power 380hp
3. Large load capacity 25-30ton
4. LHD or RHD are optional

Traction type6×4
Drive SystemLHD
CabinF2000 Flat Cabin, one sleeper, Air Conditioner
EngineBrandWEICHAI
ModelWP10.380E32 EGR
Rated power380hp
Engine displacement9.726 liters
GearboxFAST 16 Speeds (16JSD200T)
Clutch430 Diaphragm type
SteeringZF technology
AxleFront9.5 Ton Man axle
Rear16 Ton MAN double reduction axle, ratio:5.92
Max. running speed (km/h)77
Tire12.00R20
Fuel tank400L
Kerb weight (kg)12100
Total mass (kg)25000
Wheel base (mm)3575+1400
Overhang (mm) (front/rear)1525/1530
Track (mm) (front/rear) 1939/1860
Approach / departure angle(°)20/20
Dump bodySize 5400x2300x1500(18.6m3)
Thickness Floor 8mm, side 4mm
Lifting systemMiddle lifting
Overall dimension8330x2500x3450mm

25 - 30 Ton 10 Wheeler Dump Truck SHACMAN F2000 Cabin Model 6x4 Driving Type
