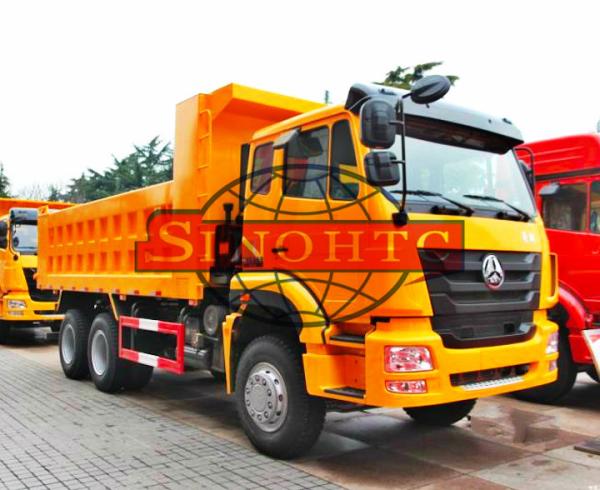

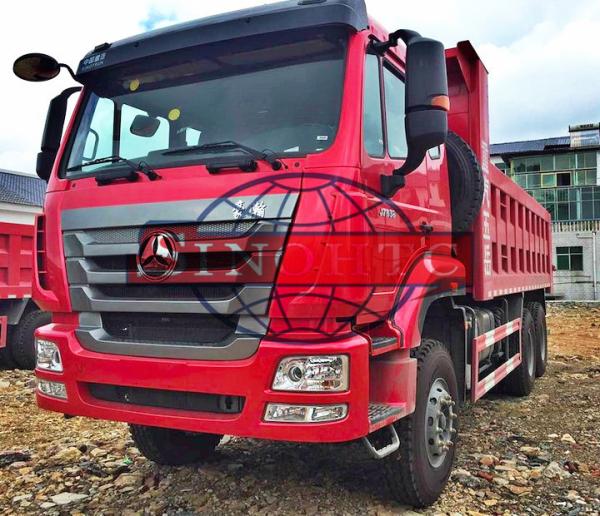

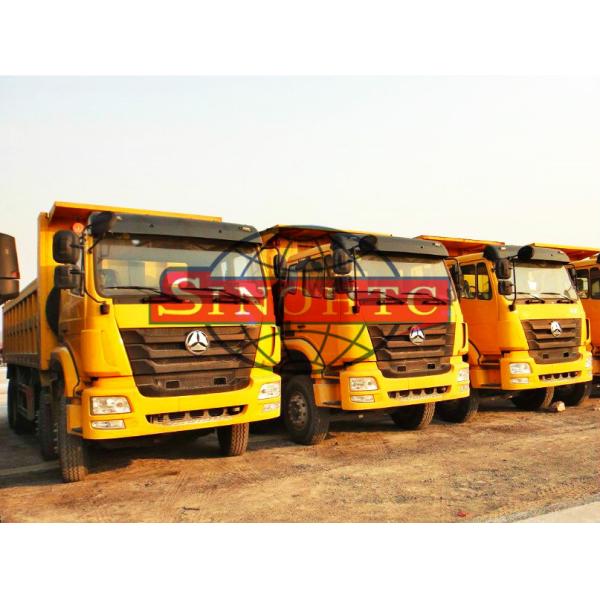

Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Heavy Duty Automatic Transmission Dump Truck MAN Engine Three Axles
Specifications
Brand Name :
SINOHTC HOHAN
Model Number :
ZZ3255N3646C1B
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Engine :
MAN
Truck Cabin :
HOHAN H17
Produced By :
SINOTRUK
Driving type :
6x4
Steering :
LHD,RHD
HS Code :
8704239000
Description

3 axles HOHAN Utility Dump Truck , Tipper truck HOHAN , MAN Engine Dump truck , MAN Engine Truck

Specifications:

Weight Parameter
Complete Vehicle Kerb Mass(kg)
12170

Maxim Umperissiblegrossladen Weight(kg)
25000

Gross Combination Weight(kg)

Dimension Parameter
External Dimensions(mm)
Length
8065

Wide
2496

High
3490

wheelbase(mm)
3425+1350

Minimum Ground Clearance(mm)
315

Performance Parameter
Maximum Speed(km/h)
78

Economical Speed(km/h)
58

Maximum Gradability(%)
58

Turning diameter(m)
15.7

Recommended
Engine
Engine Type
D10.27-31,D10.30-31,WD615.92E,WD615.97E

Rated power(kW)/Rev(r/min)
196/1900,211/1900,194/2200,209/2200

Maximum Torque(N*m)/Rev(r/min)
1190/1200-1500,1340/1200-1500,1100/1100-1600,1250/1200-1600

Gear-box
HW10,HW12,HW16

Clutch(mm)
430

Rear Axle
Type
AC16

Speed Ratio
4.77,5.45

Oil Box(L)
300

Chassis Cross-section(mm)
300

Suspension(Front,Back)
10/12

Tyre
11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 16PR

The choice of the dump truck or according to specific purpose to choose the appropriate type, because of the dump truck general work environment are hard, choose the brand with quality and excellent public praise is particularly important, high attendance truck is a good tool to earn money.

Specialist supply variou dump trucks, heavy duty dump truck. Our trucks have been widely used for construction site, mine area, sea port bulk transfer, earthmoving transport, garbage transfer station in the world. Competitive price, durable quality, comfortable driving experience,high safty, low consumption. Your best choice.

The choice of lifting type and lifting system

1. The general purpose self-unloading vehicle is recommended to select a tripod magnifying lifting mechanism, which has a history of 40 years in our country and is relatively mature in technology. It is suitable for a car with a length of 4~6 meters.

2. Reasonable arrangement, the force of each component will not exceed the bearing capacity of the parts, and the system oil pressure is small to ensure the service life of each sealing part;

3. Select high-quality hydraulic cylinder. The hydraulic cylinder is the power component of lifting the car, choosing the products with quality assurance.

4. A self-unloading car with a length of more than 6 meters is generally used in the top lift structure of the multi-stage cylinder;

5. The lifting structure of the double cylinder is generally used for a dump truck of 3 ~ 4 m.
