40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
40 T 2 Axle Low Bed Semi Trailer High Strength Steel Material 8 Pcs Tyre
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9402DPB
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Trailer type :
Low bed semi trailer
Axle No. :
2
Capacity :
>40 tons
Material :
Steel, High-strength Steel
Tyre No. :
8 pcs
Tyre model :
8.25R20, 11R22.5
Description

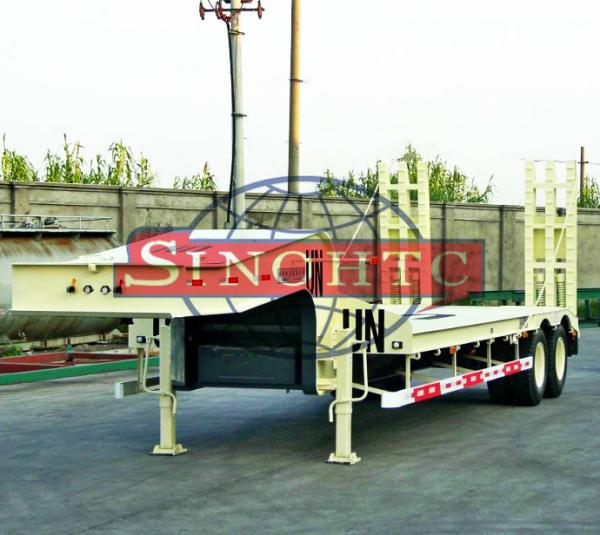

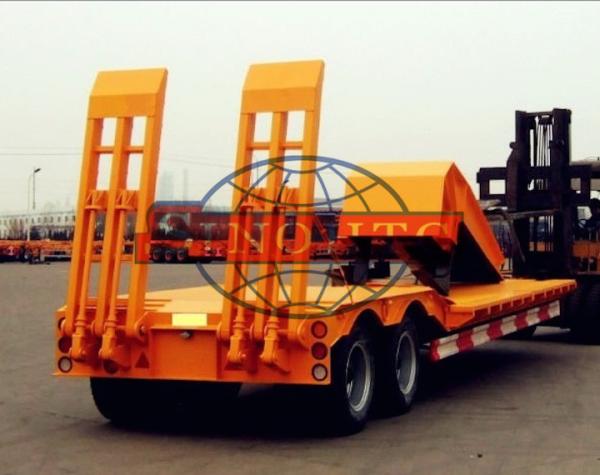

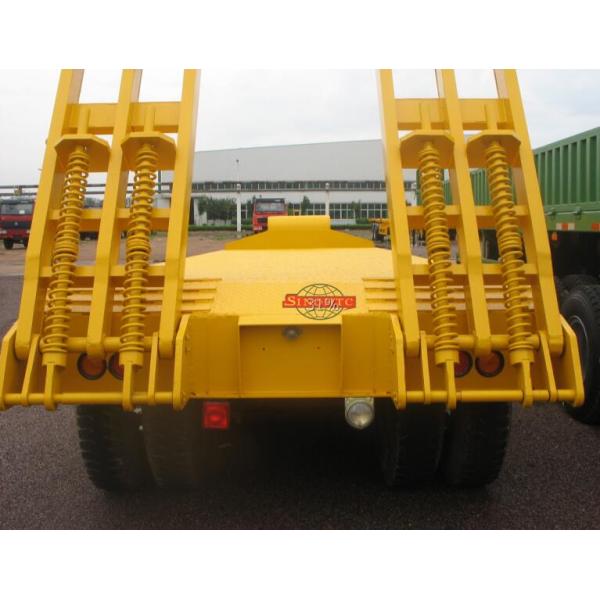

40 tons 2 axle Low bed trailer, dual axle heavy duty lowbed semi trailer, heavy duty lowbed trailer

our 2 axle Low bed trailer, can be used to carry all kinds of middle duty earth moving machineries,

Product Introduction
The low bed trailer series products can be widely used to transport large goods, engineering equipments, large tanks and equipments of power station.
The trailer is designed with the advanced software. It can be designed according to the requirements of customer, and to fulfill different kinds of transportation requirements.

Technical Advantages
1. It has the flat type, concave beam type and tyre appear type. The longitudinal beam uses the flat type or goose-neck type. The chassis is ladder type, longitudinal beam section is H-shaped. It has good rigidity and high strength.
2. The main platform is lower, to realize a stable transportation. It is suitable for transporting different kinds of engineering equipments, large equipments and steel structures.
3. This vehicle is using two or three axles balanced type, or rigid suspension, there is the balancer between the front and rear steel spring, and to match the same change of the front and rear spring comber and the same loading condition.

Specifications:

Trailer Model 2 axle Low bed trailer,
Function Tractor and excavator transportation

Overall Dimension

(L*W *H)(mm)

 11800*2500*1700
Tare Weight(KG) 6500
Loading Capacity(KG) 40 000
Axle Brand BPW/ 13ton
Axle Number 2
Suspension System Standard Mechanical suspension
Steel Spring 10/10/10 leaf spring suspension
Main Beam

The height of the beam is 500 mm,the

thickness of upper plate is16mm,down plate

is 18mm,middle plate is 10mm.
Floor 4mm

Tire Type

and Quantity

 .8.25R17 8units
Traction Pin 50# or 90#, removeable
Spare Wheel Bracket 2 pieces
Tool Box 1 Standard
Landing Gear Standard 28Ton, external
BrakingSystem Dual Line braking system (none ABS)
Brake air chamber Six big double air chamber
Electrical System

1. Voltage: 24v

2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core standard Cable.
Side Guard According to customer's requirement
Painting Optional(yellow,red,white,blue etc.)
Packing Polish with wax before shipping
