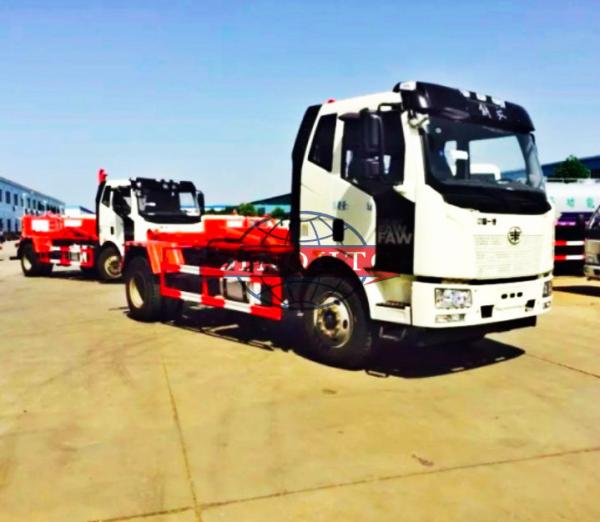

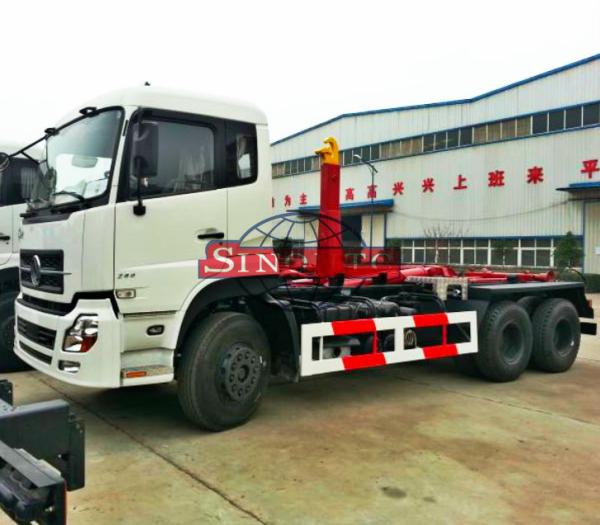

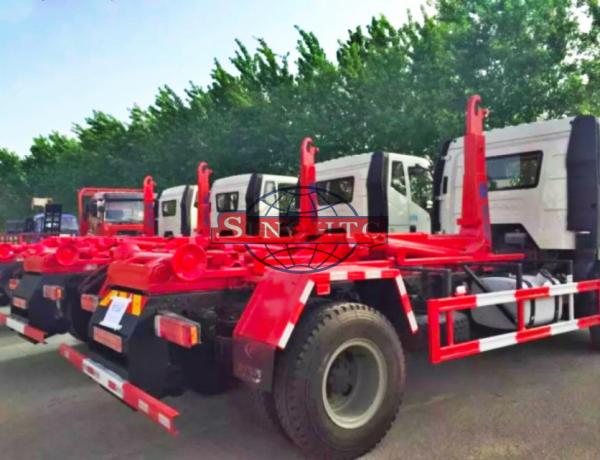

Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Hooklift Hook Lift Bin Waste Collection Trucks 10 - 15 Tons Capacity 4x2 Driving Type
Specifications
Brand Name :
SINOHTC
Model Number :
EQ1167
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Truck brand :
HOWO, DONGFENG, FAW
Driving type :
4x2, 4x4
Steering type :
LHD, RHD
Color :
According your request
Loading capacity :
10-15 tons
Garbage truck type :
Hooklift, hook lifting garbage truck
Description

4x2 hooklift hook lift bin garbage truck with 10 tons - 15 tons capacity

This 10-15 tons 4x2 hooklift hook lift bin waste removal trucks have many features:

1, Pull arm garbage truck box with Low-alloy channel on the 10th, the 16th square tube and 12mm, 8mm, 5mm, 4mm steel plate welded box with an upper bevel is designed to cover, easy to put in pull arm garbage truck filled and sealed after the cabinet at the same time as a whole is sealed, to prevent secondary pollution when the box moved.


2, Pull arm garbage truck hydraulic system
Pull arm garbage truck hydraulic manual hydraulic operation using multi-valve control, hydraulic valve control multi-cylinder operation. Simple and reliable operation, easy maintenance.

3, Pull arm garbage truck hydraulic system consists of tanks and filtration systems, pumps, multi-valve, one-way throttle valve, fuel tanks, tubing and other components. Power system from the engine, through the power take off PTO, PTO driven gear pump.

4, Pull arm garbage truck through the gear pump hydraulic oil filter in the hydraulic oil tank suction, multi-way valve (located outside the cab, the front portion of the trunk) oil. Multiple pull arm garbage truck valve work so when you pull the arm cylinder, lock cylinder generate action, does not work when the hydraulic cylinder, hydraulic oil through the multi-way valve directly back to the tank.

Item unit parameter
Truck model EQ1167
Chassis model CA1167
Overall dimensions mm 7420*2500*3050
Fact cubage M3 10
GVW kg Appro×16000
Rated loading capacity Appro×10000
Curb weight Appro×7280
Wheel base mm 4500
Max speed km/h 95
Engine Engine model CA6DLD-18E5
Displacement/power 6600ML/134KW
Manufacture FAW Xi Diesel engine
Max torque/speed @
Tire specification 10.00-20 transmission 6-speed with over drive
Traction system 4×2 Operation control system Electrically hydraulic control
Body size 4.5m*2.2m*1.4m(open top)
Thickness Side 3mm , bottom 4mm
container load time 50-60S
container unload time 40-50S
garbage unloading way lifting and dump
dump angle 50+/-5 degree
unloading time 30-40S
hydraulic system pressure 20-25MPa
Control way By manual and electronic , hydraulic control
