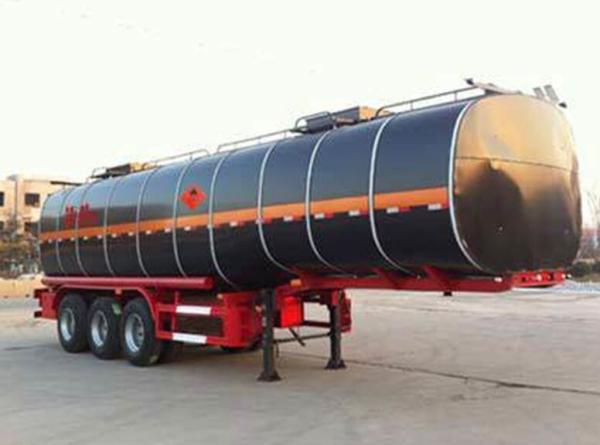

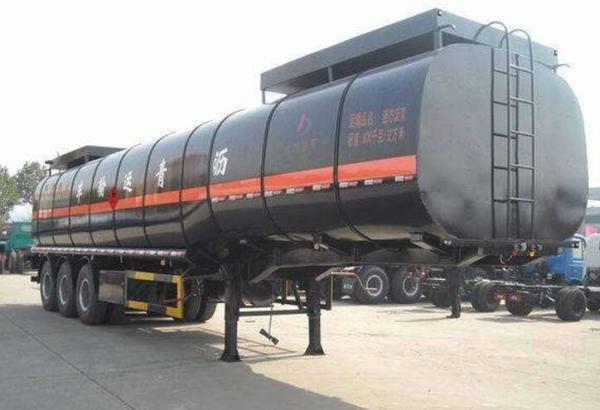

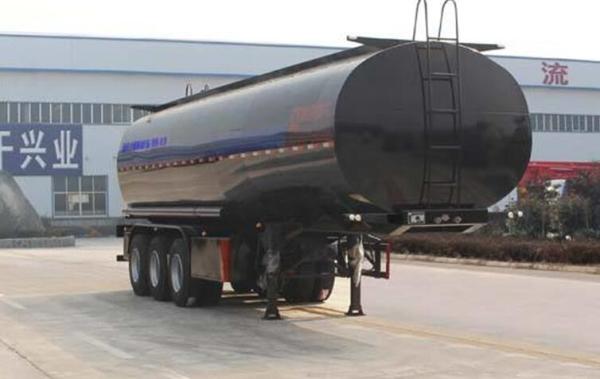

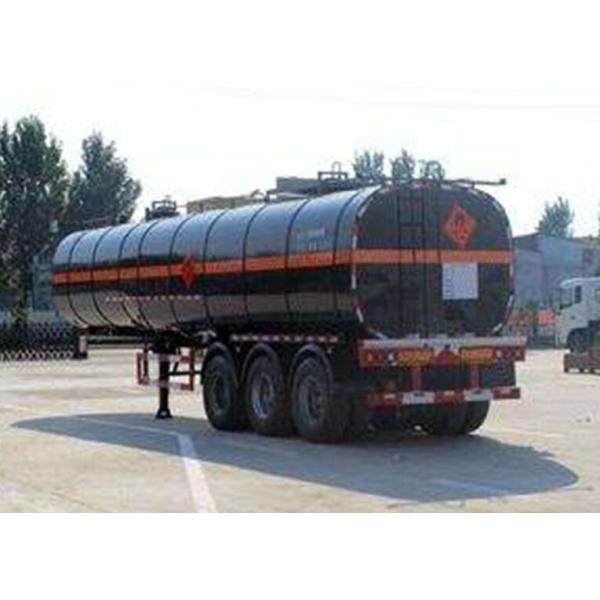

Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9409LQG
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Trailer type :
tanker trailer
application :
liquid Bituman,asphalt,pitch
function :
liquid Bituman,asphalt,pitch road transportation
Tank volume :
50 000 litres or customer request
tanker cover :
insulated
heating systerm :
diesel or electric
grade :
heavy duty
Description

3 Axle 35-60cbm Heating Asphalt Bitumen Tank Semi Trailer,heating pitch tanker trailer,heating asphalt tank trailer

This heating Bituman tanker semi trailer are used for transporting bituman,asphalt,pitch The design features fast unloading and low residue which can reduce operation cost.

Details specification

45 m3 heating bituman Tank Semi-trailer with Three Axles
Parameter Dimension(mm) 11900*2500*3540
Tare Weight(kg) 9500
Loading Capacity(kg) 40000
Tank Thickness 6mm
Bulkhead Thickness 6mm
Baffle Thickness 4mm
OEM Landing Gear 28T Baohua
King Pin 90#,assembled
Axle 2 units,13T Fuwa
Suspension spring suspension
Tire 8 units,12R22.5
Rim 8 units,9.0-22.5
Emergency Valve one 3''stainless steel
Ball Valve one 3''carbon steel
ABS 4S/2M
Electrical Voltage 24 volt
Receptacle 7 way
Front Marker Lamp White
Side Marker Lamp White and Red
Rear Lamp Red
Turn Signal Lamp Amber
Others Fire Extinguisher 2 units
Tool Box 1 unit,0.8m
Spare Tyre Carrier 2 units
Heating Asphalt Tank Semi Trailer 35 - 60cbm 3 Axle Insulated Tanker Trailers

Main Features

1). Insulated layer is used to prevent heat lose.

2). Oil burner which run on diesel or equivalent at the rear of the tank to keep temperature.
3). Globe valve with elbow at rear of the tank tp eusure all bitumen can be discharged.

4). Transportation with high efficiency

5). Strict testing of weld sealing

6). Tubeless tyre, high elastic, wear-resisting
