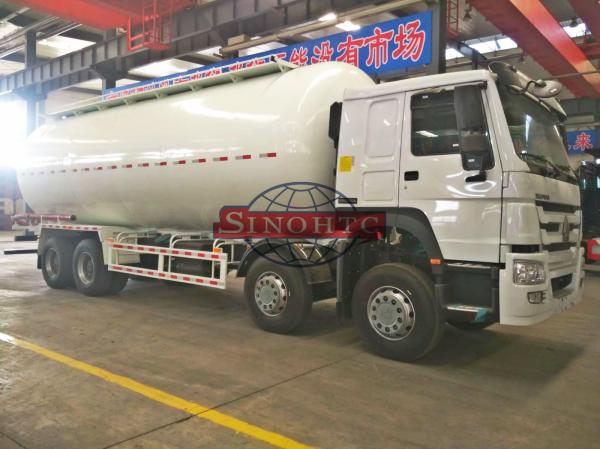

8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
Specifications
Brand Name :
HOWO
Model Number :
ZZ1317GYSN
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Tank type :
Dry chemical power, cement
Tank volume :
30 m3
Chassis driving :
8x4
Color :
White/ Red
Steering :
LHD,RHD
Load Capacity :
>40 tons
Description

30 m3 Bulk Cement Truck 8x4 heavy duty truck transport bulk cement

Main specifications:
1. Cab: Brand-new two seats with one bed or two beds

2. Drive mode: 8x4

3. Engine: WD615 series, 336hp; 371hp; 420HP

4. Emission standard: Euro II

5. Transmission model: HW19710; HW19712, 10/ 12 forwards & 2 rear

6. Tire: 12.00-20; 12.00R20; 12R22.5; 315/80R22.5

7. Tank volume: 30cbm

8. Working pressure: 0.2 MPA

Truck Brand SINOTRUK—HOWO
Driving type Left Hand Driving
Truck Model ZZ1317N4367w
Dimension(Lx W x H)(unloaded)(mm) 11500x2496x3800
Tank body dimension (L x W x H)mm 9300*2300
Tank volume 30m3
Compartment Single
Cargo body thickness(mm)

Shell cover: 6mm

Body:5mm
Working pressure 0.2Mpa
Unloading speed 1.1-1.3t/min
Others 6*5m convey hose with joint
Residual rate <2‰
Unloading height ≥25m
Air Compressor

WB-10.0/2-X1

Suzhou brand
External power discharge device Can be choose
Approaching angle/Departure angle(°) 16/10.5
Overhang(front/rear) (mm) 1500/2750
Wheel base (mm) 1800+4300+1350
Max speed(km/h) 92
Curb weight(kg) 14910
Loading Weight(kg) 31000

Engine

(Steyr technology, made in China)

 Model WD615.69/ WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
Fuel type Diesel
Horse Power, max(kw/rpm) 336HP/ 371HP
Emission EURO II
Fuel tanker capacity (L) 300
Transmission Model

HW19710/ HW19712

10/ 12 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake Engine exhaust brake
Steering system Model ZF8098 hydraulic steering with power assistance
Front axle HF7
Rear axle ST16
Color Optional
Tyre 295/80R22.5, 12.00R20
Tyre quantity 12 + 1 spare
Electrical system Battery 2X12V/165Ah
Alternator 28V-1500w
Starter 7.5Kw/24V
Cab HW76 cab, one sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

8x4 Heavy Duty Cement Bulk Carrier Truck 30m3 Tank Volume LHD / RHD Steering
