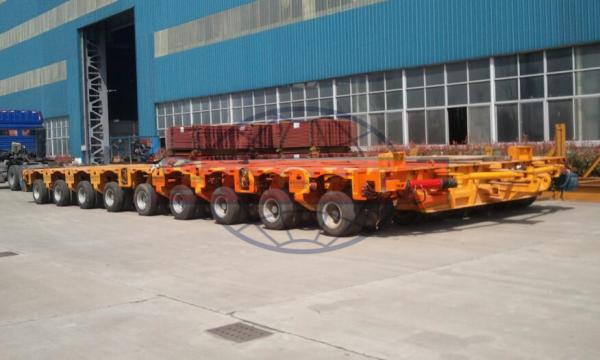

200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9902DPB
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
60 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Trailer type :
modular trailer
Axle No. :
multi axle
Capacity :
>200 tons
Material :
Steel, High-strength Steel
Tyre .size :
235/65R17
steering :
hydraulic
plateform :
hydraulic adjusting
Description

300 ton Multi axle Modular Trailer,Hydraulic Steering modular trailer Girder Transporter

this Multi axle Hydraulic Steering Modular Semi Trailer,is special desgin for big machine or equipment such as Girder,wind generater trannsportation on the road

Details Specification:

Hydraulic Gooseneck Modular Semi Trailer
Tech Parameter- Per 2 Rows Line-Axle Modular
Centerline Tare Weight 3.5T
Rated Capacity 45T
Suspension Stroke hydraulic + / - 300 mm
Basic module width 3.000 mm
Angle of rotation axis ±55°
The control system
Integrated into the central frame
Air cylinders
Oil tank
Hydraulic system Safety valves
Main beam Material AH60,40Cr
Main Parts Combinable heavy module 4 line-axles Combinable heavy module 6 line-axles
Outside Dimension 6000mm*3000mm*1750+300mm 9000mm*3000*+300mm
Axles / Tires 8 axles / 32 Tires 12 axles / 48 Tires
Total Dimension 15000mm+3700mm+700mm *3000mm*1750+300mm
Tire Size 215/75 R 17,5
Wheelbase 1500mm
Modules Connections Side-battle for different combinations. Axle units mounted on the frame by bolting
Equipment for Modular Combinations
Diesel Power Plant 22 KW
Hydraulic Pump 30 1/ min
Standard Shaft 3000mm long, flexible coupling ring, diameter 50 mm
Operating head 2 file combination
Wireless Remote Control Handheld operator panel / Transmitter - 1 piece
Hydraulic bolted connector 3 pcs
Braking system Dual line braking system with automatic air brake and ABS
Operating panel 1 pc with leveling system
Alarm panel 2 pairs
Flashing light 2 pcs
Tool Box 1 set of standard tools
Hydraulic Gooseneck
Rated capacity 35T
Pin 3.5-inch swivel pin
Control system Integrated dual-control system
Connectors Hydraulic and pneumatic
Taps 3 - 4 pcs
Other capacity with other dimensions optional

200 Ton Multi Axle Modular Trailer , Hydraulic Steering Girder Bridge Trailer

This modular trailer,is the special vehicle which used for the heavy duty machine or equipment transport ,
it can be assembled by customer request when you transport different machine or equipements
12x2 24 line axles 200 ton for long machine transportation,
24x4 or 13 x3 line 300ton for wide machine transportation.
even can be made by your needs.

BRIEF INTRODUCTION TO OUR trailer

1.CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise.
2.Small Order Can Be Accepted.
3.Any Color & Logo Available
4.The Product Dimension + Specifications Can Be Designed As Your Needs
