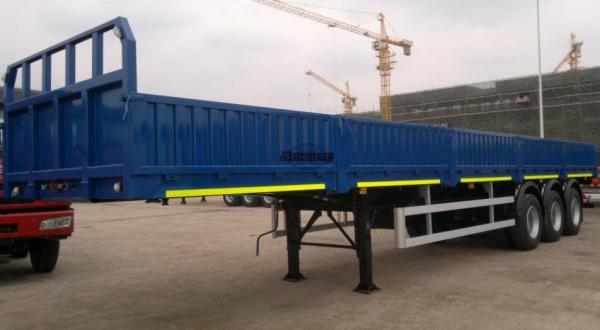

Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9602JSPLY
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
100 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Materail :
high-strength steel
Axle No. :
3
Capacity :
>50 tons
Sidewall height :
400-600mm
Tire :
12.00R22.5 tubeless
Color :
White/ Blue/ customer request
suspension :
air suspension
Description

50 tons 3-axle bulk cargo Container double using semi trailer, container bulk cargo trailer

Design:

Design drawings according to customer requirements.

Blanking:

After shot blasting, the raw materials will be processed by the CNC cutting machine

Welding:

Design the construction scientificallyto to ensurethe firmness and aesthetics of welding.

Painting:

Take Into the paint shop on the whole trailer painting to do anti-rust treatment.

Installation:

Axles,tires,ABS system and lights will be installed after painting.

Test:

Semi-trailer performance test before delivery.

Bulk Cargo / Container Semi Trailer 400 - 600mm Sidewall Height 50T Payload

13000*2550mm
side wall: 600mm closed, open downward
600+600 mm mesh, open backward
100mm interval space
intal side wall height 2000mm
each side 6 nos ratchets
front welded small ramp and canvas bracket,tarpaulin rod
detail refer to the confirmed drawing

13T FUWA, 220mm width braking pad
with 4S/2M ABS, made in China

50 tons 3-axle bulk cargo Container double using semi trailer, container bulk cargo trailer
No ITEM Unit Quantity MODEL
1 Axle piece 3 13T FUWA, 220mm width braking pad
with 4S/2M ABS, made in China
2 tyre piece 12 11.00R20, with a spare tire
3 rim piece 12 8.0-20
4 suspension set 3 standard mechanical reinforced type
5 leaf spring Set 6 10pcs, 90mm width, 13mm thickness
6 Kingpin piece 1 3.5" bolted type. JOST KZ1412
7 emergency relay valve piece 1 WABCO
8 landing gear set 1 28T two sides operation
9 cross beam W type, interval space 450mm
10 chamber 6 T30/30 4 pcs
30 2 pcs
11 electrical system set 1 plug 7 lines, 24 volt, LED lights.
Main Specification of Trailer
NO specification numerical value
1 overall dimension(L*W*H) 13000*2550mm
side wall: 600mm closed, open downward
600+600 mm mesh, open backward
100mm interval space
intal side wall height 2000mm
each side 6 nos ratchets
front welded small ramp and canvas bracket,tarpaulin rod
detail refer to the confirmed drawing
4 floor 2 mm flat
with 6 pcs 6.3# channel pad steel
5 spare wheel carrier 2 pcs, normal
6 upper and lower wing-plate thickness 10/10mm, width 146mm
7 side beam 140mm bending plate, thickness 2.5mm
8 height of the beam 500mm, web plate thickness:5mm
9 water tank 1500mm length, ∮550 location designed by the engineer
10 paint high quality paint, whole trailer waxed
11 color according to your required color code


• Carrying for bulk cargos, 1*40ft or 2*20ft containers or bulk cargos
