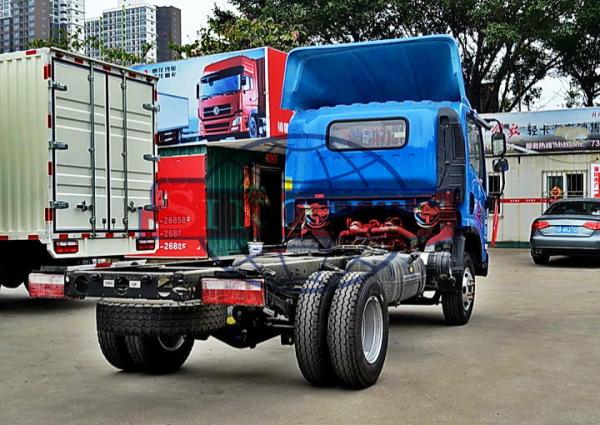

3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
Specifications
Brand Name :
FAW
Model Number :
CA1044
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Truck type :
Chassis
Could be mounted :
Crane, water tank, closed van...
Driving type :
4x2, 4x4
Engine power :
120,130hp
Steering type :
LHD, RHD
Color :
White/ Green/ Blue
Description

3 - 5 tons FAW 4x2 truck chassis could be mounted water tank or closed van

1. Type: CA1044P40KEA80
2. Cabin: Tiger V
3. Engine Model: CA498-12E3F
4. Emission standard: Euro 3
5. Power (KW): 120HP

6. Clutch model: 350mm, single plate, dry,
7. Gearbox Model: CA5TBX065M transmission.
8. Rear Axle: CA385 wheel reduction axle
9. Rear Axle speed ratio: 5.725
10. Wheel & tire: 7.00R16, Model 16Ply Rating.
11. Axle Base: 3260
12. Fuel Tank: 130L

Brand FAW
Model CA1040P40K2
Cabin one and a half
Whole vehicle
main dimensions
(mm)		 Truck LxWxH 5998x 2190 x 2690
Cargo body (LxWxH) 3800/4000 x 2000 x400
Driving type 4 x 2
Wheel base 3260/3560/3860
Wheel track(front /rear) 1564/1550
Min. ground clearance 213
Weight data
(kg)		 Curb weight 3570
Rated payload 5000
Persons in cabin 2
G.V.W 7765
Vehicle performance Max. Speed(km/h) 90
Max. Slope of climb (%) 25
Min. Turning radious (m) 9
Engine Engine type FAW CA498E3-12
Displacement 3.875
Rated power (kw/rpm) 120hp
Max torque (N.m/rpm) 245
Steering gear type POWER STEERING
Bake system Servirce brake and boosting type AIR brake
Park brake AIR brake
Anxiliary brake yes
Wheel & tyre size 7.00-16
Electric device Rated voltage 24V
Battery 6-QW-100MF
tag 5t cargo truck
truck
lorry

Overall dimensions Length: 5998mm
Width: 2190mm
Height: 2390mm
Front overhang(loaded): 1312
Rear overhang(loaded): 2416

Wheel base Front wheel: 1800
Rear wheel: 1800
Passing angle(loaded) Approach angle: 21
Departure angle: 13

Mass
Parameter Curb weight (kg): 3600
Gross truck weight: 7300
Max. Loaded weight: 4995
Cargo box dimesion: 4200/ 3850x2000x600Mm

3 - 5 Tons 4x2 Light Duty Truck Chassis For Water Tank / Closed Van Truck
