Specifications
Brand Name :
HOWO
Model Number :
ZZ5257N4341BJ
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Truck type :
Concrete boom pump truck
Transport :
Concrete
Truck Driving :
6x4
Boom Height :
37m,39m
Output capacity :
120m3/h
Cabin :
HW76 with A/C
Description

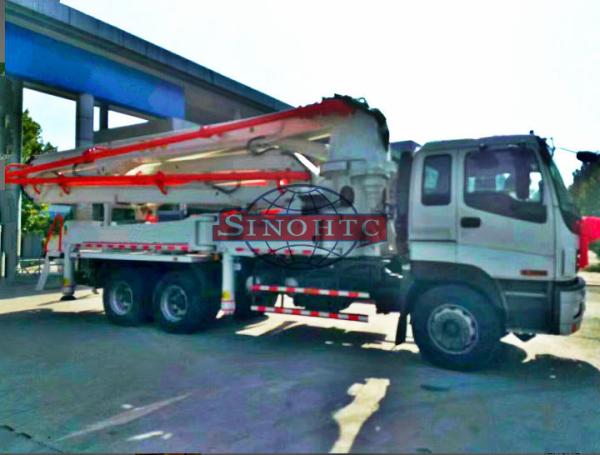

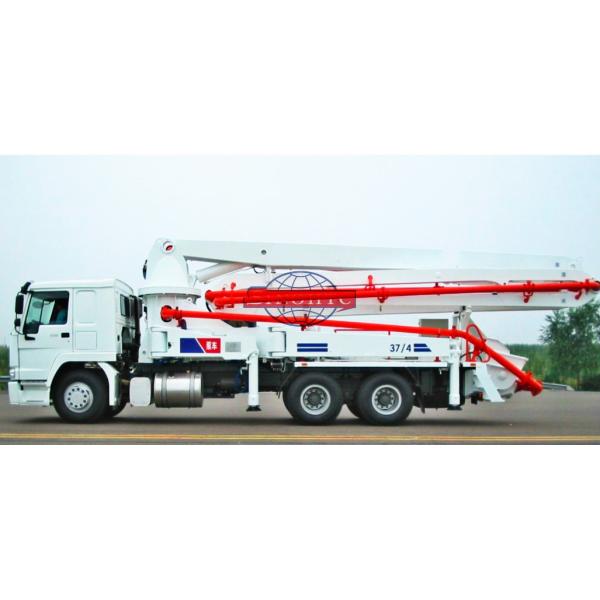

6x4 SINOTRUK HOWO 37m 39m Portable Boom Mounted Concrete Pump Truck

We could supply from 20m to 58m boom pump truck. Our Portable Boom Mounted Concrete Pump Truck are widely used in all kinds of situation. Our Portable Boom Mounted Concrete Pump Truck can make your work much smoother and safer. We have professional design team with more than 20years' experience of Concrete Pump Truck. We have all kinds of special purpose vehicle fit all work situation for you.

Superiority of HOWO 37m 39m Concrete Pump Truck:

• Equipment approach in place quickly

• Working Efficiently
• Control Automatic
• Mobility good
Concrete Pump Truck applicable occasions:
Urban construction, residential community, Sports and Exhibition Complex, highways, Railways, bridges, overpasses, airport

Concrete Pump Truck Limitations:
Larger construction site
High concrete requirements
Pumping height constrained by the boom length

Specification 37m
Overall dimensions(mm) 11830*2490*3870
Total Weight 26605kg
Wheel base
1-2 Axle / 2-3 Axle / (3-4 Axle)
4595mm/1310mm
Drive Type Hydraulic pressure drive
Concrete cylinder dia.stroke Φ230mm×2000mm
Valve Form S Valve
Theoretic pumping frequency(High pressure) 12 times / min.
Theoretic pumping frequency(Low pressure) 26 times / min.
Concrete theoretical displacement(High pressure) 76 m3/h
Concrete theoretical displacement(Low pressure) 120 m3/h
Theoretic pumping pressure(High pressure) 118Mpa
Theoretic pumping pressure(Low pressure) 6.38Mpa
Concrete slump 14~23cm
Maximum diameter of aggregate 40mm
Hopper volume 550 L
Hopper Filling height 1350mm
Manner of pipe cleaning Water washing/ dry cleaning
Maximum water pressure 40bar
Water tank volume 970L
Model :opened loop / closed loop Rexroth A11VLO190 /A2F023
Oil tank volume 900L
Cooling system Air cooling
Model HTC5257N4341BJBC
Drive manner 6x4
Chassis Manufacture SINOTRUK HOWO
Max.Speed ≥85km/h
creeping slope 38%
Minimum swerving radius ≤8.8 M
Tire Model/Quantity 295/80R22.5/ 12.00R20
Engine Model WD615.69
Number of cylinder 6
Max. Engine power 247KW/2200rpm
Max. Torque 1500Nm/2200 rpm
Engine emission standard Euro III
Boom vertical reach height 37.0m
Boom Depth reach 24.3m
Boom Horizontal reach height 32.7m
Boom rotation 361°
Angle between boom section 90/180/180/240

6x4 HOWO Cement Boom Truck , 37 / 39 Meter Boom Height Cement Pump Truck
