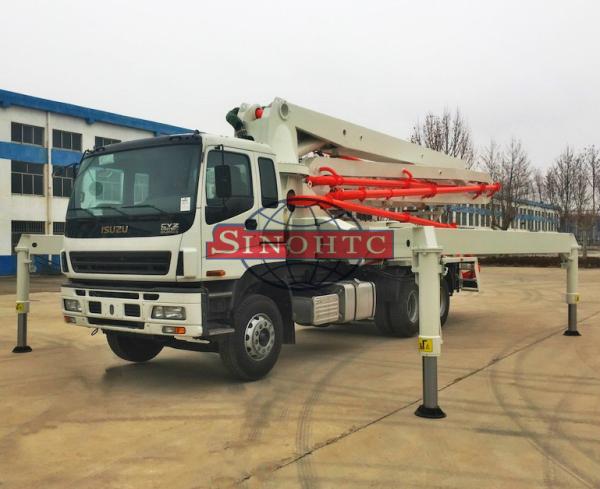

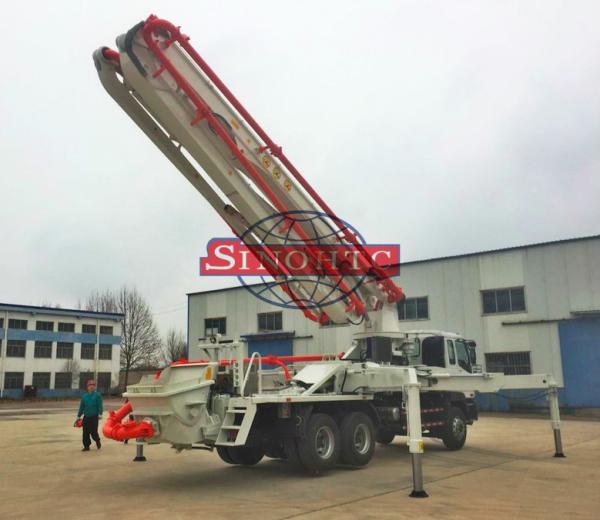

37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
Specifications
Brand Name :
ISUZU
Model Number :
HTC5281THB37X-4Z
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Truck Chassis :
ISUZU
Boom height :
37m 39m
Used for :
Concrete Delivery
Shipping by :

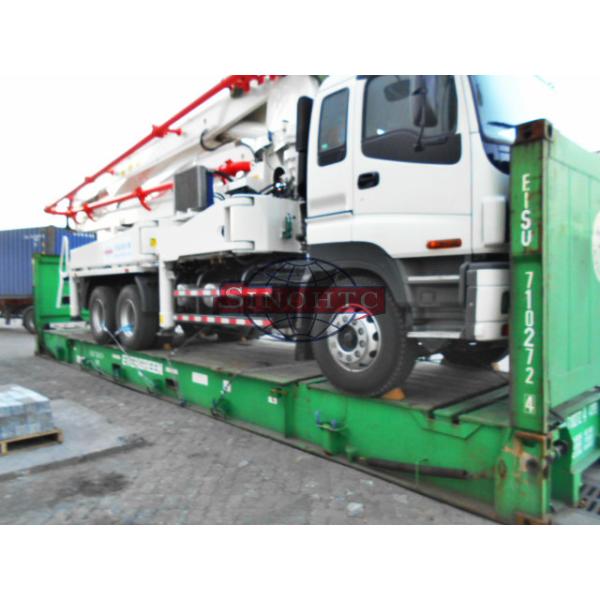

40'FR, Ro-Ro
Driving type :
6x4
Color :
White
Description

37m 39m Concrete Delivery LHD-Drive Isuzu Chassis Schwing Pump Truck

The concrete pump truck can be divided into large concrete pump truck and small concrete pump truck according to the length of arm frame.
The concrete pump truck is modified on the chassis of the truck, which is fitted with a motion and power transmission, a pumping and stirring device, a cloth device and other auxiliary devices.
The driving force of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the dynamic split box, and the hydraulic pump pushes the piston to drive the concrete pump. Then the concrete is transported to a certain height and distance by using the cloth rod and conveying pipe on the pump.
In addition to driving the pump truck, the engine of the concrete pump is also used to drive the pumping mechanism, the stirring mechanism and the cloth mechanism.
The power of each working device of the concrete pump truck originates from the automobile engine.
When the concrete pump truck works, the power of the automobile engine passes through the gearbox to the compartment, then passes through the transfer box to each hydraulic pump or the chassis rear axle.
When the driver issued a switch to the pump position of the instructions, pneumatic solenoid valve control on the transfer box on the cylinder to promote the fork, fork and then push the separation gear to switch to the pump position, while cutting the power to the rear axle, so that the car in the state of the vehicle. Conversely, switch to the driving position. Now the control of the pump is basically realized by the remote controller.

Model HTC5281THB37X-4Z
Pumping system Max. Theor. output m3/h 120
(/) Max. Theor. concrete output Pressure(high/low pressure) MPa 8
Rated working pressure MPa 32
(/) Pumping frequency(high/low pressure) min-1 26
Hopper capacity L 600
Filling height mm 1600
Hydraulic system type Open loop
Distribution valve S S valve
× Oil cylinder dia.×stroke mm Φ130×1900
×Concrete cylinder dia.×stroke mm φ260×1900
Hydraulic oil cooling Air cooling
Recommended concrete slump cm 12~23
Max. aggregate dimension mm 40
Placing boom Structure type 37X-4Z
Placing depth m 37
Horizontal distance m 34
Placing depth m 21
Slewing angle 365°
Pipe diameter mm 125
End hose length mm 3000
Min. height of opening placing boom mm 8500
(××)Outriggers span (front×rear×side) mm 6200×7200×8120
Chassis and the whole machine Chassis model CYZ51Q
Wheelbase mm 4600+1350,4575+1400
Engine type 6WF1A
Engine power kW/(r/min) 265/2200
Oil tank cubage L 400
Tail gas exhaust standard III
Total weight kg 29870
(××) Overall dimensions mm 12000×2490×3850
Others Lubrication mode Automatic lubrication
Oil tank volume L 400
Control mode +Manual+remote control
Maximum water pressure MPa 0.7
Water tank volume L 500
Pipe cleaning mode /Water cleaning/dry cleaning

37m 39m Concrete Transport Truck LHD Drive Isuzu Chassis Schwing Pump Truck
