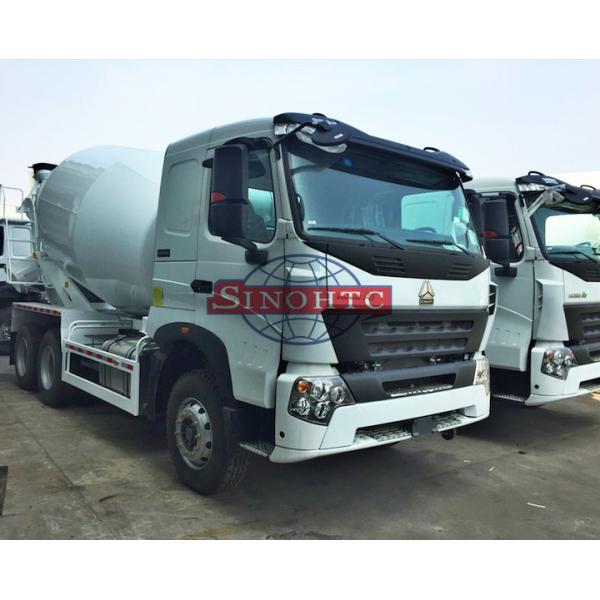

6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
Specifications
Brand Name :
HOWO
Model Number :
ZZ5257GJB9
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Tanker volume :
9m3
Tanker material :
High-strength steel, Q345
Cabin series :
HOWO A7
Steering type :
LHD, RHD
Truck driving type :
6x4
Engine power :
336hp/ 371hp
Description

6 x 4 HOWO A7 concrete mixer trucks mounted 9 m3 concrete mixer drum

HOWO A7 concrete mixer trucks mounted 9 m3 concrete mixer drum Trucks Advantages:

1. Fast unloading speed, 0.43cbm/ R, conventional 0.35cbm/r, 19% higher than the average product

2. Mixing evenly, special blade spiral design, to achieve three-dimensional mixing of concrete, mixing evenly, no segregation, (no segregation, determines the quality of the building works)

3. complete discharge, the residual rate is 0.4%, the average product is 0.6%, 33% higher than the average product

4. Mechanical agitation use wear-resisting material, in the easy wearing part uses the wear-resisting material to strengthen, generally the tank body uses 5-8 years
Quick feeding and unloading, mixing evenly, no segregation, complete discharge, low residual rate, good after-sales service, large loading capacity.

Overall Dimensions
9780mm*2496mm*3990mm(L*W*H)

Tare Weight
13950kg
Payload
35000kg

Front Overhang
1500mm
Rear Overhang
2880mm

Wheelbase
3800mm+1350mm
Track (F/R)
2022mm/1830mm

CHASSIS

Chassis Brand
SINOTRUK HOWO

Chassis Model
ZZ1257N3847W, driving type 6x4

Cab
HW76, left hand drive, air-conditioner, one sleeper

Engine
SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L

Transmission
HW19710, No. of speeds: 10 forward 2 reverse

Steering
German ZF8098, turning system pressure 18MPa

Rear Axle
HC16 tandem axle, rated load 2x13ton, ratio 5.73

Wheels and tires
Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel

Brakes
Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake

6x4 Cement Mixer Truck 9m3 Volume HOWO A7 Cabin Series 336 / 371hp Engine Power
