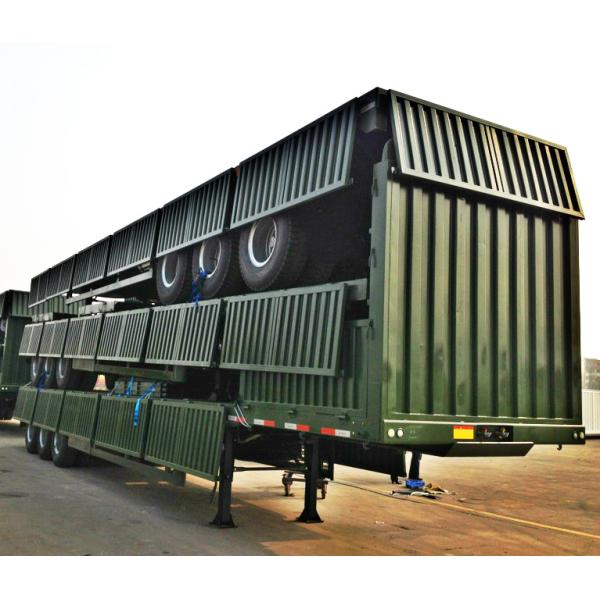

50 Tons 3 Axles Side Wall Semi Trailer , Utility Heavy Duty Cargo Semi Trailer
50 Tons 3 Axles Side Wall Semi Trailer , Utility Heavy Duty Cargo Semi Trailer
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9401JSLY
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Materail :
Carbon steel, high-strength steel
Axle No. :
3 axle, 2,4 optional
Capacity :
>50 tons
Tyre No. :
6, 12
ABS :
Optional
Color :
According your request
Description

50 tons 3 Axles Utility Cargo Trailer, Cargo fennce Trailer, Sidewall cargo Trailer

Specifications:

3 AXLE SIDE WALL CARGO TRAILER
DIMENSIONS
Tare weight 9300kg
Size 12600mm*2500mm*2700mm
Payload 50T
Main beam Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm
Side beam 16# channel steel(Q235)
Cross member 10# channel steel(Q235)
Floor 1.5-3mm checkered plate
Side wall Height 600mm thickness 1.5mm
Front board Height 1.5m
Axle 3 axle FUWA brand 13T
Suspension Mechanical suspension American type local brand
Leaf spring Leaf spring 10pcs*90*13mm
Tire 12R22.5 double star brand 12pcs
Wheel rim 9.0-22.5 better brand 12pcs
Kingpin JOST brand 2" bolt-in king pin
Landing gear JOST brand two-speed, manual operating ,heavy duty landing gear 24T
Twist lock Optional (8,12 sets)
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS Optional
Light LED 8 side lights and 2 rear lights 2 width lamp
Painting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
Accessories One standard tool box one spare tire carrier one crank one shaft head wrench four side light two rear light

Our Product Advantages

Our cargo trailer with Excellent Quality and good service,

50 Tons 3 Axles Side Wall Semi Trailer , Utility Heavy Duty Cargo Semi Trailer

The whole body adopts steel with good quality, and be manufactured by advanced skills and strict producing managerial processes.

The frame is wearing structure, webs made from manganese plates from 400mm to 550mm high

welded the upper and lower flangeplates together,and the beam runs through the longitudinal beam makes the two parts a very strong unit by automatic submerged arc welding.

Frame using peen-forming processing.
