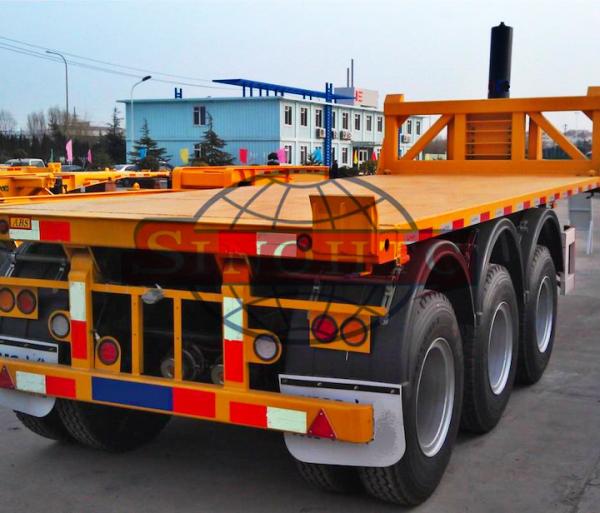

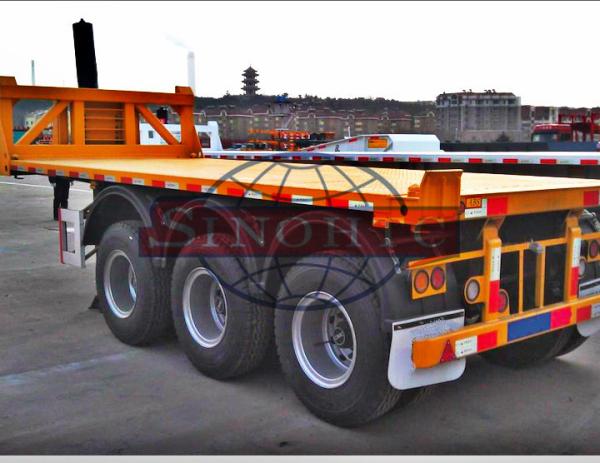

Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9401PBLZ
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Axle No. :
3
Axle Brand :
FUWA,
Capacity :
>40 tons
Used for :
20ft,
Vehicle Light :
LED
HS Code :
870193100
type :
dump trailer
Description

3 Axles 20FT Skeletal/Flatbed Dump Trailer/Tipper Semi Trailer/tri axle container dump trailer

Specifications:

Manufacturer Name QINGDAO HETANCH TRUCK CO.,LTD
Type CONTAINER dumping trailer
Weight:
Tare Weight 7.85T-8.5T
Payload 30T-60T
Axle Weight Load 14T per axle
Specification:
Axle number Two or Three
Axle specs. FUWA /BPW brand
Suspension Mechnical suspensions
King Pin 50#/90#
Dimensions
(LxWxH)		 1000/11000/12000/13000× 2480/2500× 3040mm(Outside)
9800/10890/11800/12800× 2270/2300× 1500mm(Inner)
Rim 9.00/8.00

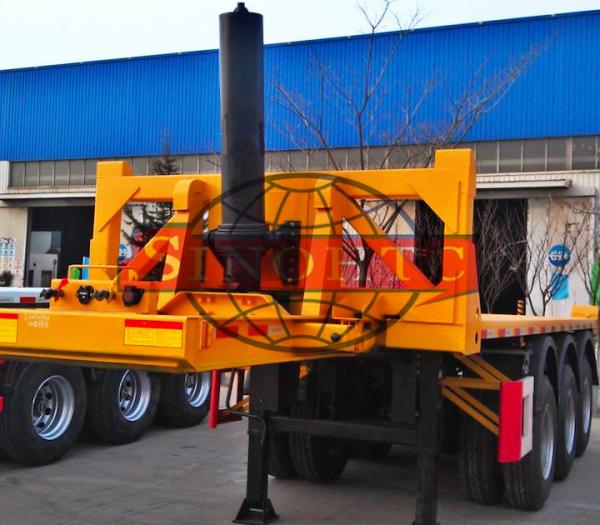

Lifting system Four or five ø 125lifting cylinders, one piece of ø 140displacement cylinder
Steel Spring 10pieces
Tire:
Tire specs. 12R22.5-18/11.00R20-18
Number of Tire 8/12pieces
Spare Tire Carriers 1/2 pieces
Frame: (specs. and materials) Main frame is height 450/500mm , .
Frame Beam Upper plate is 14mm, lower plate is14/16mm, middle is8/10mm side beam is 16# U-steel. left side: 3 or 4 pcs French door; Right side: 3 or 4 pcs hanging door. With19 pcs lock bar.
Frame Floor The Thickness is 3mm flat bed
Brake: Two double and three double chamber
Electrical: 24V 7 ways(7 wire harness)
Light color:
Side marker lamp Orange
Rear lamp Red
Turn signal lamp Orange
Landing Leg support: 28T
Miscellaneous:
Painting Accordingly
Tools box One pieces or According to the buyer

Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer

2/3Axles Hydraulic Lift skeleton Tipper Chassis/Rear Dump Trailer/20ft 40ft Container Tipper Flatbed Semi Trailer

Quick Details

Use:Container Tipping Trailer Type: Container Semi-Trailer

Material: Steel Certification: BV SGS

Size: Buyer's Request OEM No.: 20ft tipping container trailer

Max Payload: 40T Place of Origin: Shandong, China (Mainland)

Brand Name: SINOHTC Model Number: container flatbed dump trailer

Axle:13 Ton Fuwa Brand Tire: 12.00R22.5

Suspension:Mechanical Suspension Landing Gear:Standard 28 Ton

King pin:2"(50mm)or3.5"(90mm) JOST Color: Customer's Request

Product name: Self unloading 40ft Container Flatbe
