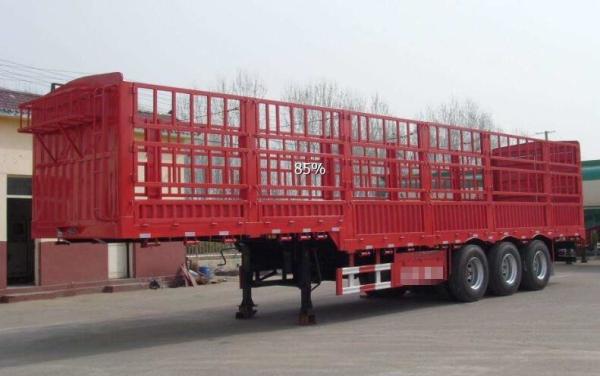

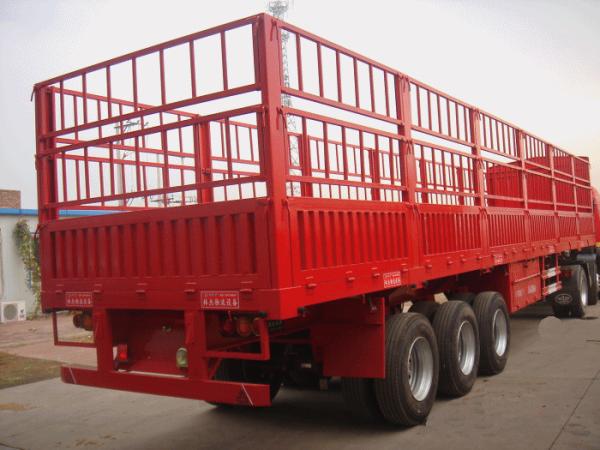

40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material
Specifications
Brand Name :
SINOHTC
Model Number :
HTC9401BCLBG
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Trailer Condition :
new,
Axle No. :
3 axle, 4 axle optional
Color :
customer request
Material :
high strenthen steel
HS Code :
8716391000
Capacity :
>60 tons
tire :
12R22.5
Description

40 tons 3 Axle Side Wall Trailer Fence Semi Trailer ,Cargo Flatbed Semi-Trailer with side rail

Specifications:

3 axle Side Bar Fence Truck Cargo Bulk Stake Semi Trailer,Livestock Animal Transport Trailer
Model Axles/ Tires
HTC9100GYY 2 axles/8 tires 3 axles/12 tires 4 axles/16 tires
Rated Capacity 30T 60T 100T
Place of Origin Shangdong province, China
Color Any color will be available
Rated Load 30000 kg-65000kg
Tare Weight 5000 kg-7000kg
Axle Brand 13Tonnage
No. Of the Axles 2
Pieces of leaf-spring 10
Suspension Heavy Duty Leaf Spring
Material of the Main Beam Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm , through cross beams Q235, Side Beam: 160 mm
Upper flange : 16mm, Mid web : 10 mm, Lower flange: 18mm
Sidewall Height 1800 mm / 3mm thickness
Brake System Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber Four double and two single chamber
Electrical System 24V, 7core socket, lights according to European standards.
Floor 3mm management plate
Tool Box 1 box of standard tools
Spare tire carrier 2 sets
Color and Logo Depends on the buyer's requirement.

Others: Other Size/dimension or configurations will be available by customeri-zation.

40 Tons Side Wall Livestock Semi Trailers Three Axle High Strenth Steel Material

FUNCTIONS

1. This series stake semi trailers are mainly used in the agricultural products, and bulk cargo transportation.
2. The rated capacity varies widely from 40Tons to 80Tons, and the dimension different from 7000mm to 18000mm, we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The side wall height and side or back door numbers and opening ways have several options for your better usage.
