Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Heavy Duty Beiben Dump Truck , 20 - 30 Ton 6x4 Other Cubic / 20 Cubic Tipper Truck
Specifications
Brand Name :
BEIBEN
Model Number :
ND2534
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Brand :
BEIBEN, POWER STAR
Driving type :
6x4,6x6
Color :
Red, blue, orange, white
Engine :
STEYR WEICHAI 340HP/ 380HP
Axle :
BENZ Tech
HS Code :
8704239000
Description

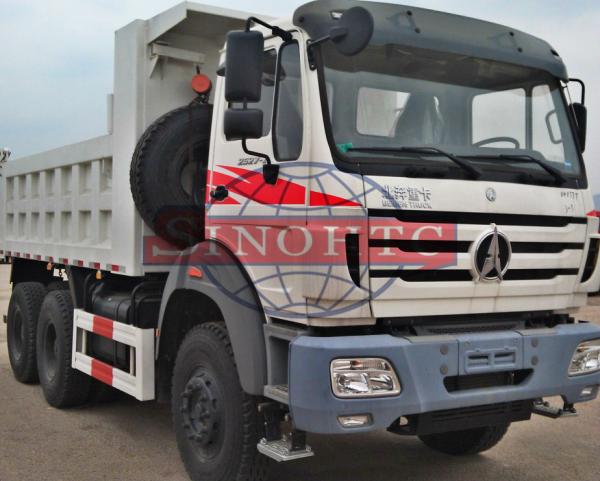

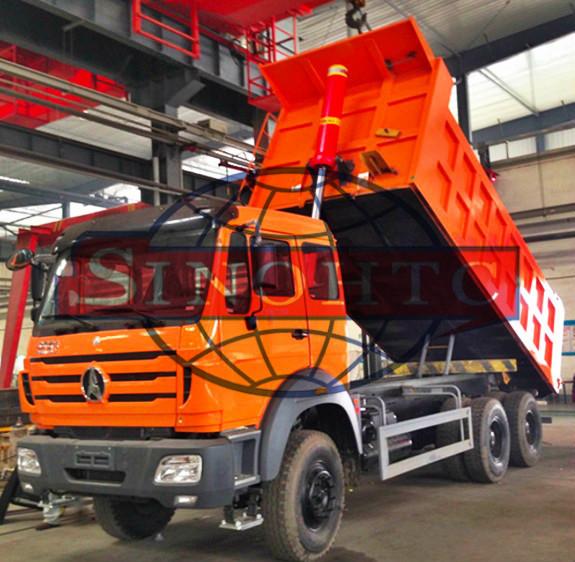

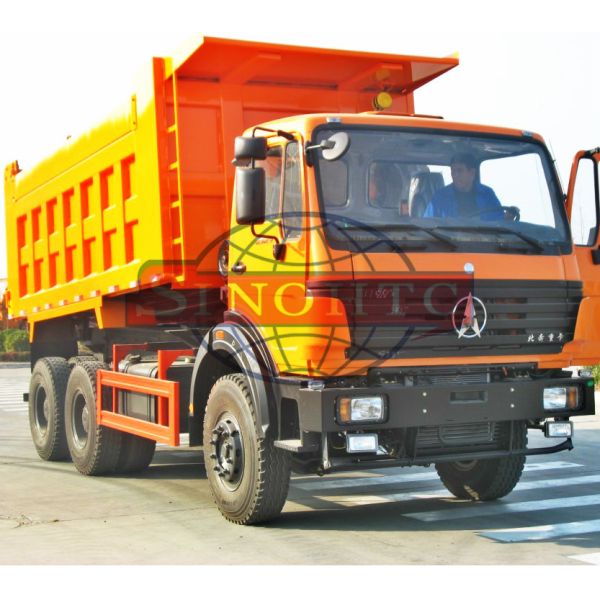

3 axle BEIBEN Heavy Duty Dump Truck , 20 - 30 Tons POWER STAR Tipper truck , 6x4 BEIBEN Truck

This 20 - 30 Tons 6x4 BEIBEN Tipper, have 290hp / 340hp / 380hp engine for optional. The engine and gearbox technique are from STEYR. The cabin, frame and axles technique are from BENZ. Africa clients like to call it POWER STAR.

Specifications:

10 TYRES BEIBEN Tipper truck / dump truck 2634K 6x4 truck

Wheel base (mm)
3800+1450 wheel

Model
BEIBEN --2534K

Curb weight kg
12160

Engine
Model
WP10.340E32 WEICHAI Engine

Power,
max CV/rpm
340/2200

Emission standard
EUROIII

Fuel tanker capacity L
300

Clutch
Model
GFX420, Single dry frictional disc,
Hydraulic boosting

Gearbox
Model
RT11509C (9+1 gear) or
9JS150A

Brake system
Service brake
Brake gap can be adjusted automatically,
double circulation air brake system

Assistant brake
Engine exhaust brake

Park brake
Potential springs pressing on middle and
rear wheels.

Steering system
Model
TAS85

Frame of vehicle
Fish belly shape, variable width, variable section side beam structure

Front axle
(Mercedes Benz
Technology)
Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle
(Mercedes Benz
Technology)
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double
reduction driving axle, ratio:5.921 or 5.2

Tyre
12.00-20 /1200R20/ 315/80R22.5 /1200R24

Electrical system
Battery
2X12V/135Ah

Generator
28V-35A

Starter
5.4Kw/24V

Cabin
Short cab without bed ,left handed, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure.

Overall dimension
8530*2500*3410mm

Nominal loading
12710Kg

Truck Body		 15CBM,18CBM,20CBM
Suspension : Strength 13 pcs steel spring and 4 U bolt , desert air filter.

Color
Orange or white.

Our Product Advantages


(1) Regularly callback to know the vehicle's working status.
(2) Export to more than 30 countries and regions
(3) One year quality guarantee or within 30000km, which comes first.
(4) Perfect after-sale service
(5) Products Quality Certification SGS CCC ISO
