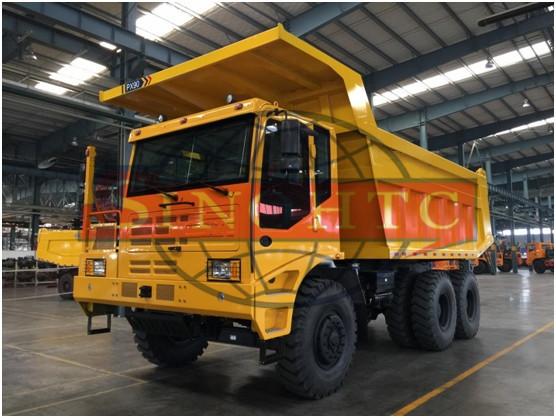

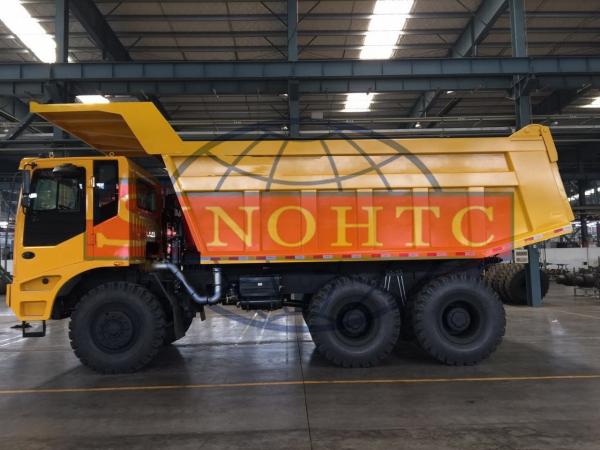

90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
Specifications
Brand Name :
SINOHTC
Model Number :
HTC90APX
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
50 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
type :
rigid dump truck
area :
mining site
Capacity :
>90 tons
Engine :
460HP
transmission :
AMT
Steering :
Power-assistant, LHD/ RHD
dump body :
5800x2900x1600MM
cab :
single side cab
axle :
3 axles
Description

90 ton 3 axles Rigid Dump Truck, Mining dump Truck with Allison AMT gearbox

This Mining Dump Truck is popular in Africa, South-east Asia, especially in the mining site, it have very good performance.

specification

Truck Model: HTC90A
Driver Cabin: SINGLE CAB
Engine/horsepower: CA 6DN1-46E3 / 460HP
Gearbox: Allison4500
Steering: ZJ120
Front/Rear Axle: 19T / 35T double reduction axle
Chassis frame: mm , 450*130(16+14)
Tipper body dimension(mm): 5950*3310*1750
tipper body Description: Floor 16 side10mm Mn steel ,HYVA 196 cylinder
Other specification: 16.00-25 28PR mining tire
Front/Rear Overhang : Mechanical spring
Front/Rear Axle Leaf Spring 100*20*13,120*32*13
Brake system: Dongjiang brand
others: Three level air filter, exhaust break
Tare weight(kg): 30000
Max weight(kg) 60000
Gross weight(kg): 90000
Overall Dimension(mm): 9100*3500*4100
Max speed(km/h): 51
Min. Ground Clearance(mm): 435
Min turning Radius(m): ≤10
Max grade ability(%): 41
Approach/Departure(°): 33/45
Wheelbase(mm): 3750+1690
Wheel track front /rear (mm): 2793, 2580
Max torque(Nm)/rotate speed(r/min): 2100/1150-1350
Fuel tank(L): 600L

90 Ton Rigid Heavy Duty Dump Truck With Allison AMT Gearbox Tri Axles
