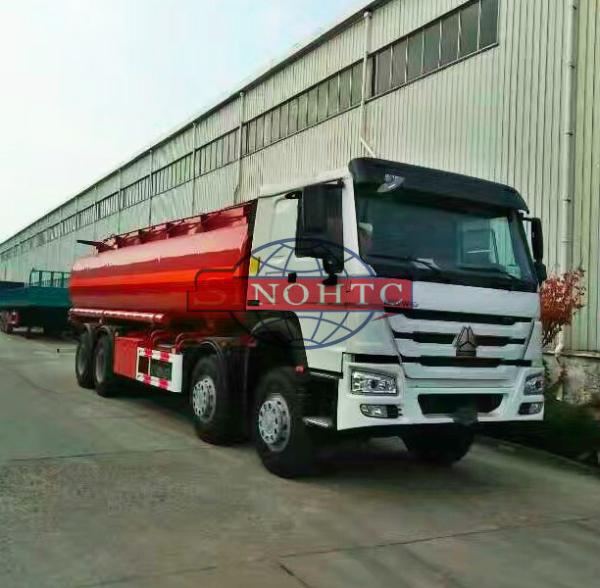

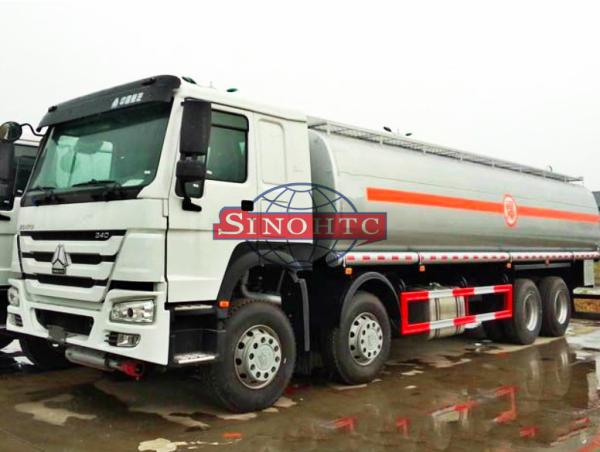

8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
8 X 4 HOWO Oil Tanker Truck For Loading Fuel / Gasoline 6000 Gallons Volume
Specifications
Brand Name :
HOWO
Model Number :
ZZ5317GYY
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Cabin Series :
HOWO 76
Driving type :
8x4, 10x4 option
Engine power :
371hp
Gearbox :
12F,2R
Color :
White/ Red
Truck capacity :
>30 tons
Description

8 x 4 HOWO Tanker Truck with 6000 gallons for loading fuel gasoline diesel

Product name
Fuel tank truck

Vehicle
Overall dimensions(mm)
11860*2490*3550

GVW (kg)
31000

description
Mass in working order(kg)
13305

Max. speed(km/h)
80

Max. climb slope(%)
30

Min. ground clearance(mm)
550

Chassis
Chassis mod
Sinotruck Howo

Approach/Departure angle(°)
25/15

parameters
F/R overhang(mm)
1555/2480

Wheel base(mm)
1800+4725+1300

F/R track base(mm)
1930/1930/1860/1860

Traction system
8*4

Number of axles
4

F/R axle-load(Kg)
6500/6500/18000

Spring plate
13/14/12

Braking system
Air braking

Tire specification
11.00R20

Number of tires
12+1

Electric system
24v

Allowable passengers in cab
3

Air-conditioner
optional

Type of fuel
Diesel

Exhaust/Rated Power(ml/kw)
8270/177

Operation control system
Steering wheel

Emission standard
EURO 2

Transmission
10/ 12-speed

Up-Parts
Tanker dimension(mm)
9100*2460*1650

Fact cubage(L)
28000

Tanker material
Carbon steel

Tanker thickness
4mm or 5mm

Oil tank truck also called flow bowser, computer tax-controlled tanker truck, gasoline truck, oil truck,

mainly used for oil derivatives (gasoline, diesel oil, crude oil, lubricating oil and coal tar oil ) transportation and storage.

It's made of tanks, take power device, a transmission axis, a gear oil pump, pipeline system and other parts.

Four consists of oil pump, the 3-way ball valve pipe network system, two-way of ball valve, strainer, pipe.

Chassis brand: HOWO, Dongfeng, Shacman, JAC , ISUZU etc are available

Material: carbon steel, aluminium, stainless steel Capacicity : 25000 liters, 30000 liters , 35000litersUsage: transport oil, fuel petroleum, chemical liquid Axle: 2 axles, 3 axles, 4 axle Type: 4x2, 6x2, 6x4, 8x4
