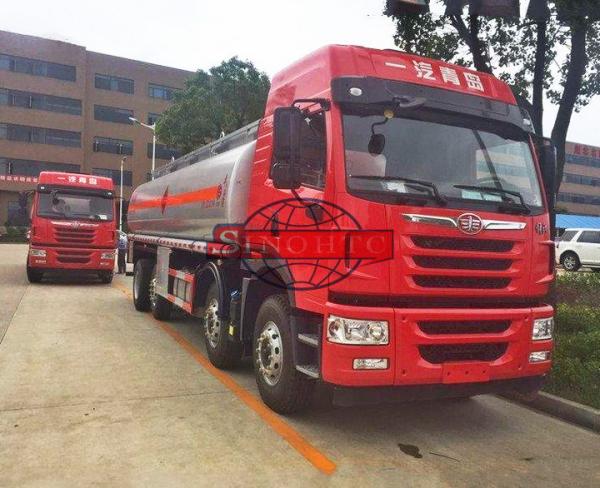

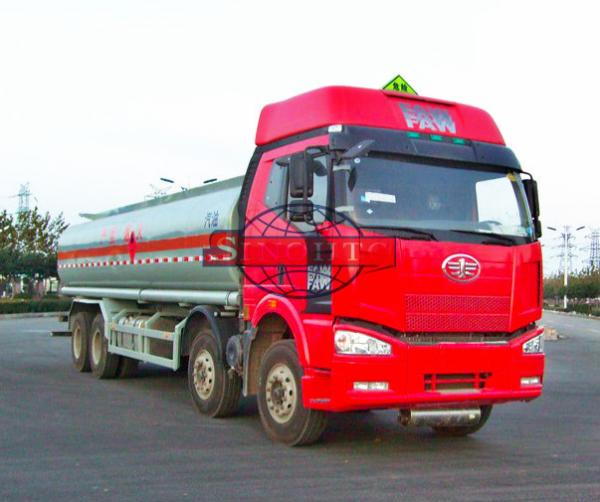

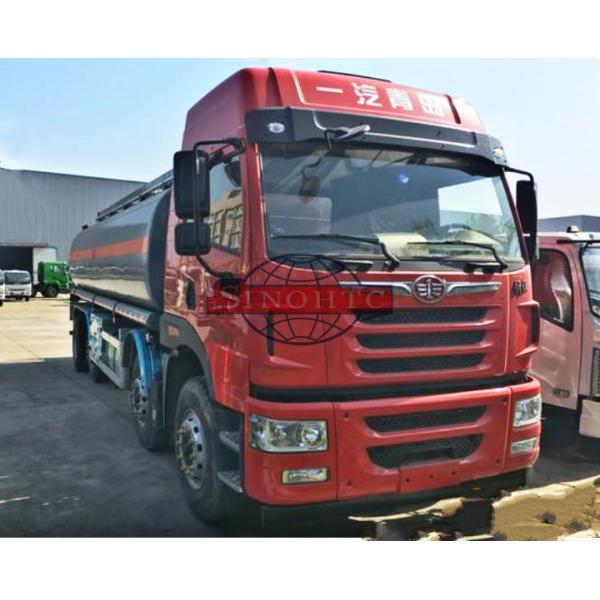

28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
28000 - 35000 Liters Oil Tanker Truck 4 Axles Aluminium Alloy Material
Specifications
Brand Name :
FAW
Model Number :
CA1313GYY
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
10 UNITS PER MONTH
Delivery Time :
30 Working Days
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Tank Volume :
28000 - 35000 Liters
Axles No. :
4 pcs
Driving type :
8x4
Tank material :
Q235 Carbon steel, 5083 Aluminium alloy
Steering :
LHD
Engine power :
330hp, 350hp
Description

28,000 -35,000 Liters Aluminium Alloy Tank Fuel Oil Gasoline Diesel 4 axles Tank Truck


28CBM FAW Euro 4 Fuel Tank Truck, in order to prevent corrosion, the outer surface of the tank coated with anti-rust paint and decorative paint, the middle of the tank with a container indicator in the middle of the tank to fuel or outward oil, can direct the volume of the tank (Optional). Tank for the diameter of 500mm holes for maintenance purposes. The big cover is fastened to the plate by the bolts, and the small cover is connected with the big cover by a support pin and an ear plate, and the cover is pressed clockwise to make the small cover pressed. Reverse, remove the ear plate, the small lid can be opened, the upper side of the lid installed with a breathing valve.

Name28CBM FAW Euro 4 Fuel Tank Truck
ItemSpecificationsItemSpecifications
Truck
ModelHTC5316GYYCGross Weight (kg)31000kg
Overall dimensions11990X2500X3580mmCerb Weight (kg)12255kg
Wheelbase (mm)2100+4700+1350mmApproach Angle18°
Front Track (mm)2020/2020mmDeparture Angle13°
Rear Track (mm)1847/1847mmNumber of Tyres12
Number of axles4Front Overhang (mm)1470/2370mm
Max speed (km/h)79km/hRear Overhang (mm)1470/2570mm
Traction system8*4Tyre11.00-20,11.00R20,12.00-20 16PR,12.00R20 16PR,12R22.5
TransmissionManualAllowable Cab Passengers3
Chassis
ModelCA5310GYYP66K2L7T4E4BrandFAW
Emission LevelEuro 4Front Axle Load6500/6500kg
Leaf Spring10/10/12Rear Axle Load18000kg
Engine (Motor)
BrandsModelDisplacementRated Power
FAWCA6DL2-35E48600ml261kw (355hp)
FAWCA6DL2-33E48600ml249kw (339hp)
FAWCA6DL2-31E48600ml231kw (314hp)
Superstructure
Fuel Tank Capacity28CBMDensity (kg/cbm)700
Fuel Tank Dimension9200×2480×1820mmABSCM4XL
RemarksThe material for the side and bottom protectie device adopting Q235, bolted connection; size 100×50mm, clearance 540mm.
