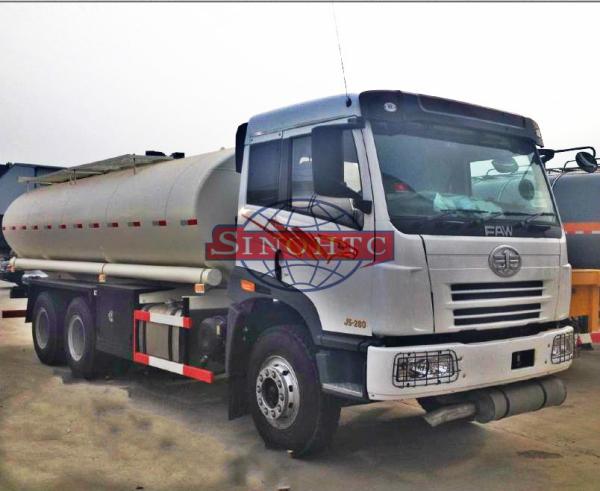

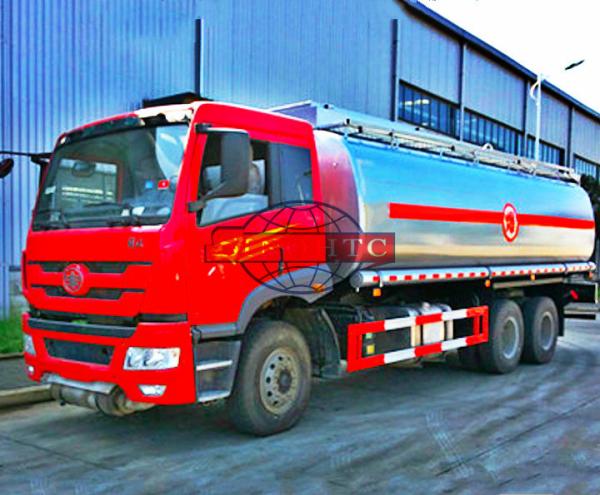

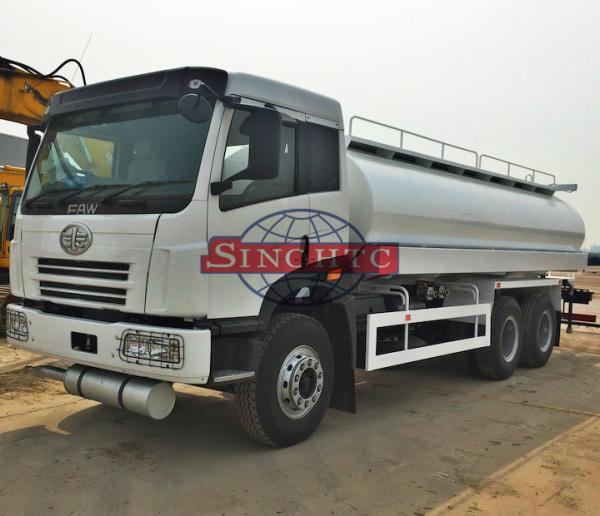

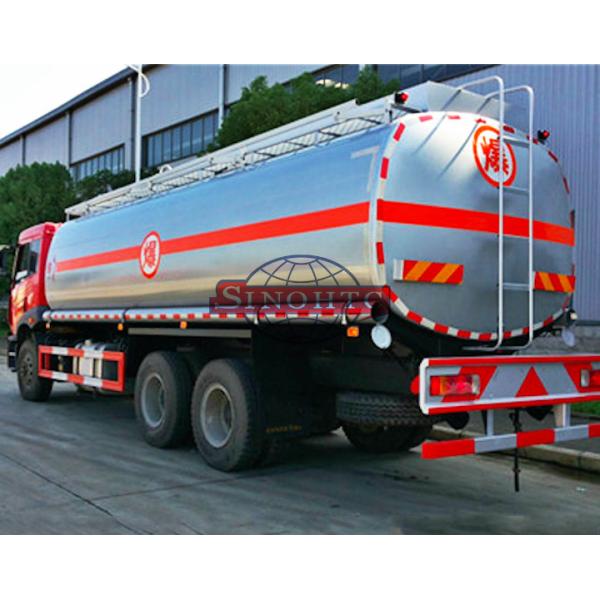

FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
Specifications
Brand Name :
FAW
Model Number :
CA5250GYY
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
30 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Cabin Series :
FAW J5M
Engine power :
240hp,260hp,280hp
Engine Displacement :
6557ml
Emission standard :
Euro 2, 3, 4, 5
Gearbox type :
Manual
Gearbox shift :
7/ 8F, 1R
Description

20 - 25 m3 FAW 6x4 Refuel Truck used at mine site, construction site

1> With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
2> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
3> According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.
4> According to users' needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves.
5> According to users' needs,the tank panting color can be customized.

Technical Parameters

Cabin Driving type 6x4 LHD/RHD
Model:CA5250GYY
J5M Lengthen cab, single bunk,safety belts,left hand driving,air conditioner.
Overall Dimensions 9800x2496x3215,3800 mm
Wheel Base 4300+1350 mm
GVW 25000kg
Engine Brand WEICHAI POWER, STEYR Tech
Model WD615.50/ WP10.290E32/ (WP10.270E32)
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Displacement 9.726L
Bore x Stroke 126x130mm
Horse Power (HP) 290 (270HP)
Emission standard Euro II
Max Speed 92 km/h
Tire 12.00-20, 12.00R20
Transmission 9JS150,9 forward & 1 reverse
Steering Power-assistant
Oil Tank 300L
Tank Volume 20 CBM
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake
Electrics Operating voltage:24V,negative grounded
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Option Vertical Muffler,ABS,Automatic Break Clearance Adjusting Arm,Traveling Data Recorder,Metal Pipeline,Engine Protective Board

FAW 6x4 Oil Tanker Truck 20 - 25 M3 Volume FAW J5M Cabin Manual Gearbox
