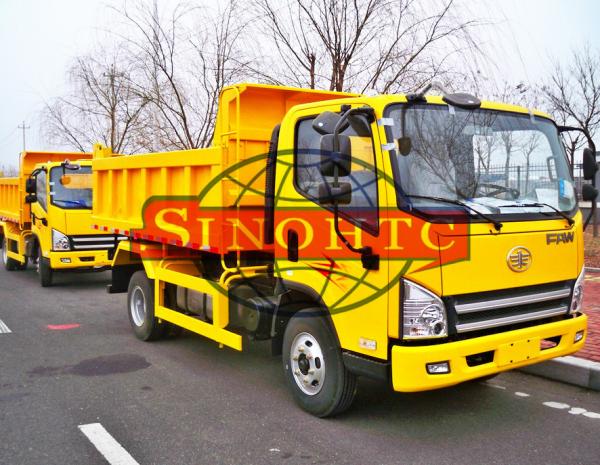

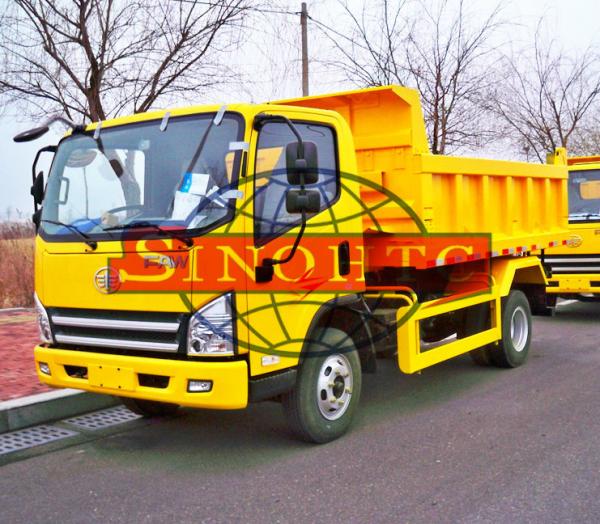

120hp / 130hp Light Duty Dump Trucks 3 - 5 Tons Load LHD / RHD Steering
120hp / 130hp Light Duty Dump Trucks 3 - 5 Tons Load LHD / RHD Steering
120hp / 130hp Light Duty Dump Trucks 3 - 5 Tons Load LHD / RHD Steering
120hp / 130hp Light Duty Dump Trucks 3 - 5 Tons Load LHD / RHD Steering
Specifications
Brand Name :
FAW
Model Number :
CA3075
Certification :
ISO9001
Place of Origin :
Qingdao China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
50 UNITS PER MONTH
Delivery Time :
30 DAYS
Packaging Details :
2 UNITS IN ONE 40HQ Container
Driving type :
4x2
Steering :
Power-assistant, LHD/ RHD
Cabin :
Tiger V
Capacity :
3-5 tons
Shipping :
Container
Color :
White, yellow
Description

2 axles Dump truck / Tipper truck , small dump truck , light dump truck , dump truck FAW

This 120hp / 130hp Light Duty Tipper truck could carry 3 - 5 Tons. This model with right hand driving steering, have beed exported to UK. And could meet UK IVA certificate.

Specialist supply various dump trucks, light duty dump truck, medium duty dump truck, heavy duty dump truck.

Specifications:




TRUCK



SPECS		 Overall dimension:
5998x2296x2510mm
Cabin Cabin size:
standard cabin(2 seats)
Seats and sleeper Bed:
2 seats/
Air conditioner: standard
Engine Horsepower(hp):


120

130

140
Tech: FAW/ YUCHAI/ CUMMINS tech
Engine Type: 4-cylinder in line, 4-stroke, water-cooled,turbocharged, intercooled
Emission Standard: EUR 2,3,4,5
Fuel Type: Diesel
Engine Capacity(ml): 3186/ 3826
Gear Box/Transmission 5 /6 speeds and 1 reverse speed
Clutch
Φ350
Axles Front Axles: 3.5T
Driving Axles: 7T
Tyre: 7.00R20,6 Radial tires with one spare tire
Max speed: 75km/h
Tare weight(MT): 8MT

BODY



SPECS
Body Dimensions



(LengthXWidthXHeight):
3800X2300X400mm

4000x2300x600mm
Material: Q235
Body steel (mm): floor 4mm,side 3mm
Cpacibility(M3):
6CBM
Lift System: hydraulic system with power assistance
Wheel base: 3250/3850mm(12.55x4.43ft)
Track Width(front/rear): 2041/1830mm(7.91x6ft)
Overhang(front/rear): 1500/1870mm(7.55x6.14ft)
Approach/Departure Angle: 19°/23°

The cabin similar ISUZU, Followed Description:

A item Comparison to competitor Effect
① Front view 7° more safety
② Seat adjust 24mm more More space
③ Backrest rear space 43mm more More space
Backrest angle 5.5°more Driving comfort
④ Height space 10mm more More space
⑤ Door height 110mm higher Entrance easy
⑥ Foot step width 60mm wider entrance easy

The six wheel dump truck is now a more common self-unloading car, which can be seen in many engineering projects. Because of its stable performance, good safety, relatively cheap price, and good performance in terms of energy consumption, it is always seen that this is a highly cost-effective dump truck. It is capable of large and medium-sized transportation needs in capacity, and can adapt to the transportation task requirements of engineering projects. In the future development, the car will continue to invest in the technical research and development force, which can provide more reliable guarantee and support for construction transportation.

120hp / 130hp Light Duty Dump Trucks 3 - 5 Tons Load LHD / RHD Steering

Air brake , independent 4-circuit protection valve, ensure brake performance.
Brake distance 30m at speed of 60km/h, make driving safe at emergency situation.
Air-cut parking brake technology, safe and reliable.
