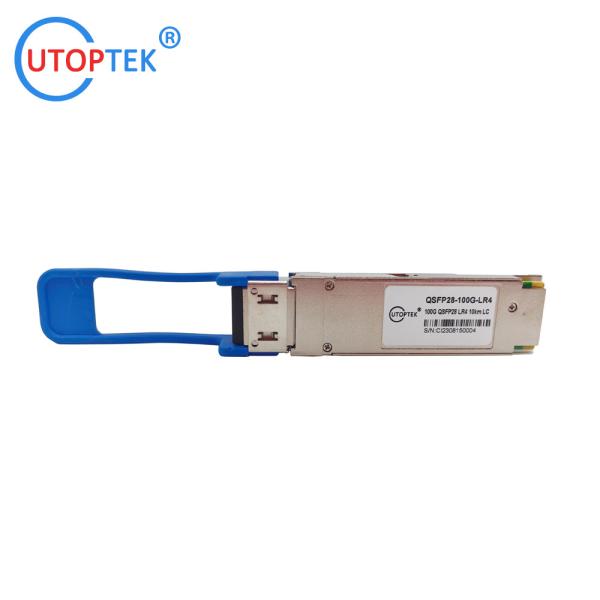

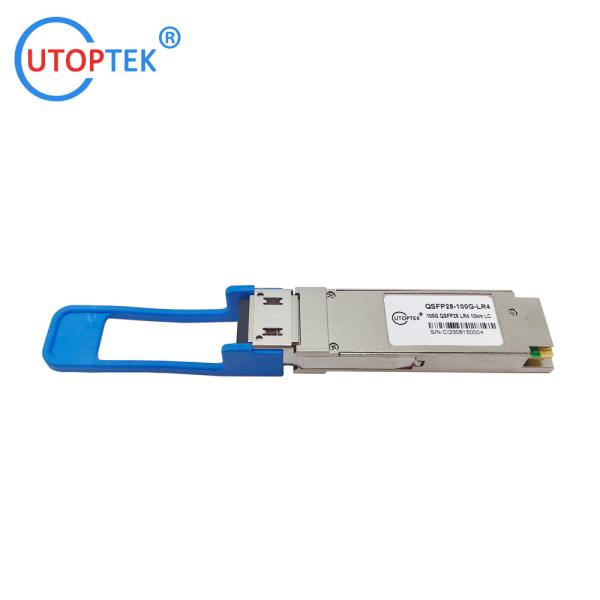

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module
Specifications
Brand Name :
UTOPTEK
Model Number :
QSFP28-100G-LR4
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
2-3working days
Packaging Details :
4pcs per tray
Speed :
100Gbps
Fiber Type :
single mode duplex LC
wavelength :
1310nm
Fiber connector :
LC connector
Distance :
10km
Power supply :
3.3V
Working Temperature :
0~70℃
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Warranty :
3 years
Package :
4pcs per tray
Description

QSFP28-100G-LR4 Single mode 1310nm duplex LC 10km optical sfp transceiver 100G module Cisco huawei compatible

1.Product Features:

  • 4 lanes MUX/DEMUX design
  • Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF28
  • Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
  • Aggregate bandwidth of > 100Gbps
  • Duplex LC connector
  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard 
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part

2.Applications:

  • Local Area Network (LAN)
  • Wide Area Network (WAN)
  • Ethernet switches and router applications

3.Technical specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP28
Fiber Type Single mode, duplex LC
Wavelength: 1310nm
Distance 10kM
Data Rate (max) 100Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption <2.5W
Connector LC connector
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 4pcs/box

4.Optical Characteristics

Parameter Symbol Min Typ Max Unit Ref.
Transmitter
L0 1294.53 1295.56 1296.59 nm
Wavelength Assignment
L1 1299.02 1300.05 1301.09 nm
L2 1303.54 1304.58 1305.63 nm
L3 1308.09 1309.14 1310.19 nm
Side-mode Suppression Ratio SMSR 30 - - dB
Total Average Launch Power PT -4 - 8.3 dBm
Average Launch Power, each Lane -4 - 4.5 dBm
Difference in Launch Power between any two Lanes (OMA) - - 6.5 dB
Optical Modulation Amplitude, each Lane OMA -4 4.5 dBm
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane -4.8 - dBm
TDP, each Lane TDP 2.2 dB
Extinction Ratio ER 4 - - dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} {0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Optical Return Loss Tolerance - - 20 dB
Average Launch Power OFF Transmitter, each Lane Poff -30 dBm
Relative Intensity Noise Rin -128 dB/HZ 1
Optical Return Loss Tolerance - - 12 dB
Receiver
Damage Threshold THd 3.3 dBm 1
Average Power at Receiver Input, each Lane R -10.6 0 dBm
RSSI Accuracy -2 2 dB
Receiver Reflectance Rrx -26 dB
Receiver Power (OMA), each Lane - - 3.5 dBm
LOS De-Assert LOSD -15 dBm
LOS Assert LOSA -25 dBm
LOS Hysteresis LOSH 0.5 dB

5.Factory Show:

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver ModuleCisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver ModuleCisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver ModuleCisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

6.Compatibility:

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

Cisco Qsfp-100g-LR4-S Compatible 100gbase-Lr4 Qsfp28 1310nm 10km Dom Optical Transceiver Module

7.Ordering Information:

100Gbps QSFP28 Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
QSFP28-100G-SR4 100Gb/s QSFP28 100m 850nm VCSEL PIN MPO 0-70℃
QSFP28-100G-LR4 100Gb/s QSFP28 10km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-LR4 100Gb/s QSFP28 20km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-ER4 100Gb/s QSFP28 40km 1310nm EML APD LC 0-70℃
QSFP28-100G-PSM4 100Gb/s QSFP28 2km 1310nm DFB PIN MPO 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 10km 1270-1330nm CWDM4 LC 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 2km 1270-1330nm CWDM4 LC 0-70℃
QSFP28-100G-ZR4 100Gb/s QSFP28 80km 1310nm EML PIN LC 0-70℃
