QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
Specifications
Brand Name :
UTOPTEK
Model Number :
QSFP28-100G-ZR4
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union
Delivery Time :
2-3working days
Packaging Details :
4pcs per tray
Speed :
100Gbps
Fiber Type :
single mode duplex LC
wavelength :
1310nm
Fiber connector :
LC connector
Distance :
80km
Power supply :
3.3V
Working Temperature :
0~70℃
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Warranty :
3 years
Package :
4pcs per tray
Description

QSFP28-100G-ZR4

QSFP28 100GBASE-ZR4 1310nm 80km

1.Product Features:

  • Supports 100GBASE 100GE;
  • Lane bit rate 25.78 Gb/s 100GE
  • Up to 80km transmission on SMF;
  • LAN WDM EML laser and PIN receiver with SOA;
  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
  • High speed I/O electrical interface (CAUI-4);
  • I2C interface with integrated Digital Diagnostic monitoring;
  • QSFP28 MSA package with duplex LC connector;
  • Single +3.3V power supply;
  • Typical power consumption 6.5 W;
  • Operating case temperature: 0 to +70 °C;
  • Compliant to IEEE 802.3bm and ITU-T G.959;
  • Compliant to SFF-8665 and SFF-8679;
  • Complies with EU Directive 2015/863/EU;

2.Applications:

  • 100GBASE-ZR4;

3.Technical specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP28
Fiber Type Single mode, duplex LC
Wavelength: 1310nm
Distance 80KM
Data Rate (max) 100Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption <2.5W
Connector LC connector
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 4pcs/box

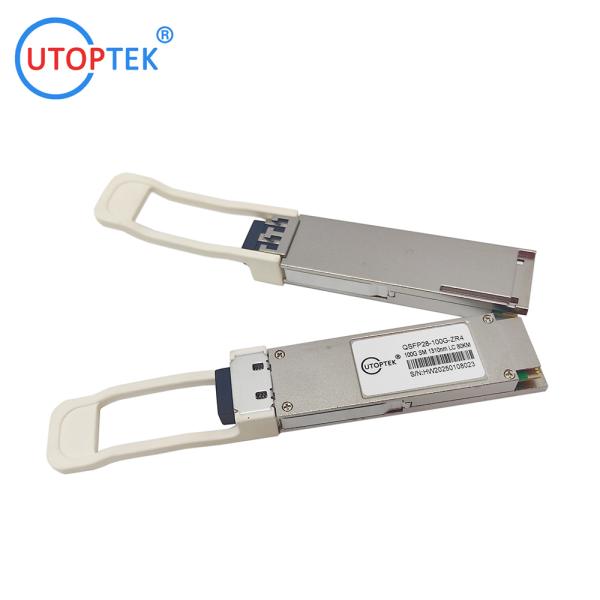

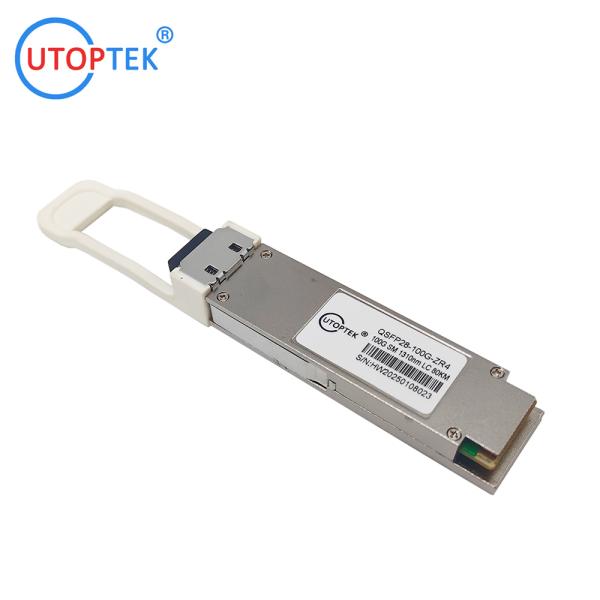

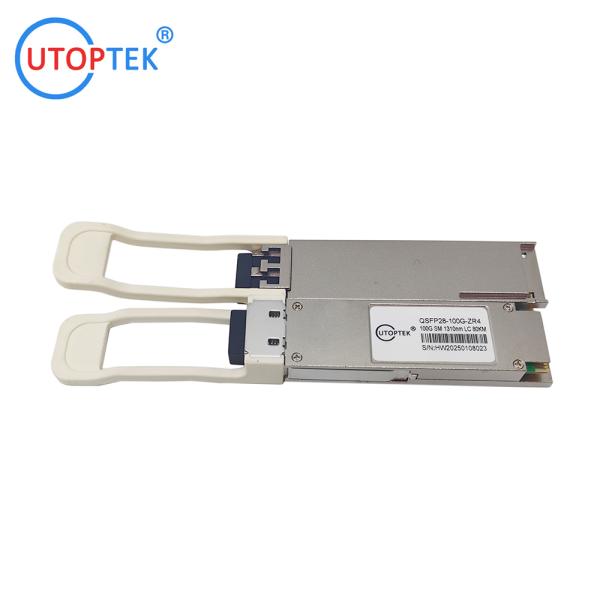

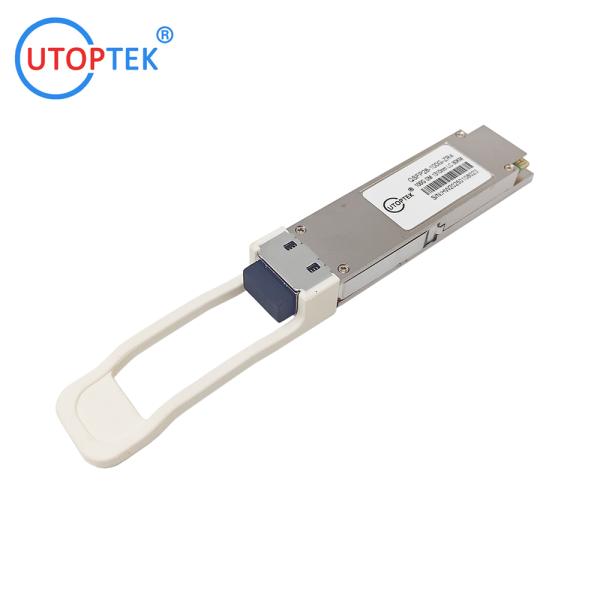

4. Detailed photoes:

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/JuniperQSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/JuniperQSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper
5.Factory Show:

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper

6.Compatibility:

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper

QSFP28-100G-ZR4 100g qsfp28 module 80km Single mode 1310nm duplex LC for Cisco/huawei/Extreme/Juniper

7.Ordering Information:

100Gbps QSFP28 Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
QSFP28-100G-SR4 100Gb/s QSFP28 100m 850nm VCSEL PIN MPO 0-70℃
QSFP28-100G-LR4 100Gb/s QSFP28 10km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-LR4 100Gb/s QSFP28 20km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-ER4 100Gb/s QSFP28 40km 1310nm EML APD LC 0-70℃
QSFP28-100G-PSM4 100Gb/s QSFP28 2km 1310nm DFB PIN MPO 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 10km 1270-1330nm CWDM4 LC 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 2km 1270-1330nm CWDM4 LC 0-70℃
QSFP28-100G-ZR4 100Gb/s QSFP28 80km 1310nm EML PIN LC 0-70℃
