Specifications
Brand Name :
UTOPTEK
Model Number :
UT-1H1F-T/R-F20
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :
5000pcs per week
Delivery Time :
1-2 days
Packaging Details :
66pcs/Carton, 57*43*50CM, G.W.:17.55Kg
Product name :
HDMI optical Extender
Interface :
1*HDMI+1*Fiber port
HDMI resulotion :
1920x1080P
Optical distance :
20km
Power input :
DC5V
Product size :
70x65x24MM
Warranty :
12months
support HDMI version :
HDMI 1.2
Housing Material :
Aluminium alloy
Operating Temperature :
0～+70°C
Description

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter

Overview:

The Mini HDMI digital optical transceiver is composed of an HDMI transmitter and a receiver. It transmits high-definition HDMI and signals through a single core single-mode optical fiber, and can adapt to a variety of complex application environments. The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. HDMI optical transceiver transmission has the advantages of long transmission distance (1-80km), wide bandwidth, strong anti-interference performance, high security performance, and is suitable for long-distance and special environment transmission. HDMI digital optical transceiver has been widely used in many fields, such as large-scale multimedia high-definition display, information release and news center, traffic guidance and information display system, outdoor large screen display system, large-scale stage display and entertainment center, live television, multimedia conference, military command and performance.

Features:

● Long distance transmission of HDMI video and audio signals through optical fiber, up to 20 km;

● Highest resolution of high-definition video signal 1080P@60Hz ；

● Comply with HDMI standard protocol;

● Be able to automatically identify and configure various display modes;

● Built in automatic equalization system, with smooth, clear and stable images;

● Built in ESD static protection circuit to protect system safety in all aspects;

● Simple and convenient installation, plug and play, without setting;

Technical sheet:

Model UT-1H1F-FC20AB
Function Transmission signal category HDMI Video
Transmission channel 1channel
Optical Fiber Transmission wavelength Multi mode(850nm); single mode(1310nm,1550nm)
Tx optical power －9.5～－3dBm average optical power at 850nm
Rx sensitivity －15dBm average optical power at 850nm
Transmission code rate 1.25 Hz
Transmission distance 2km (Multimode)
20km (Singlemode)
Power supply Power mode Exetrnal power adapter
voltage range 5VDC
consumption <10W
HDMI performance and interface support HDMI version HDMI 1.2
HDMI resulotion 720x576p50, 720x480p60, 640x480p60/75, 800x600p60/75, 1024x768p60/75, 1280x800p60, 1280x1024p60, 1440x900p60, 1680x1050p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60
Support video color format 24 bit/dark color 30 bit/dark color 36 bit
input output TMDS signals 0.5～1.5Vp-p(TMDS)
input output DDC signals 5Vp-p(TTL)
input cable length ≤5m(AWG26 HDMI1.3 cable standard)
output cable length ≤5m(AWG26 HDMI1.3 cable standard)
fiber connector single mode single fiber FC connector
working enviroment working temperature 0～55℃
storage temperature -20～70℃
Humidity (non condensing) 0～95%
shell Dimension (length × wide × High) 70x65x24mm
Material Metal
Color Black
product weight 0.125kg
reliability (MTBF) >30000 hours

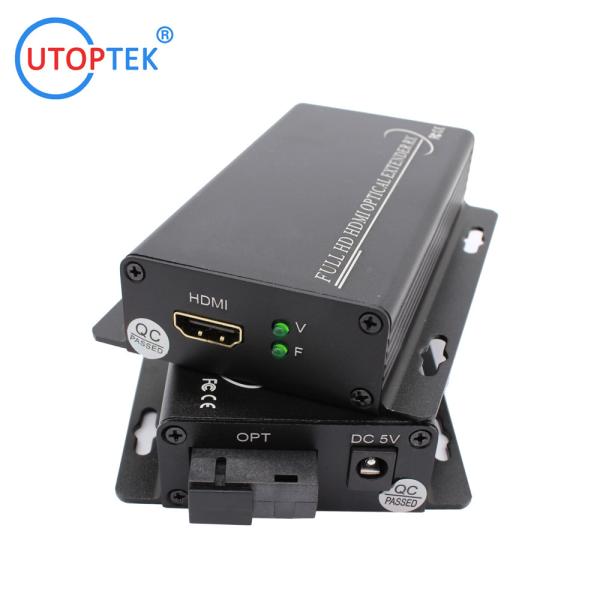

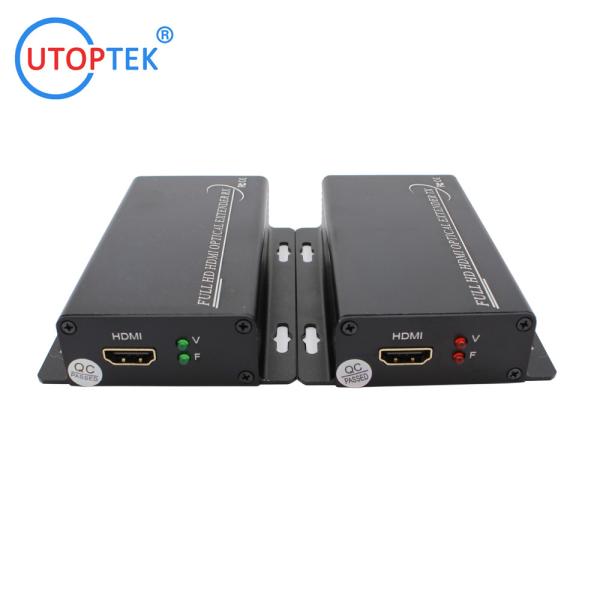

Products show:

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber convertermini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber convertermini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber convertermini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber convertermini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter

Connection topology​:

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter

Order Models:

Video Transmission products
UT-1E1C-S/M 100Mbps 1*BNC+1*LAN, EOC Ethernet over Coaxial Extender,0~1.5km,Power Supply: DC12V Pair
UT-1E2W-S/M 100Mbps 1*BNC+2*2wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km,Power Supply: DC12V Pair
UT-1EP1C-S/M
UT-1EP2W-S/M		 100Mbps 1*BNC+1*LAN (Or 2wire port), POE+POC EOC Ethernet over Coaxial/twisted pair Extender,0~300m, Power Supply: DC52V Pair
UT-1H1F-T/R-F20 Mini Compressed full HD HDMIOptical Extender, SM single FC 20km, with DC5V power supply Pair
