Specifications
Brand Name :
UTOPTEK
Model Number :
UT08F
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union, Paypal, Wechat, Alipay etc.
Supply Ability :
5000 per month
Delivery Time :
2-3days
Packaging Details :
26pcs/carton with power adapter ; 60pcs/carton without power adapter.
Product name :
industrial Ethernet switch
Ethernet port :
8x RJ45
Transmission Speed :
10/100Mbps
Material :
Aluminum Alloy
Working Temp. :
-40°C to 85°C
Power input :
DC10-48V(no poe); DC48-57V(POE)
Transmission Distance :
100m
Warranty :
5years
Description

Industrial Grade Ethernet switch
8-port 10/100Mbps RJ45 port
Model: UT08F

Features:

  • 8 Port 10/100Mbps RJ45 with Auto Uplink
  • Automatic MAC address learning and aging
  • Automatically support IGMP (Multicasting)
  • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation for lightning protection
  • Supports Daisy-Chain connection
  • Supports Broadcast Storm Control
  • Supports Relay output for power failure
  • Super lightening protection, IP40 protection.
  • Excellent heat elimination without cooling fan.
  • Redundant dual DC power inputs.
  • Redundant Power Inputs
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh industrial environment or higher requirement
  • -45℃-85℃ operating temperature range.


Technical Paremeters:

Technical Specification
Product Name8 Port 10/100M Industrial Ethernet switch
Product ModelUT08F
Interface8 x 10/100Base-T RJ45 port
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Performance SpecificationBandwidth: 5.6Gbps
Packet Buffer Memory: 1M
Packet Forwarding Rate:0.744Mpps/port
MAC Address Table: 4K
Forwarding ModeStore-and-Forward
Protection6KV Lightening protection, IP40 protection
LED IndicatorsPower: PWR; OPT/Link; Link/Act
Power Supply

Input Voltage:
Non-POE: DC24V(10-48V)
POE: DC52V (48～57V) /Terminal block

Other Specifications
Working Environment

Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃
Relative Humidity: 5%~95 %( no condensation)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

ShellIP40 protect grade, metal shell
InstallationDIN-Rail or Wall mounts
Packing List

1×Industrial Media Converter (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit

Certification

CE mark, commercial; FCC Part 15 Class B; VCCI Class B
EN 55022 (CISPR 22), Class B

MTBF300,000 hours
Weight & Size

Product Weight: 0.36 KG
Packing weight: 0.46KG
Product size (L×W×H): 118m× 86mm× 40mm
Packing size(L×W×H): 220mm× 220mm× 67mm

Warranty5-years

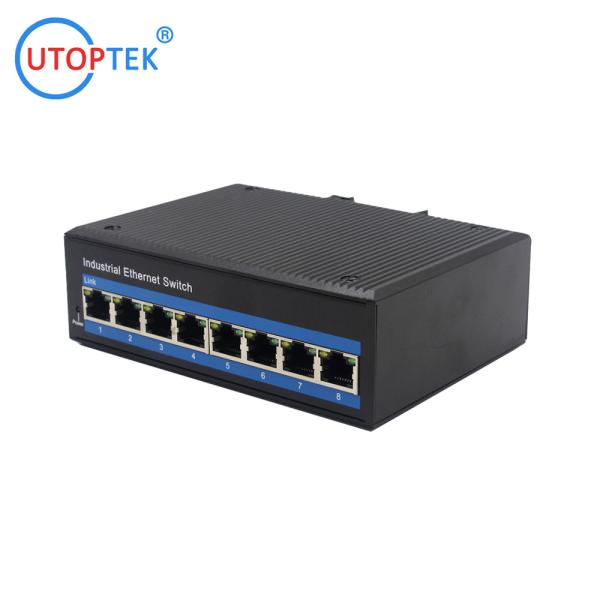

Product pictures:

Industrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switchIndustrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switchIndustrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switchIndustrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switchIndustrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switchIndustrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switch​Industrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switch

Application:

Industrial ethernet switch 8port 10/100M RJ-45 UTP unmanaged industrial grade ethernet switch


Ordering informations:

10/100M Industrial Fiber Switch (Aluminum Case, -40 ~+85 ℃)
UT11F-SC20Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT11FP-SC20Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter.
UT12F-SC20Industrial 10/100M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT12FP-SC20Industrial 10/100M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, with POE function,exclude power adapter
UT14F-SC20Industrial 10/100M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V, exclude power adapter
UT14FP-SC20Industrial 10/100M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function exclude power adapter
UT24F-SC20Industrial 10/100M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V,exclude power adapter
UT24FP-SC20Industrial 10/100M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter
UT26F-SC20Industrial 10/100M 2 fiber port + 6 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V, exclude power adapter
UT26FP-SC20Industrial 10/100M 2 fiber port + 6 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter
UT05FIndustrial 5x10/100Mbps RJ45 ports network switch, DIN Rail type, DC10~47V,exclude power adapter
UT05FPIndustrial 5x10/100Mbps RJ45 ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
UT08FIndustrial 8x10/100Mbps RJ45 ports network switch, DIN Rail type,DC10~47V,exclude power adapter
UT08FPIndustrial 8x10/100Mbps RJ45 ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
UT09FIndustrial 9x10/100Mbps RJ45 ports network switch, DIN Rail type,DC10~47V,exclude power adapter
UT09FPIndustrial 8x10/100Mbps RJ45 +1 Uplink ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
