High Quality 12V/1A AC/DC POE Power adapter US/EU/UK/AU available power for CCTV IP Camera/Wireless APs

Product Description:

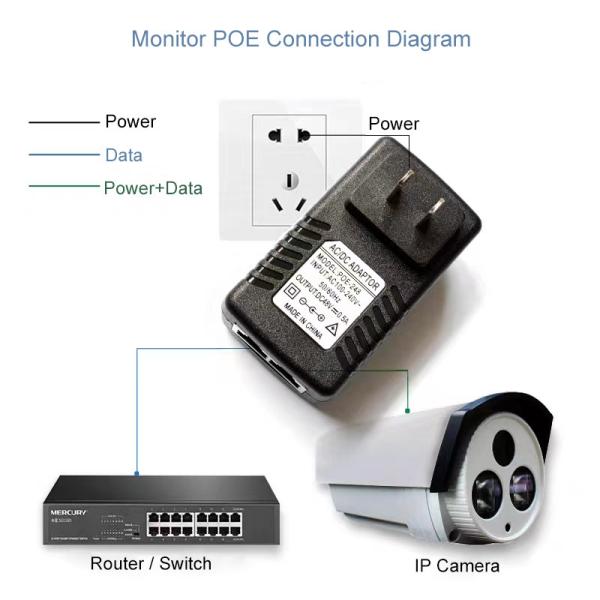

This small desktop POE power adapter with 2x10/100Mbps Auto-Negotiation RJ45 port. one RJ45 port can transmit data and power for the POE IP Cameras or APs, another RJ45 port can transmit Data to Monitor side. The products support IEEE802.3af/at power supply standard, maximum output power Up to 24Watts for POE, Plug and Play, no need to convert by software and network protocol, Easy installation and use.Adopt No fan, low power design. Meet the needs of the site and provide a reliable and convenient solution for the network of Ethernet devices for users.The product apply with FCC and CE standards.

Features:

1,Support IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX/FX;

IEEE802.3ab 100Base-T;IEEE802.3z 100Base-X; IEEE802.3af; IEEE802.3at;

2,Support 10/100Mbps half-duplex/full-duplex mode and auto MDI/MDIX;

3,Transmission distance: 100meters Cat5,cat6,6e

4,POE power pin: 1/2+,3/6- (Option 4/5+,7/8-)；

5,RJ45 port support direct and cross automatic recognition function (AUTO-MDIX);

6,Fanless design, its own low heat, work stability and durability stronger;

7,Trouble-free working hours (MTBF)> 50,000 hours, in line with carrier-class operating standards;

Technical Parameters:

Packing and Shipping:

UTOPTEK's POE AC/DC Adapter are packaged in a small white boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.

The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

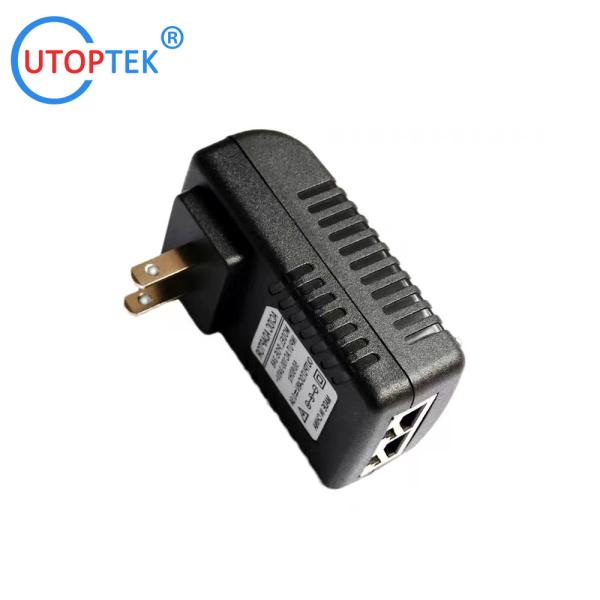

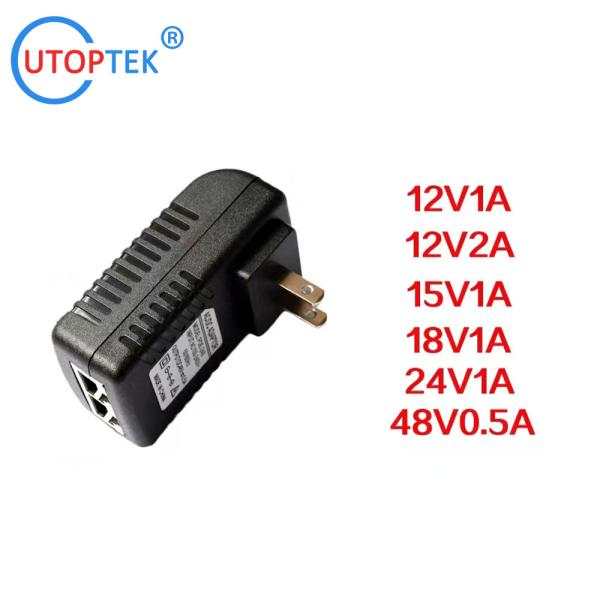

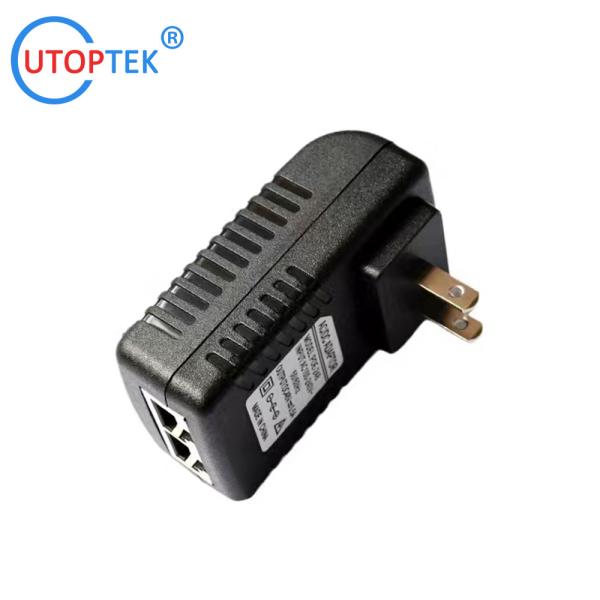

Product photoes:
