Specifications
Brand Name :
UTOPTEK
Model Number :
UT24GP-SFP
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union, Paypal, Wechat, Alipay etc.
Supply Ability :
5000 per month
Delivery Time :
2-3days
Packaging Details :
26pcs/carton with power adapter ; 60pcs/carton without power adapter.
Product name :
industrial ethernet switch
Ethernet port :
4x 10/100/1000M RJ45 POE
Fiber port :
2x Fiber (SFP slot)
Transmission Speed :
10/100/1000Mbps
Material :
Aluminum Alloy
Working Temp. :
-40°C to 85°C
Power input :
DC48-57V
Transmission Distance :
depends on sfp
Warranty :
5years
installation :
Din rail, wall mount
lightning :
4kv
Powe No. :
redundant power
Description

Industrial Grade Fiber Ethernet Switch
4-port 10/100/1000Mbps RJ45 POE + 2-port 1000Mbps Fiber SFP Slot
Model: UT24GP-SFP

Features:

  • 4-port 10/100/1000Base-Tx RJ-45 POE with auto negotiation and auto-MDI/ MDI-X function
  • 2-port 1000Base-Fx interface SC/FC/ST/SFP
  • Multi-Mode up to 2km; Single-Mode up to 20km/40km/60km/80km
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports 10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation for lightning protection
  • 12V to 52V DC, redundant power input
  • -40℃ to 85℃ operating temperature range.
  • IP40 aluminum housing
  • Supports 6KV DC Ethernet ESD protection
  • Supports 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability


Technical Paremeters:

Technical Specification
Product Name 4 Port 10/100/1000M Industrial Ethernet Switch
Product Model UT24GP-SFP
Interface 4 x 10/100/1000Base-T RJ45 port POE+ 2x 1000Mbps Fiber (SC/FC/ST/SFP)
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media

Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Performance Specification Bandwidth: 1Gbps
Packet Buffer Memory: 512K
Packet Forwarding Rate:0.744Mpps/port
MAC Address Table: 1K
Forwarding Mode Store-and-Forward
Protection 6KV Lightening protection, IP40 protection
LED Indicators Power: PWR; OPT/Link; Link/Act
Power Supply

Input Voltage:
Non-POE: DC24V(12-52V)
POE: DC52V (48～57V) /Terminal block
Other Specifications
Working Environment

Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃
Relative Humidity: 5%~95 %( no condensation)
Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS:
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell IP40 protect grade, metal shell
Installation DIN-Rail or Wall mounts
Packing List

1×Industrial Media Converter (plus terminal block)
1×User Manual/Certificate of quality/Warranty card
1×DIN-Rail mounting kit
Certification

CE mark, commercial; FCC Part 15 Class B; VCCI Class B
EN 55022 (CISPR 22), Class B
MTBF 300,000 hours
Weight & Size

Product Weight: 0.36 KG
Packing weight: 0.46KG
Product size (L×W×H): 118m× 86mm× 40mm
Packing size(L×W×H): 220mm× 220mm× 67mm
Warranty 5-years

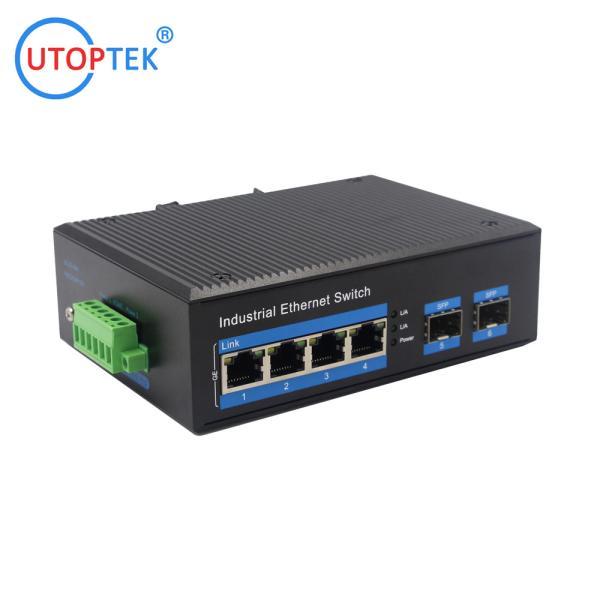

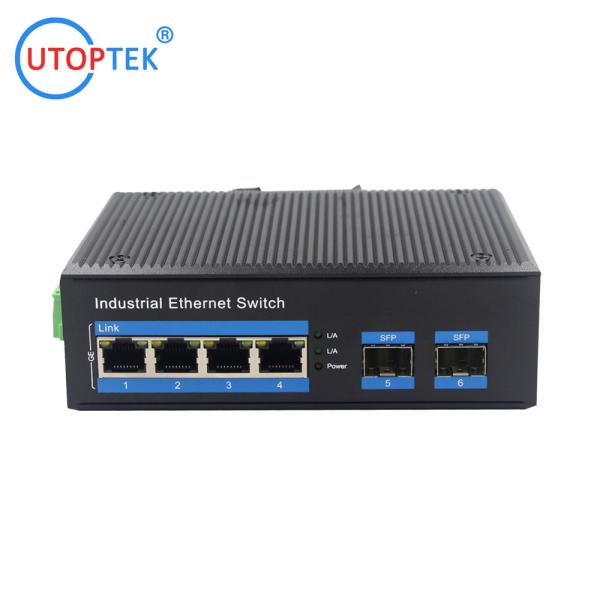

Product pictures:

OEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din RailOEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din RailOEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din RailOEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din RailOEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din RailOEM IP40 10/100/1000Mbps 4 Port POE+2 SFP Ethernet Industrial Switches with Din Rail
Ordering informations:

10/100/1000M Industrial Fiber Switch (Aluminum Case, -40 ~+85 ℃)
UT11G-SC20 Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC12~52V, exclude power adapter
UT11GP-SC20 Industrial 10/100/1000M 1 fiber port + 1 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT12G-SC20 Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC12~52V, exclude power adapter
UT12GP-SC20 Industrial 10/100/1000M 1 fiber port + 2 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT14G-SC20 Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC12~52V, exclude power adapter
UT14GP-SC20 Industrial 10/100/1000M 1 fiber port + 4 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT05G Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, DC12~52V,exclude power adapter
UT05GP Industrial 5x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~57V,exclude power adapter
UT08G Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail type,DC12~52V,exclude power adapter
UT08GP Industrial 8x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~57V,exclude power adapter
UT11G-SFP Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT11GP-SFP Industrial 10/100/1000M 1 SFP port + 1 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT12G-SFP Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT12GP-SFP Industrial 10/100/1000M 1 SFP port + 2 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT14G-SFP Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT14GP-SFP Industrial 10/100/1000M 1 SFP port + 4 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT18G-SFP Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT18GP-SFP Industrial 10/100/1000M 1 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT24G-SFP Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT24GP-SFP Industrial 10/100/1000M 2 SFP port +4 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT28G-SFP Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT28GP-SFP Industrial 10/100/1000M 2 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT82G-SFP Industrial 10/100/1000M 8 SFP port + 2 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
48V-DC power DC 48V/2.5A,120W suitable for PoE 1-8 port
52V-DC power DC 52V/2.3A,120W suitable for PoE 1-8 port
