2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP
Specifications
Brand Name :
UTOPTEK
Model Number :
SFP-2.5G-SX1310
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
2000pcs per week
Delivery Time :
1-2days
Packaging Details :
10pcs to one plastic plate
Transmission speed :
2.5Gb/s
Fiber Type :
Multi-mode, Duplex LC
Distance :
2km
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Wavelength :
TRX1310nm
Warranty :
1 year
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Description

2.5Gb/s SFP Transceiver 300m

Hot Pluggable, Duplex LC, +3.3V, 1310nm, Multi-mode, DDM

Description:

UTOPTEK’s SFP-2.5G-SX1310 Transceiver are a high performance, cost effective module which have a duplex LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 8dB link budge ensure this module SONET OC-48 / SDH STM -16 2km application.

Features:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: TRx1310nm
Distance 2KM
Data Rate (max) 2.5Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 1 year
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box

Product Features

  • Up to 2.488Gb/s bi-directional data links
  • Duplex LC connector
  • Up to 2km on 9/125μm SMF
  • 1310nm FP laser transmitter
  • Single +3.3V Power Supply
  • Monitoring Interface Compliant with SFF-8472
  • Maximum Power <1W
  • Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
  • RoHS compliant and Lead Free

Applications

* SDH STM-16 and SONET OC-48 system

* 2X Fiber Channel

* Switch to Switch interface

* Switched backplane applications

* Router/Server interface

* Other optical transmission systems

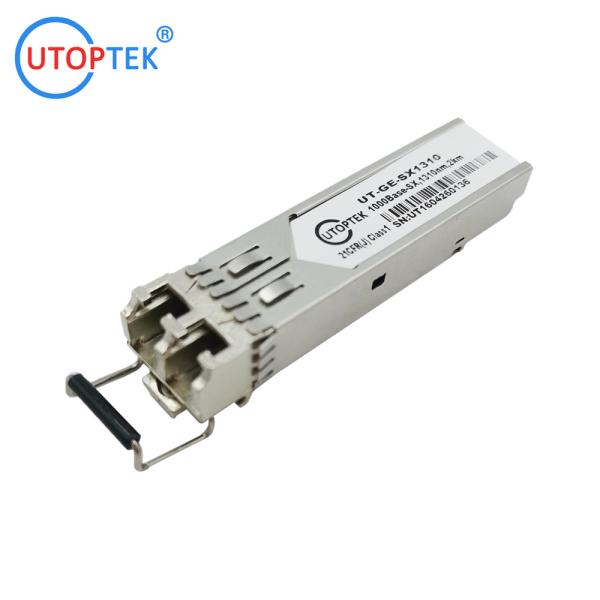

Prpducts Picture:

2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP

2.5Gb/s SFP Multi-mode 1310nm 2km duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP

Ordering Information:

2.5Gbps SFP Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-2.5G-SX850 2.5Gb/s SFP 300m 850nm VCSEL PIN LC 0-70℃
SFP-2.5G-SX1310 2.5Gb/s SFP 2km 1310nm FP PIN LC 0-70℃
SFP-2.5G-LX10 2.5Gb/s SFP 10km 1310nm FP PIN LC 0-70℃
SFP-2.5G-LX20 2.5Gb/s SFP 20km 1310nm FP PIN LC 0-70℃
SFP-2.5G-EX40 2.5Gb/s SFP 40km 1310nm DFB PIN LC 0-70℃
SFP-2.5G-EX40 2.5Gb/s SFP 40km 1550nm DFB PIN LC 0-70℃
SFP-2.5G-ZX60 2.5Gb/s SFP 60km 1550nm DFB PIN LC 0-70℃
SFP-2.5G-ZX80 2.5Gb/s SFP 80km 1550nm DFB PIN LC 0-70℃
SFP-2.5G-ZX100 2.5Gb/s SFP 100km 1550nm DFB PIN LC 0-70℃
SFP-2.5G-ZX120 2.5Gb/s SFP 120km 1550nm DFB APD LC 0-70℃
SFP-2.5G-BX20-L35 2.5Gb/s BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70℃
SFP-2.5G-BX20-L53 2.5Gb/s BiDi SFP 20km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX40-L35 2.5Gb/s BiDi SFP 40km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX40-L53 2.5Gb/s BiDi SFP 40km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX60-L35 2.5Gb/s BiDi SFP 60km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX60-L53 2.5Gb/s BiDi SFP 60km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX80-L45 2.5Gb/s BiDi SFP 80km Tx1490nm/Rx1550nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX80-L54 2.5Gb/s BiDi SFP 80km Tx1550nm/Rx1490nm DFB PIN LC/SC 0-70℃
SFP-2.5G-BX120-L45 2.5Gb/s BiDi SFP 120km Tx1490nm/Rx1550nm DFB APD LC/SC 0-70℃
SFP-2.5G-BX120-L54 2.5Gb/s BiDi SFP 120km Tx1550nm/Rx1490nm DFB APD LC/SC 0-70℃
SFP-2.5G-CW40-xx 2.5Gb/s CWDM SFP 40km 1470 ~1610nm DFB PIN LC 0-70℃
SFP-2.5G-CW60-xx 2.5Gb/s CWDM SFP 60km 1470 ~1610nm DFB PIN LC 0-70℃
SFP-2.5G-CW80-xx 2.5Gb/s CWDM SFP 80km 1470 ~1610nm DFB PIN LC 0-70℃
SFP-2.5G-CW120-xx 2.5Gb/s CWDM SFP 120km 1470 ~1610nm DFB APD LC 0-70℃
SFP-2.5G-DW40-CHxx 2.5Gb/s DWDM SFP 40km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
SFP-2.5G-DW80-CHxx 2.5Gb/s DWDM SFP 80km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
SFP-2.5G-DW120-CHxx 2.5Gb/s DWDM SFP 120km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
