622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
Specifications
Brand Name :
UTOPTEK
Model Number :
SFP-622M-BX40-L35/53
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1 pair
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
2000pcs per week
Delivery Time :
1-2days
Packaging Details :
10pcs to one plastic plate
Transmission speed :
622Mbps
Fiber Type :
Single-mode, Simplex LC
Distance :
40KM
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Wavelength :
Tx1310nm/Rx1550nm
Warranty :
3 years
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Description

622Mb/s 40Km LC BiDi SFP Transceiver

Hot Pluggable, Single LC, +3.3V, Tx1310nm/Rx1550nm, FP-LD, Single-mode, DDM

Description:

UTOPTEK’s SFP-622M-BX40-L35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 19dB link budge ensure this module SONET OC-3 / SDH STM -4 40km application.

Features:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: Tx1310nm/Rx1550nm
Distance 40KM
Data Rate (max) 622Mbps
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box

Applications:

  • STM-4 BX Ethernet
  • SONET OC-3/SDH STM-1
  • 1×Fiber Channel
  • Other Optical Links

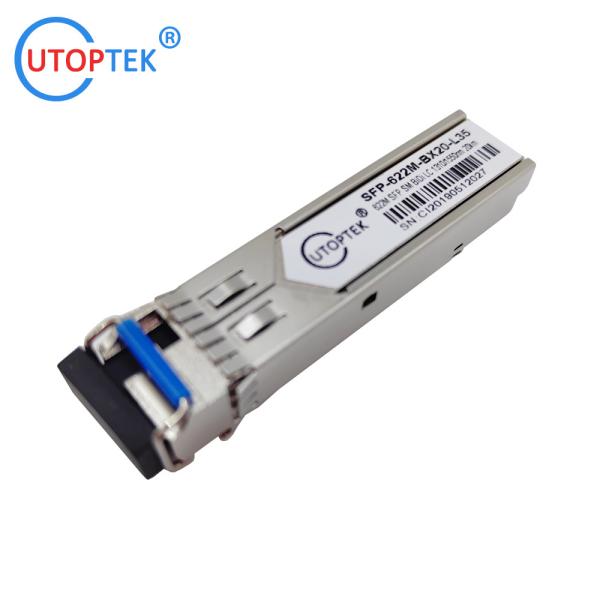

Prpducts Picture:

622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

Factory Show:

622M STM-4 SMF Bidi LC 40km 1310/1550nm SFP module optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

Ordering Information:

622Mbps SFP Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-622M-SX850 622Mbps SFP 2km 850nm VCSEL PIN LC 0-70℃
SFP-622M-SX1310 622Mbps SFP 2km 1310nm FP PIN LC 0-70℃
SFP-622M-LX20 622Mbps SFP 20km 1310nm FP PIN LC 0-70℃
SFP-622M-EX40 622Mbps SFP 40km 1310nm DFB PIN LC 0-70℃
SFP-622M-ZX60 622Mbps SFP 60km 1550nm DFB PIN LC 0-70℃
SFP-622M-ZX80 622Mbps SFP 80km 1550nm DFB PIN LC 0-70℃
SFP-622M-ZX100 622Mbps SFP 100km 1550nm DFB PIN LC 0-70℃
SFP-622M-ZX120 622Mbps SFP 120km 1550nm DFB PIN LC 0-70℃
SFP-622M-ZX160 622Mbps SFP 160km 1550nm DFB PIN LC 0-70℃
SFP-622M-BX20-L35 622Mbps BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
SFP-622M-BX20-L53 622Mbps BiDi SFP 20km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
SFP-622M-BX40-L35 622Mbps BiDi SFP 40km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
SFP-622M-BX40-L53 622Mbps BiDi SFP 40km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
SFP-622M-BX60-L35 622Mbps BiDi SFP 60km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-622M-BX60-L53 622Mbps BiDi SFP 60km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-622M-BX80-L45 622Mbps BiDi SFP 80km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-622M-BX80-L54 622Mbps BiDi SFP 80km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-622M-BX100-L45 622Mbps BiDi SFP 100km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-622M-BX100-L54 622Mbps BiDi SFP 100km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-622M-BX120-L45 622Mbps BiDi SFP 120km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-622M-BX120-L54 622Mbps BiDi SFP 120km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-622M-BX160-L45 622Mbps BiDi SFP 160km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-622M-BX160-L54 622Mbps BiDi SFP 160km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
