Specifications
Brand Name :
UTOPTEK
Model Number :
UT218SM-SC20
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1pair
Payment Terms :
Western Union, T/T, Paypal, Alipay
Delivery Time :
3-5Working days
Packaging Details :
1pair/box, box size:27.5*17*9cm, 0.8kg/pair
Interface :
RS232 DB9, 1 Fiber port
Bit Rate :
0-120Kbps
Fiber Connector :
SC/FC/ST optional
Fiber Type :
SM or MM, Single fiber or Dual fiber optional
Fiber Distance :
MM (2KM); SM (20km Default)
Power input :
9V~36V DC
Working Temperature :
0℃ to 60℃
Size :
100mm*69mm*22mm
power adapter :
DC5V 1A
Description

UT218SM-SC20

RS-232 Serial to Fiber Converter Single mode dual fiber SC 20km

(FC/SC/ST Connector optional )

RS232 DB9 to Fiber Modem Media Converter with SM duplex SC/FC/ST 20km for alarm system using

1. Overview

UT218 series is a sort of more function and economy RS-232 interface optic fiber MODEM. It is the best choice to connect RTU to HOST or SCADA controller. It used Optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the secure environment.

2. Function and Characteristic

a) Support RS-232 interface

b) Asynchronous, point to point, rate up to 120Kbps

c) Support 5V DC input, consumption 2W

d) Internal or external power choice

e) Working wavelength: 1310nm

f) Auto test signal rate, zero delay auto transmit

3. Performance guideline

Interface: support EIARS-232 standard

Rate: 0-120Kbps

Transmit distance: Rs-232 port multi-mode 2KM, single-mode 20KM

Working environment: 0℃ to 50℃

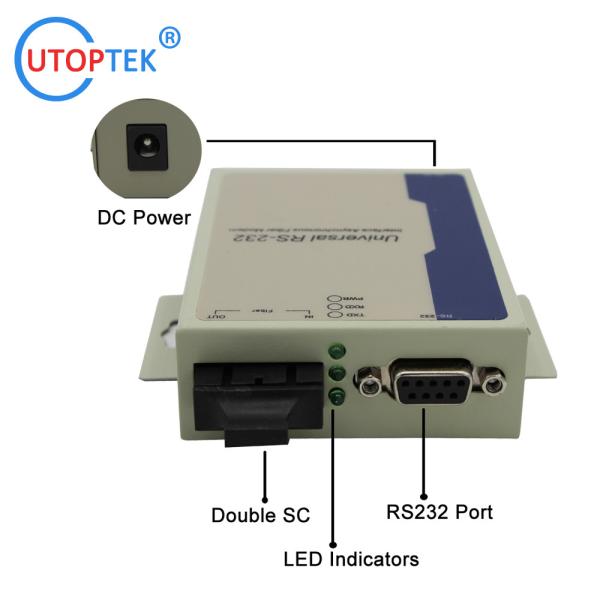

4. Appearance guideline

Interface type: DB-9 female (RS-232), multi-mode choice ST/SC/FC interface,single-mode choice FC/SC/ST interface

L*W*H: 100mm*69mm*22mm

Shell: Iron

Color: White

Weight: 230g

5. Pin define

Power interface

DCIN --------- 5V input RS-232 port

IN --------- RS-232 input

OUT --------- RS-232 output

GND --------- Ground

Optical fiber interface

IN --------- Optical fiber input

OUT --------- Optical fiber output

6. Indicator light explain

Power: Power indication

RxD: Optical fiber interface receive indication

TxD: Optical fiber interface send indication

  • Order Information
RS232 to fiber series UT218MM-SC2 RS232 to Fiber, Dual Fiber, MM 1310nm , 2KM, SC
UT218SM-SC20 RS232 to Fiber, Dual Fiber, SM 1310nm , 20KM, SC
UT218SM-SC20A RS232 to Fiber, Single Fiber, SM Tx1310nm/RX1550nm, 20KM, SC
UT218SM-SC20B RS232 to Fiber, Single Fiber, SM Tx1550nm/RX1310nm, 20KM, SC
RS485/422 to fiber series UT268MM-SC2 RS485/422 to Fiber, Dual Fiber, MM 1310nm , 2KM, SC
UT268SM-SC20 RS485/422 to Fiber, Dual Fiber, SM 1310nm , 20KM, SC
UT268SM-SC20A RS485/422 to Fiber, Single Fiber, SM Tx1310nm/RX1550nm, 20KM, SC
UT268SM-SC20B RS485/422 to Fiber, Single Fiber, SM Tx1550nm/RX1310nm, 20KM, SC
RS485/422/232 to fiber series UT168MM-SC2 RS485/422/232 to Fiber, Dual Fiber, MM 1310nm , 2KM, SC
UT168SM-SC20 RS485/422/232 to Fiber, Dual Fiber, SM 1310nm , 20KM, SC
UT168SM-SC20A RS485/422/232 to Fiber, Single Fiber, SM Tx1310nm/RX1550nm, 20KM, SC
UT168SM-SC20B RS485/422/232 to Fiber, Single Fiber, SM Tx1550nm/RX1310nm, 20KM, SC

(Remark: ST/SC/FC Fiber connector Optional; optical distance:20/40/60/80km optional)
