622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik
Specifications
Brand Name :
UTOPTEK
Model Number :
UT-622M-SX1310
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :
2000pcs per week
Delivery Time :
1-2days
Packaging Details :
10pcs to one plastic plate
Transmission speed :
622Mbps
Fiber Type :
Multi-mode, Duplex LC
Distance :
2KM
DDM Function :
Support
Power supply :
3.3V
Working Temperature :
0~70℃
Wavelength :
TRX1310nm
Warranty :
3 years
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Description

622Mbps 2Km SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1310nm, VCSEL, Multi-mode, DDM

Description:

UTOPTEK’s UT-622M-SX1310 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310nm FP laser, up to 17dB link budge ensure this module SONET OC-3/SDH STM-4 2Km application.

Features:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: TRx1310nm
Distance 2KM
Data Rate (max) 622Mbps
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box

Applications:

  • STM-4 SX Ethernet
  • Metro/Access Networks
  • 2×Fiber Channel
  • Other Optical Links

Prpducts Picture:

622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

Factory Show:

622M STM-4 SFP Transceiver multi mode 2Km 1310nm DDM Compatible ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

Ordering Information:

Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.

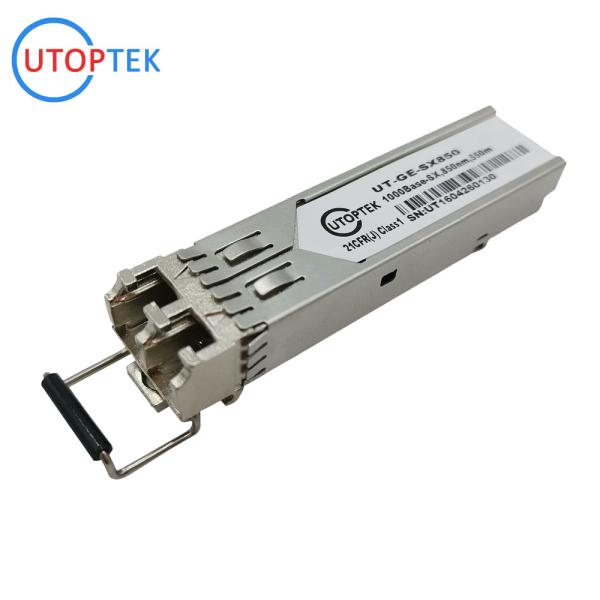

UT-622M-SX850 622Mbps SFP 2km 850nm VCSEL PIN LC 0-70℃
UT-622M-SX1310 622Mbps SFP 2km 1310nm FP PIN LC 0-70℃
UT-622M-LX20 622Mbps SFP 20km 1310nm FP PIN LC 0-70℃
UT-622M-EX40 622Mbps SFP 40km 1310nm DFB PIN LC 0-70℃

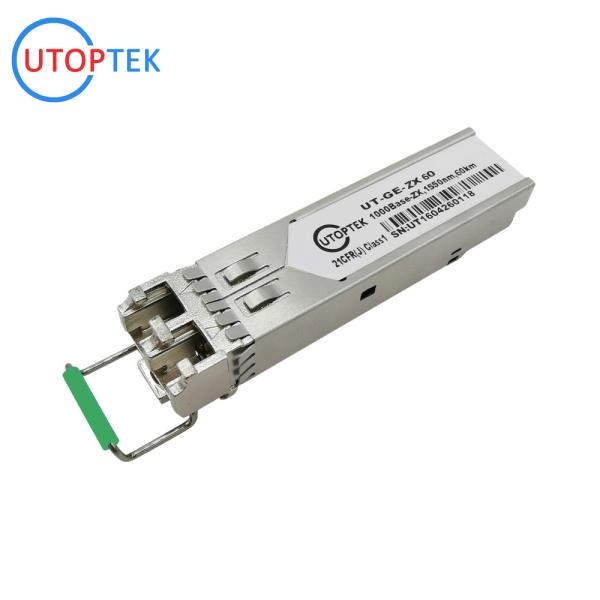

UT-622M-ZX60 622Mbps SFP 60km 1550nm DFB PIN LC 0-70℃
UT-622M-ZX80 622Mbps SFP 80km 1550nm DFB PIN LC 0-70℃
UT-622M-ZX100 622Mbps SFP 100km 1550nm DFB PIN LC 0-70℃
UT-622M-ZX120 622Mbps SFP 120km 1550nm DFB PIN LC 0-70℃
UT-622M-ZX160 622Mbps SFP 160km 1550nm DFB PIN LC 0-70℃
UT-622M-BX20-L35 622Mbps BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
UT-622M-BX20-L53 622Mbps BiDi SFP 20km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
UT-622M-BX40-L35 622Mbps BiDi SFP 40km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
UT-622M-BX40-L53 622Mbps BiDi SFP 40km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
UT-622M-BX60-L35 622Mbps BiDi SFP 60km Tx1310nm/Rx1550nm DFB PIN LC 0-70℃
UT-622M-BX60-L53 622Mbps BiDi SFP 60km Tx1550nm/Rx1310nm DFB PIN LC 0-70℃
UT-622M-BX80-L35 622Mbps BiDi SFP 80km Tx1310nm/Rx1550nm DFB PIN LC 0-70℃
UT-622M-BX80-L53 622Mbps BiDi SFP 80km Tx1550nm/Rx1310nm DFB PIN LC 0-70℃
UT-622M-BX100-L35 622Mbps BiDi SFP 100km Tx1310nm/Rx1550nm DFB PIN LC 0-70℃
UT-622M-BX100-L53 622Mbps BiDi SFP 100km Tx1550nm/Rx1310nm DFB PIN LC 0-70℃
UT-622M-BX120-L35 622Mbps BiDi SFP 120km Tx1310nm/Rx1550nm DFB PIN LC 0-70℃
UT-622M-BX120-L53 622Mbps BiDi SFP 120km Tx1550nm/Rx1310nm DFB PIN LC 0-70℃
