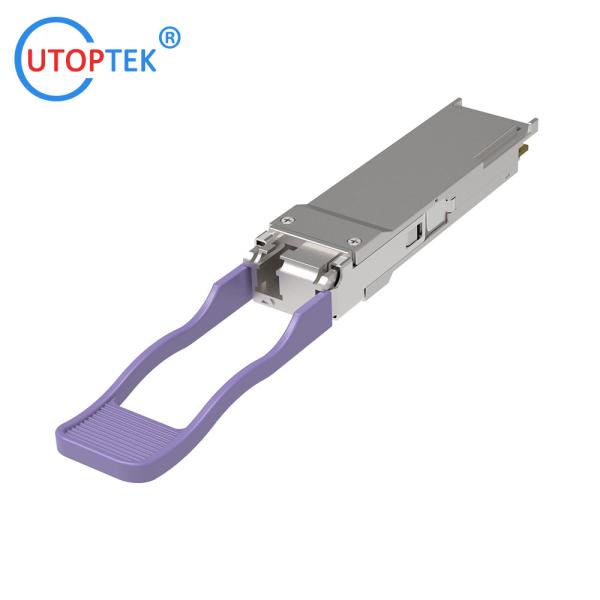

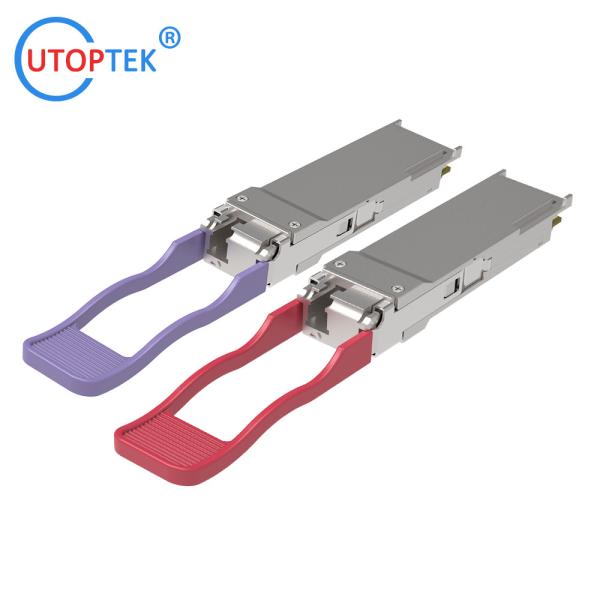

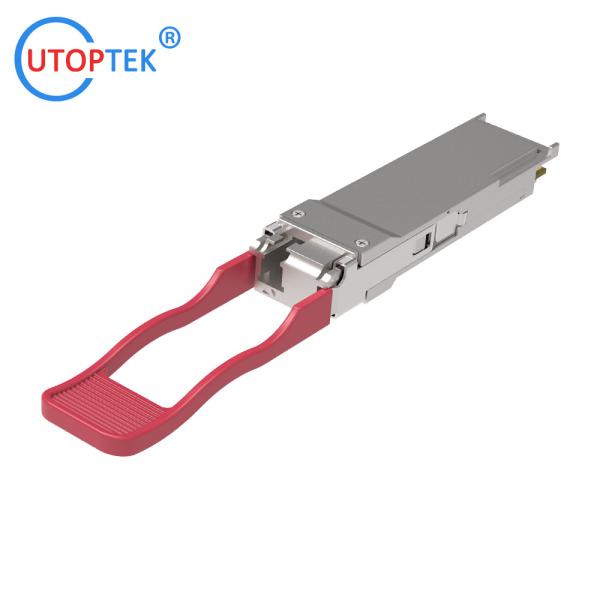

QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module
Specifications
Brand Name :
UTOPTEK
Model Number :
QSFP28-100G-BX20-U/D
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
1pair
Payment Terms :
T/T, paypal, Western Union
Delivery Time :
2-3working days
Packaging Details :
4pcs per tray
Speed :
100Gbps
Fiber Type :
single mode Single LC
wavelength :
1291-1311nm
Fiber connector :
LC connector
Distance :
20km
Power supply :
3.3V
Working Temperature :
0~70℃
Compatible :
Cisco,Huawei,HP,H3C,Juniper,Extreme etc..
Warranty :
3 years
Package :
4pcs per tray
Description

QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module

1.Product Features:

  • Lane signaling rate 106.25Gb/s with PAM4
  • Up to 20km transmission on SMF
  • EML Laser and PIN receiver
  • 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
  • Support KP4 FEC inside the module
  • High speed I/O electrical interface
  • I2C interface with integrated Digital Diagnostic monitoring
  • QSFP28 MSA package with simplex LC connector
  • Single +3.3V power supply
  • Power consumption <3.5 W
  • Operating case temperature: 0 to +70 °C
  • Compliant to SFF-8636&SFF-8679 standard
  • Compliant to 100G Lambda MSA 100G-LR1 Optical Specifications
  • Complies with EU Directive 2015/863/EU

2.Applications:

  • Data Center
  • 100GBASE-LR BIDI

3.Technical specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP28
Fiber Type Single mode, Single LC
Wavelength: 1291-1311nm
Distance 20KM
Data Rate (max) 100Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption <2.5W
Connector LC connector
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 4pcs/box


5.Factory Show:

QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module

6.Compatibility:

QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module

QSFP28-100G-BX20-U/D 100G Bidi LC 20km Single mode 1291-1311nm optical sfp transceiver 100G module

7.Ordering Information:

100Gbps QSFP28 Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
QSFP28-100G-SR4 100Gb/s QSFP28 100m 850nm VCSEL PIN MPO 0-70℃
QSFP28-100G-LR4 100Gb/s QSFP28 10km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-LR4-20 100Gb/s QSFP28 20km 1310nm DFB PIN LC 0-70℃
QSFP28-100G-ER4 100Gb/s QSFP28 40km 1310nm EML APD LC 0-70℃
QSFP28-100G-PSM4 100Gb/s QSFP28 2km 1310nm DFB PIN MPO 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 10km 1270-1330nm CWDM EML PIN LC 0-70℃
QSFP28-100G-CWDM4 100Gb/s QSFP28 2km 1270-1330nm CWDM EML PIN LC 0-70℃
QSFP28-100G-ZR 60km 100Gb/s QSFP28 60km 1310nm EML APD LC 0-70℃
QSFP28-100G-ZR4 100Gb/s QSFP28 80km 1310nm EML APD LC 0-70℃
100G 100km
QSFP28-100G-BX10-U 100Gb/s QSFP28 10km 1271-1331nm EML PIN LC 0-70℃
QSFP28-100G-BX10-D 100Gb/s QSFP28 10km 1331-1271nm EML PIN LC 0-70℃
QSFP28-100G-BX20-U 100Gb/s QSFP28 20km 1291-1311nm EML PIN LC 0-70℃
QSFP28-100G-BX20-D 100Gb/s QSFP28 20km 1311-1291nm EML PIN LC 0-70℃
QSFP28-100G-BX30-U 100Gb/s QSFP28 30km Tx1305/Rx1309nm EML APD LC 0-70℃
QSFP28-100G-BX30-D 100Gb/s QSFP28 30km Tx1309/Rx1305nm EML APD LC 0-70℃
QSFP28-100G-BX40-U 100Gb/s QSFP28 40km Tx1305/Rx1309nm EML APD LC 0-70℃
QSFP28-100G-BX40-D 100Gb/s QSFP28 40km Tx1309/Rx1305nm EML APD LC 0-70℃
