UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera
Specifications
Brand Name :
UTOPTEK
Model Number :
UT-1E1EP-S/M
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2pcs
Payment Terms :
T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :
5000pcs per week
Delivery Time :
1-2 days
Packaging Details :
50pairs/Carton, 57*43*50CM, G.W.:18Kg
Product name :
EOC Converter
Interface :
2wire+1*RJ45 POE port
Speed :
10/100Mbps
Extend distance :
0~500meters
Power input :
DC44V~57V
Product size :
94×71.4×26 mm
Warranty :
12months
N.W/G.W(kg) :
0.19kg/0.36kg
Housing Material :
Metal
Operating Temperature :
0～+70°C
support POE function :
YES
Description

Overview:

The Model UT-1E1EP digital video signal transmitter can extend the transmission distance of the digital camera's video signal, POE is also supported, The camera and other terminal POE devices can be powered by the transmitter, No separate power supply is required. The product adopts industrial grade design, Applicable to all kinds of video transmission systems, Such as security monitoring system, Elevator video network coverage, Multimedia Network Teaching System, Industrial Automations, Medical monitoring display system, Advertising screen real-time playback system.

Key Feature

1. Support the local end to supply power to remote devices, with a maximum output of 60W;

2. Support 2 megapixel high-definition video transmission(1080p);

3. Support multiple cable transmission;

4. Support multicast function.

Technical sheet:

Category Item Parameters
Power Adapter Input DC44V~57V / 1A
Output POE30W /POE60W
Transmission Transmission medium

Coaxial Cable, Twisted Pair Cable, Telephone Cable, RVV Cable

TP/UTP: Cat.5, Cat.5E, Cat.6
Transmission Distance

(2*0.75mm³ RVV Cable) 500meters

(UTP:Cat.5) 500meters (56V power)
maximum throughput(Bandwidth) 45Mbps
multicast Support IGMP multicast protocol
Connector DC_IN 2.1x5.5mm DC Connector
DC_OUT

RJ45

(30W:1,2,3,6)

(60W:1,2,3,6,4,5,7,8)
Ethernet RJ45 (1,2 & 3,6)
Twisted pair signal input and output 5.08mm×2
GND Frame GND
LED Master

Device indicator:

M side: ON

S side:OFF

(Pls check M & S before connect the power)
Link

IP Signal indicator:

TP signal is connected, ON;

TP signal isn't connected,OFF.
Power Connect the power, ON.
RJ45 Green

Communication indicator:

Blinking during communication
RJ45 Yellow

POE indicator:

POE is enabled, ON;

overload or under voltage , Blink.
Case Size 94×71.4×26 mm
Color Black
Weight 190g
Environmental Requirement Working Environment -20℃~70℃
Humidity 0-95%
Storage temperature -40℃~85℃


Products show:

UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP cameraUT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP cameraUT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera

Connection topology​:

UT-1E1EP-S/M POE POC EOC IP Ethernet over 2wire extender Converter 500meters for outdoor/indoor/elevator IP camera

Order Models:

UT-1E1C-S/M 10/100Mbps 1*LAN+1*BNC, EOC Ethernet over Coaxial Extender,0~1.5km,
Power Supply: DC12V		 Pair

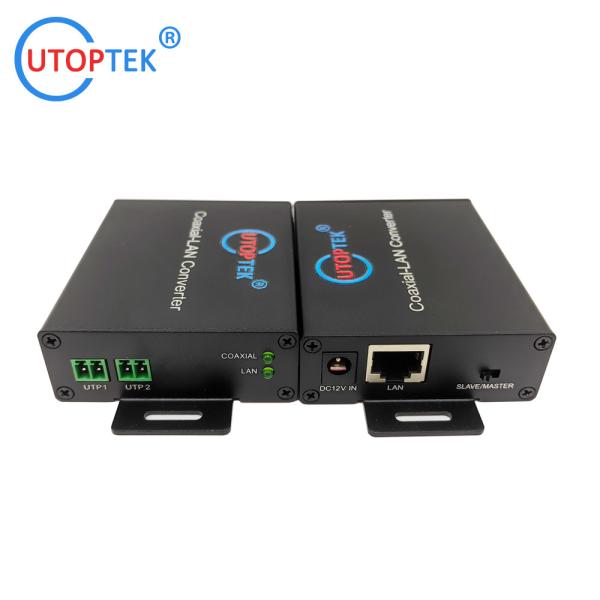

UT-1E2W-S/M 10/100Mbps 1*LAN+2*2wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km,
Power Supply: DC12V		 Pair
UT-1EP1C-S/M 10/100Mbps 1*LAN POE+1*BNC, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V Pair
UT-1EP2W-S/M 10/100Mbps 1*LAN POE+1*2wire port, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V Pair
