Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
Specifications
Brand Name :
UTOPTEK
Model Number :
LC/UPC-LC/UPC-OM2-DX-3.0-XM-LSZH
Certification :
CE FCC RoHs
Place of Origin :
China
MOQ :
2
Payment Terms :
L/C, T/T, Western Union,Paypal,Alipay
Supply Ability :
1000K per month
Delivery Time :
1-3working days
Packaging Details :
1pc to one bag
Fiber connector :
Duplex LC
Cable Diameter :
2.0/3.0mm optional
Sheath Material :
PVC/LSZH
Ferrule Type :
UPC
Cable Type :
Om1/Om2/Om3/OM4, MMF
Cable length :
1m, 2m, 5m, 10m, 20m or Customized
Fiber Core :
Duplex
Fiber Type :
50/125; 62.5/125; OM3-150/300, OM4
Working Temp. :
-20~70°c
Package :
Bag Packing(1PCS)
Description

SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable

1. Features

  • High dense spaces
  • Ceramic ferrules connectors
  • Low insertion loss,high return loss
  • Half the size of standard connector
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability
  • 100% Insertion,Return Loss, End face and Interference inspection


2. Applications

  • Telecommunication
  • CATV,FTTH,LAN
  • Fiber optic sensors
  • Optical transmission system
  • Test equipment

3. Technical sheet:

Parameter FC,SC,LC ST,MU MTRJ
SM MM SM MM SM MM
UPC APC UPC UPC UPC UPC UPC
Operating Wavelength(nm) 1310, 1550 850, 1300 1310, 1550 850, 1300 1310, 1550 850, 1300
Insertion Loss(dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss(dB) ≥50 ≥60 ≥35 ≥50 ≥35 ≥50 ≥35
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Plug times(times) ≥1000
Tensil Strength(N) ≥100
Durability(dB) ≤0.2
Operating temperature(ºC) -45~+75
Storage temperature(ºC) -45~+85

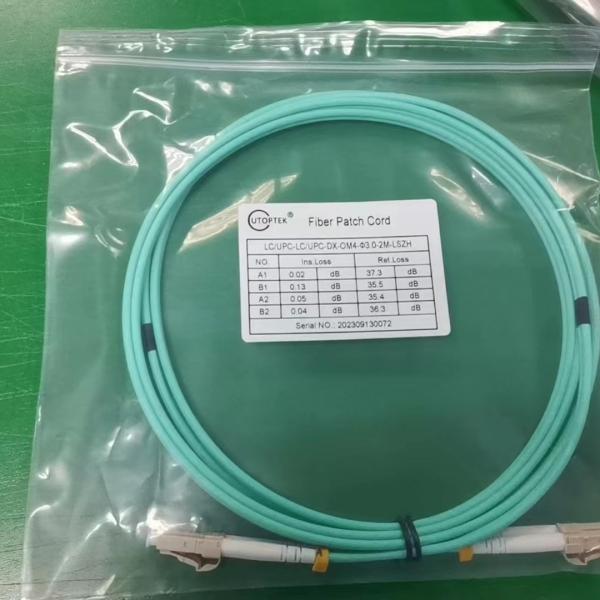

4. Package:

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable

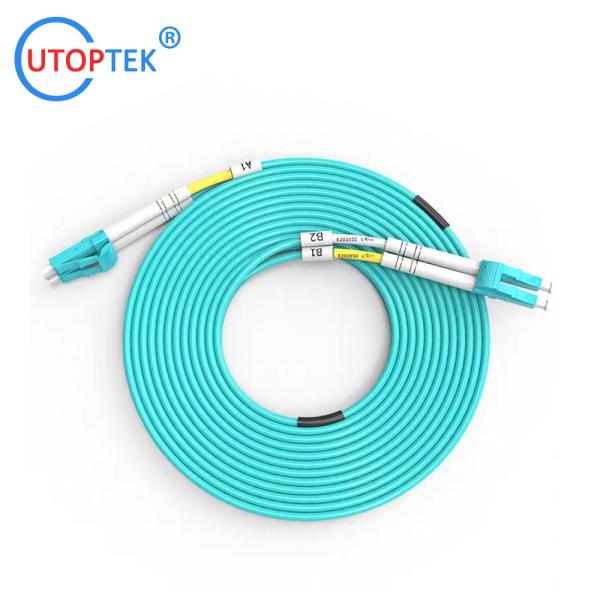

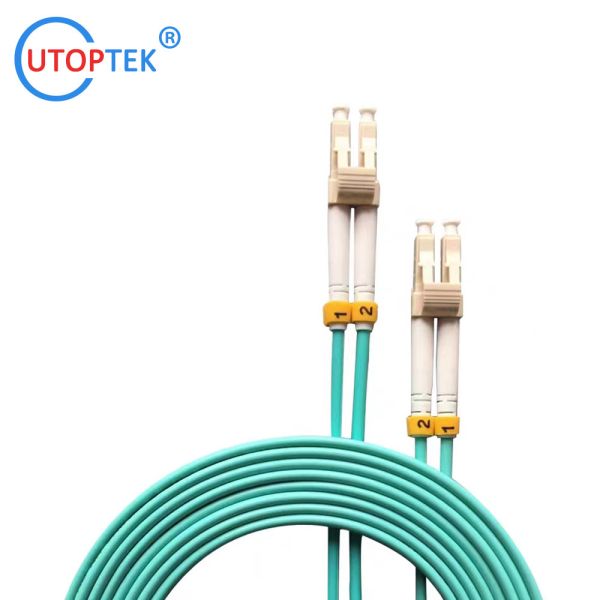

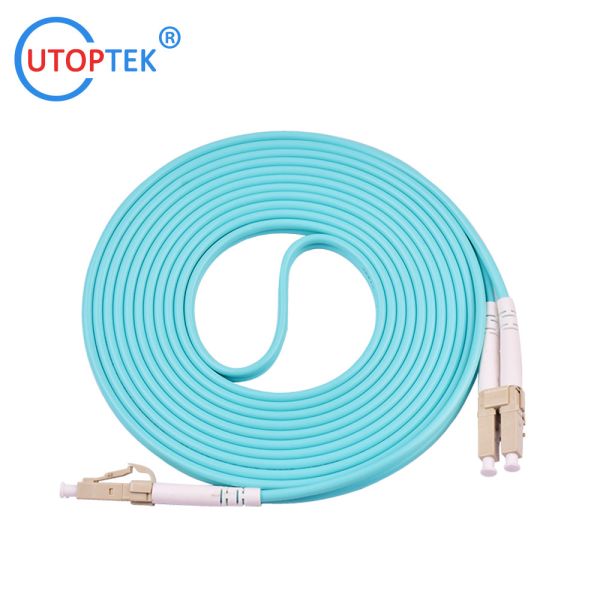

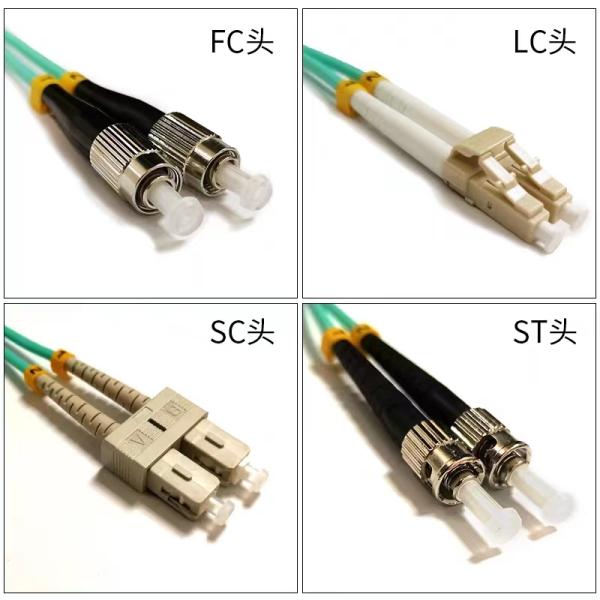

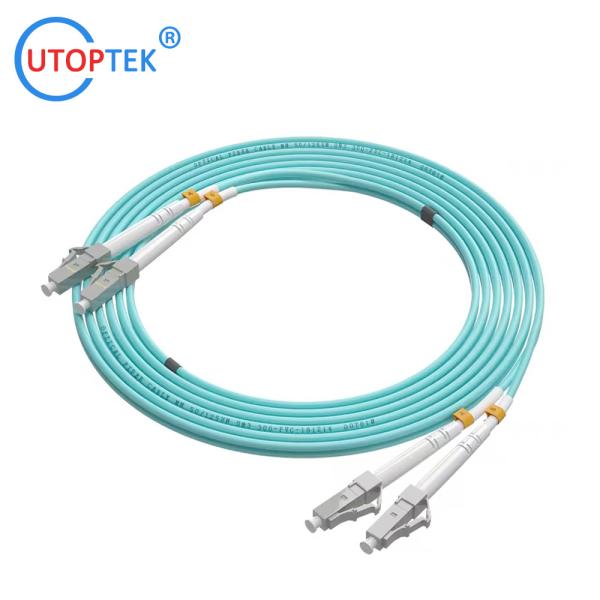

5. Product pictures:

Customized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cableCustomized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cableCustomized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cableCustomized OM3/OM4 Fiber prach cord cables LSZH 1m/2m/3m/5m/10m/50m patch cord cable
