compressed HDMI Video+Audio+USB KVM over fiber optical extender HDMI fiber optical media converter

Specifications

Brand Name :

UTOPTEK

Model Number :

UT-1H1U-T/R-F20

Certification :

CE FCC RoHs

Place of Origin :

China

MOQ :

2pcs

Payment Terms :

T/T, Western Union, Paypal, Alipay, Wechat etc.

Supply Ability :

5000pcs per week

Delivery Time :

1-2 days

Packaging Details :

66pcs/Carton, 57*43*50CM, G.W.:17.55Kg

Product name :

HDMI optical Extender

Interface :

HDMI+USB over Fiber optic

Fiber connector :

SC/FC optional

HDMI resulotion :

1920x1080P

Optical distance :

20km

Power input :

DC5V

Product size :

70x65x24MM

Warranty :

12months

support HDMI version :

HDMI 1.2

Housing Material :

Aluminium alloy

Operating Temperature :

0～+70°C

Description

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km HDMI video to fiber converter

Overview:

The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Transmits HDMI video signals up to 20km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support keyboard and mouse signal transmission;
Support external stereo audio unidirectional transmission;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play.

Technical sheet:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	19201080@60Hz 19201080@30Hz
	Connector	HDMI-A
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
Optical fiber	Interface	SC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	155M
	Transmission distance	standard 20km
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	11510827mm
	The warranty	1 year free warranty, life-long maintenance

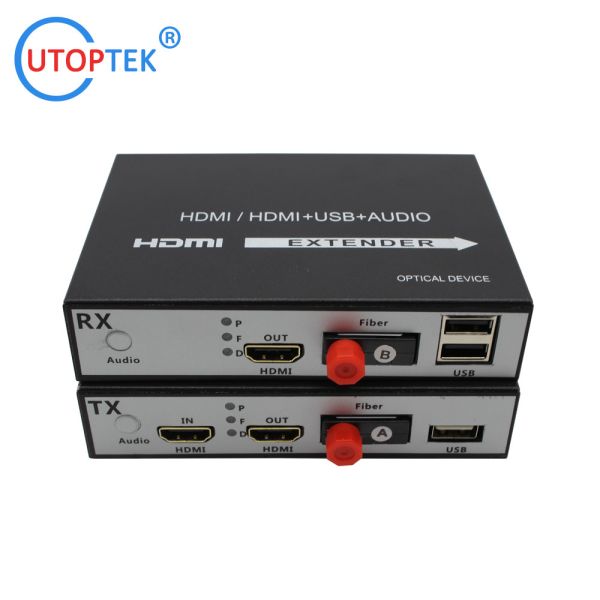

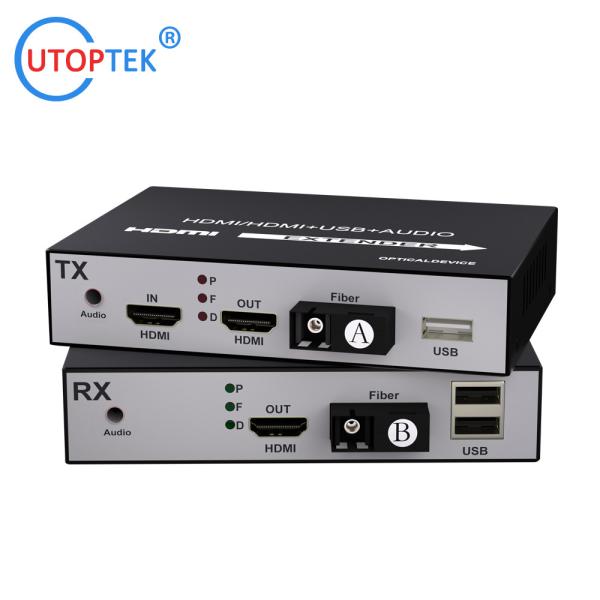

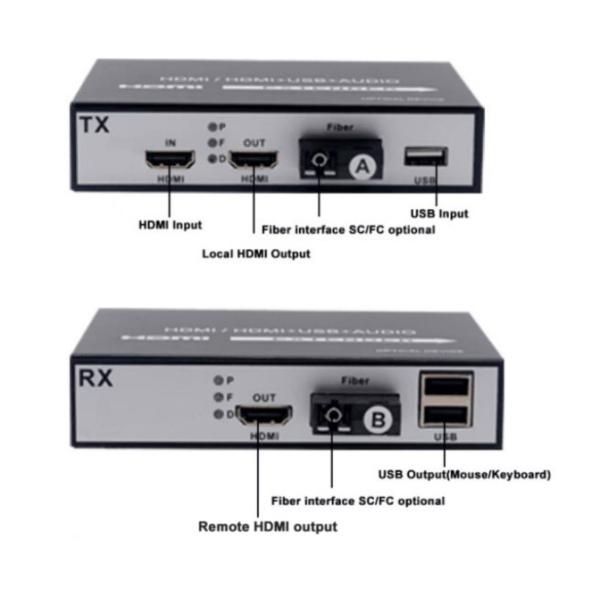

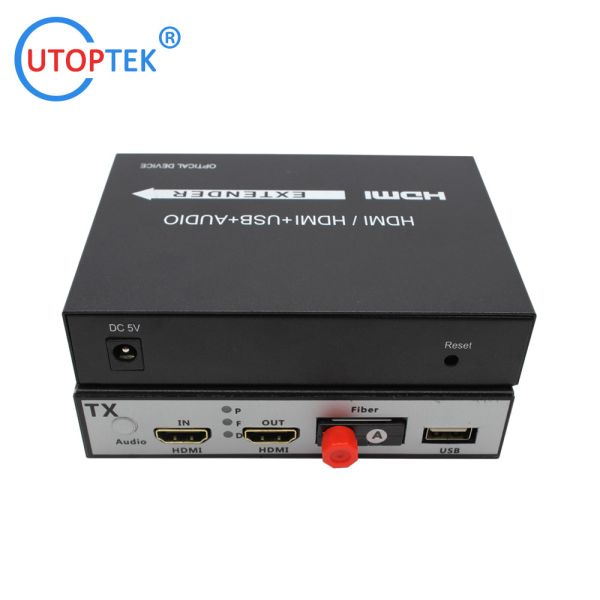

Products show:

compressed HDMI Video+Audio+USB KVM over fiber optical extender HDMI fiber optical media converter

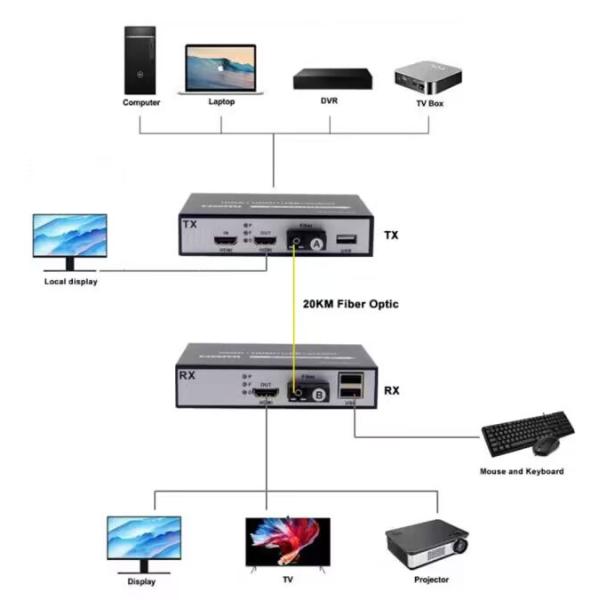

Connection topology:

compressed HDMI Video+Audio+USB KVM over fiber optical extender HDMI fiber optical media converter

Order Models:

UT-1H1F-T/R-F20	Mini Compressed full HD HDMI over fiber Optical Extender, SM single FC 20km, with DC5V power supply
UT-1H1U1A-T/R-S20	1Ch HDMI Video+Audio+1USB over fiber extender, HDMI video:Compressed Full HD 1080P, Fiber:Single Mode Single Fiber SC 20km,with US type power supply.
UT-1H1U-T/R-S20	1Ch HDMI Video+USB over fiber extender, HDMI video:Compressed Full HD 1080P, Fiber:Single Mode Single Fiber SC 20km,with US type power supply.
UT-1H1L-TX/RX	HDMI over LAN Extender 1080P@60Hz HDMI over LAN (Cat5e Cat6) Extender 60meters, with power supply DC5V/1A
