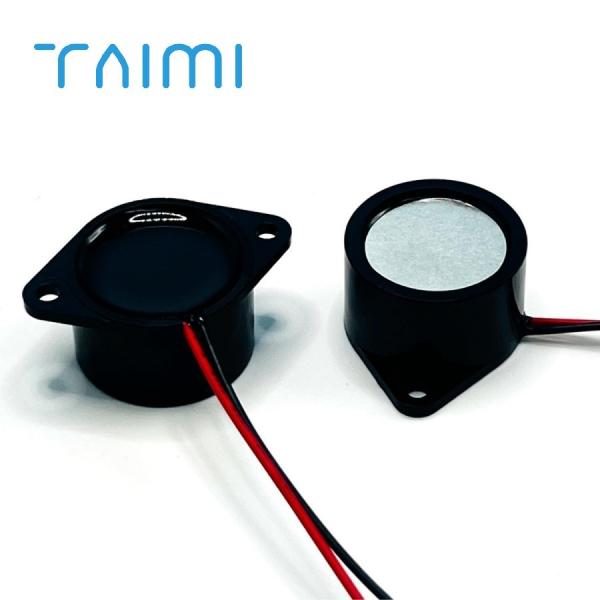

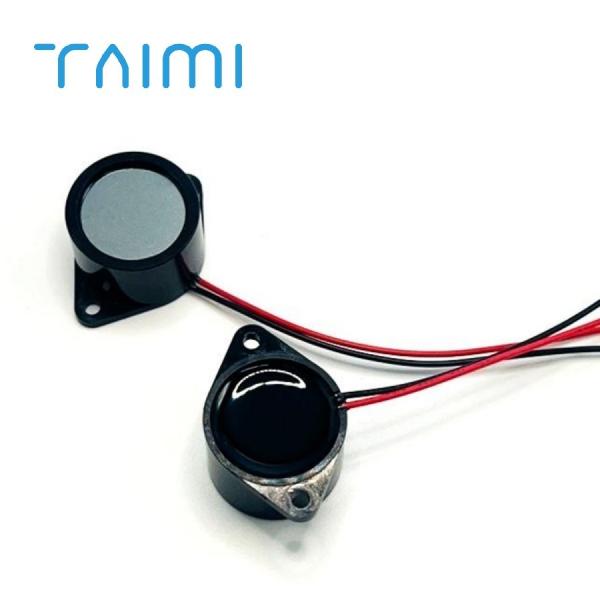

Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer
Specifications
Brand Name :
TAIMI
Model Number :
TM-C2616-0532W100 Waterproof IP67 buzzer
Certification :
ISO9001、ISO14001、IATF16949
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000000/month
Delivery Time :
10~15days
Packaging Details :
safe packaging
Rated voltage (vp-p) :
5v dc
APPLICATION :
3W electric Vehicle Battery pack (173Ah & 106 Ah)
Min Sound Output :
85dB 5VDC/30cm
Resonant Frequency (Hz) :
3200±500
Current consumption (maximum) :
max.30mA
Waterproof and dustproof level :
IP67
Description

Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack use buzzer

TM-C2616-0532W100 electric Vehicle alarm buzzer

Electric cars motorcycles use 5VDC PIEZO BUZZER 3W electric Vehicle Battery pack alarm buzzer

Part No:TM-C2616-0532W100 electric Vehicle alarm buzzer
1 Rated Voltage (VDC) 5
2 Operating Voltage (VDC) 3～7
3 *Sound Output at 30cm (dB) ≥85
4 *Current Consumption (mA) ≤30
5 Resonant Frequency (Hz) 3200±500
6 Operating Temperature (℃) -20～+60
7 Storage Temperature (℃) -30～+70
8 Housing Material Black ABS
9 Waterproof and dustproof level IP67
*Applying rated voltage

Buzzer Soldering process

 Soldering Parameter
Temp.( ℃) Time(Sec.) Times
Reflow soldering 245±15

180℃ 40~70秒 245℃ 3秒

above 180℃ time 40~70

 3
Wave soldering 255±5 4~6 2~3
★ Manual soldering 350±10 2~5 2~3
Remark:★ TAIMI Instance Soldering Process

DIMENSIONS (UNIT: mm) ±0.5mm Tolerance: ±0.5mm Except Specified
