Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Specifications
Brand Name :
UUPAC
Model Number :
TY-A-M/P20-2
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1
Price :
USD6000-8000 Per set
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
15 working days
Packaging Details :
packaged with the wooden case
Model :
TY-A-M/P20-2
hopper volume :
1.6L/2.5L
control system :
PLC/MCU
HMI :
10 Inch touch screen
Application :
Almonds/pistachios/pine nuts/puffed food/pet food
Machine frame :
SUS304 welding frame
power supply :
AC220V/110V ±10% 50HZ/60HZ, 3KW
packing size :
1530*1530*1568mm
spare parts :
1200*1000*988mm
hopper :
20 heads
Description
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Application:
Applicable for weighing of granular, bar-shaped products, such as sunflower / melon seeds, almonds, pistachios, pine nuts,
candies, puffed food, beans, frozen food, pet food, snacks, hardware and chemicals.

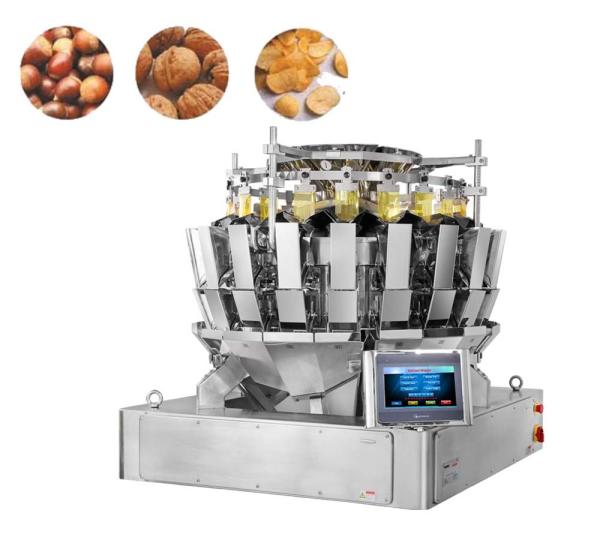

Multi-heads 20 hoppers weigher
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
The weigher with VFFS and bowl-type elevator
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
Packing and weighing system
Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher

Application:
Applicable for weighing of granular, bar-shaped products, such as sunflower / melon seeds, almonds, pistachios, pine nuts,
candies, puffed food, beans, frozen food, pet food, snacks, hardware and chemicals.
Main Function & Features:
1. Professional digital weighing module with high precision and good stability
2. Control system: MCU or PLC (optional).
3. Touch screen interface with different levels of authorized access; up to 16 different languages for choice; application
software upgraded through USB.
4. Factory parameters recovery function; 99 preset product parameters to meet different parameter program requirements.
5. Weighing hopper able to discharge in turn to effectively prevent products from blocking.
6. Weighing and counting function to meet diverse needs from customers.
7. Real-time display of amplitude of each vibration pan as well as product weight in each hopper to better monitor the running
status of the machine.
8. Machine body with SUS304/316 for option; IP65 dust and waterproof design.
9. Cleaning function: able to make the hoppers in opening state for easy daily cleaning and maintenance.
10. Two independent weighing system. With double upper storage hopper, double main vibrator and double discharge chute, two
different products can be weighed at the same by presetting two different operating parameters. It can also be used as a
normal 20-head weigher.

Technical Parameters:

Model
TY-A-M/P20-2
Max. Weighing (one hopper)
 1500g
Accuracy
x (0.5)
Min. Scale Interval
0.1g
Max. Speed
130 WPM
Hopper Volume
 1.6/2.5L
Control System
MCU / PLC
HMI
10’’ color touch screen
Power Supply
AC220V/110V ±10% 50HZ/60HZ, 3KW
Packing Dimension
Machine: 1430(L)*1,430(W)*1,508(H)mm
Spare parts: 1,480(L)*1,100(W)*1,238(H)mm
Package weight
Machine: 618kg
Spare parts: 342kg

Welcome to contact us for a free quote Weighing And Packing System For Snacks/Puffed Food/Pet Food 1.6L/2.5L Hopper 20 Heads Multi-Head Weigher
