SUS 304 Multihead Weigher Packing Machine 10-70BPM Synchronous Servo Check
SUS 304 Multihead Weigher Packing Machine 10-70BPM Synchronous Servo Check
Specifications
Brand Name :
UUPAC
Certification :
CE,ISO9001
Place of Origin :
Hefei,Anhui,China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Sets/Month
Delivery Time :
15-20 working days
Packaging Details :
Fumigation wooden case+Pallet
Product :
Weighing&Packing System
Materials :
SUS 304
Film Width :
140-320mm
Film Thickness :
0.04-0.09mm
Control Type :
single servo /dual servo
Description

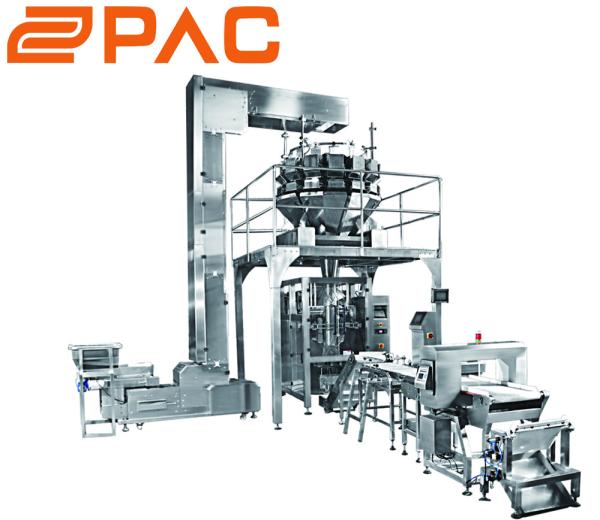

Multihead Weigher Packing Machine 10-70BPM Synchronous Servo Check Weigher

Automatic Candy/Cookies/Chips Snack Foods Weighing Packaging Systems

Product Description

Application

It is suitable to use in packing the high accuracy and easy fragile materals, such as: potato chips, crispy nice, snacks, candy,pistachio, sugar, apple slices, dumpling. chocolate, pet food, small wares, etcFeatures:

1. Double servo motors for film drawing down system.

2 Automatic film rectifying deviation function,

3. Famous brand PLC Pneumatic system for vertical and horizontal sealing

4. Compatible with different intemal and extemal measuring device5 Adopt clip supporting without broken bags and reduce waste

Model
320 VFFS
420VFFS
Packing Speed
10-80BPM
10-70BPM
Bag Size
50-200(L)*60-150(W)mm
60-300(L)*60-200(W))mm
Bag Type
pillow bag, gusset bag, hole punching bag, vacuum bag
Film Width
140-320mm
140-420mm
Film Thickness
0.04-0.09mm
0.04-0.09mm
Film Material
BOPP/CPP,BOPPVMCPP,BOPP/PE,PETVMPET/PE,PET/PE
Control Type
single servo /dual servo
single servo /dual servo
Air Consumption
0.8Mps 0.25 m³/min
0.8Mps 0.5 m³/min
Power Supply
single phase 220V 50Hz/60Hz,2.2kW
single phase 220V 50Hz/60Hz,2.2kW
Machine Dimension
1,115(L)*800(W)*1,370(H) mm
1,530(L)*970(W)*1,600(H) mm
Machine Weight
300kg
450kg
Model
520 VFFS
620 VFFS
720 VFFS
Packing Speed
10-60 BPM
10-50 BPM
10-45 BPM
Bag Size
50-350(L)*50-250(W) mm
20-400(L)*100-300(W)mm
20-450(L)*140-350(W) mm
Bag Type
pillow bag, gusset bag, hole punching bag
pillow bag,gusset bag,hole punching bag
pillow bag, gusset bag, hole punching bag
Film Width
120-520mm
620mm
720mm
Film Thickness
0.04-0.09mm
0.04-0.09mm
0.06-0.12mm
Film Material
BOPP/CPP,BOPPVMCPP,BOPP/IPE,PETVMPETIPE,PET/IPE
Pulling Belt Type
synchronous belt film puling
synchronous servo motor belt film puling
synchronous servo motor belt film puling
Air Consumption
0.8Mps 0.4 m³/min
0.8Mps 0.6 m³/min
200L/min 0.7×105Pa
Power Supply
single phase 220V 50Hz/60Hz,3.4kW
single phase 220V 50Hz/60Hz,4.0kW
single phase 220V 50Hz/60Hz,4.5kW
Machine Dimension
1,560(L)*1,160(W)*1,530(H) mm
1,250(L)*1,600(W)1,700(H) mm
1,360(L)*1630(W)*1,900(H) mm
Machine Weight
480kg
800kg
900kg
