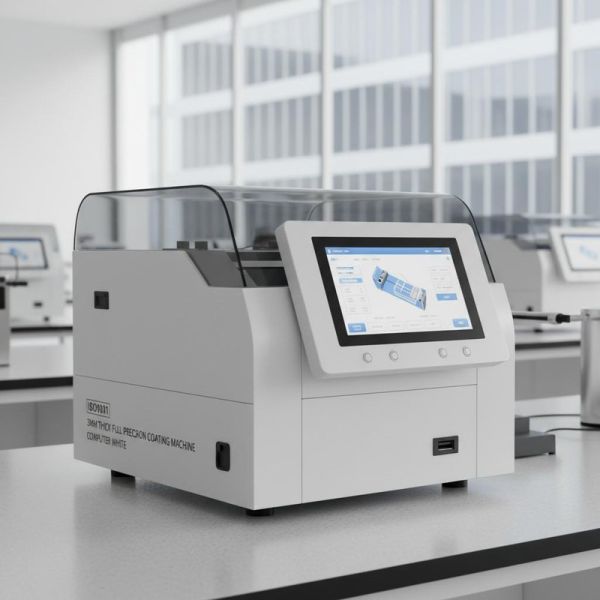

ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
ISO9001 3mm Thick Full Precision Coating Machine Computer White
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GT-1320-Ⅱ
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T, Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Product Name :
Full precision coating machine (both positive and reversible)
Color :
Computer White + Grass Green
Size :
2200mm long x 2300mm wide x 1520mm high. (According to actual size)
Feature :
Features: It is suitable for all kinds of panel furniture, calcium silicate board, glass magnesium board, cement fiber board and other flat coatings. The surface of the paint processed by this machine is smooth, full and no color difference.
Effective working size: :
a, effective width: 1320mm; b, thickness: 3-80mmc, length (shortest): 300mm
Material: :
The shell is made of 1.5mm steel plate by bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).
Supply Ability :
According to customer's demand
Description

ISO9001 3mm Thick Full Precision Coating Machine Computer White

Description:

suitable for all kinds of board furniture, calcium silicate board, glass magnesium board, cement fiberboard and other plane coatings, the surface of the paint treated by this machine is smooth, good plumpness, no color difference.

Information:

1 Mechanical dimension 2200mm long * 2300mm wide * 1520mm high.(Subject to actual size)
2 Effective working size: a. Effective width: 1320mm;b: thickness: 3-80mmc, length (shortest) : 300mm.
3

Material:

 The shell is made of 1.5mm steel plate bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).
4 Coating part: Adopts two groups of rolling coating system, each group system consists of steel roller and silica gel wheel, each group of rolling coating system can be lifted up and down separately.
5 Cots:
the diameter: ￠250mm, length: 1470mm, Japan quality silicone production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of high quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed.
6 Metering wheel:

diameter: ￠130mm, length: 1470mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout is less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.
7 conveyor roller:

power: 1.5KW, diameter: ￠130mm, length: 1320mm.The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.

Direct plug - in connection drive, can really achieve with the drive motor combined into one.
8 Conveyor belt: adopt green PVC plane conveyor belt, smooth transportation and long service life.
9 Transmission speed: 5-20m/min.
10 Working height: 0 ~ 850mm (belt height from ground), roller height equipped with position display.
11 Control system:

5 sets of RV reducer and 5 sets of DTA frequency converter are adopted. Each drum can be adjusted independently.
12 Electrical appliances:

Delta frequency converter, CHNT contactors, RV reducer, Siemens motor, famous domestic brands in line with international safety standards of famous appliances.
13 Safety device:

The machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards.
14 Transfer direction: from left to right.

ISO9001 3mm Thick Full Precision Coating Machine Computer WhiteISO9001 3mm Thick Full Precision Coating Machine Computer White

FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.

the diameter: ￠250mm, length: 1470mm, Japan quality silicone production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of high quality coupling transmission, bearing KHV bearing, Taiwan TDA frequency converter control cots speed.
