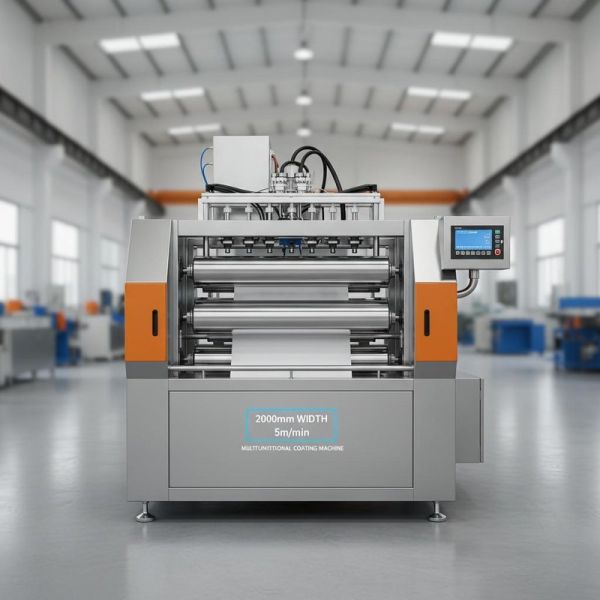

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GT-1320-Ⅶ
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Delivery Time :
35-45 Working days
Payment Terms :
T/T, Western Union
Packaging Details :
Wooden Box
Certification :
ISO9001 And CE
Product Name :
Multifunctional coating machine
Mechanical dimensions :
1500mm long × 1650mm wide × 1660mm high. (According to actual size)
Color :
Grass green + computer white
Roller coating system: :
3 rollers (respectively mirror steel roller, silica gel roller, mirror steel roller) are specially designed, and the running direction of each roller can be positive and reversible, and each roller can be independently controlled. , Both front and rear ste
Belt: :
adopt German Sieglin PVC anti-static belt, stable conveying, stable performance and long service life.
Effective working size (effective width) :
1320
Supply Ability :
According to customer's demand
Description

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

Description:

1 Emchanical size 2000mm×3200mm wide ×1520mm high.(Subject to actual size)
2 Effective working size: a. Effective width: 2000mm b.thickness: 3-180mm c.length (shortest) : 500mm.
3 Material: The shell is made of 1.5mm steel plate bending and welding, the surface is treated with liquid paint, and the supporting wall is made of 20cm steel plate (A3 material).
4 Coating part: Four groups of roll coating system are adopted, each group system consists of steel roller and silica gel wheel, each group of roll coating system can be lifted up and down separately.
5

side cots:

 The diameter: ￠150mm, length: 200mm, Japan high quality polyurethane production, wear-resistant, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can resist all kinds of solvent using high quality coupling transmission, bearing KHV bearing, the cots speed control by the frequency converter.
6 Side metering wheel: Diameter: ￠100mm, length: 200mm, using 45# seamless steel tube by CO² welding, surface fine grinding, do dynamic balance, runout less than 0.05mm, the surface by hard chrome plating and polishing to achieve bright effect.
7 conveyor roller: power:

1.5KW, diameter: ￠100mm, length: 1320mm.

The 45# seamless steel tube is welded by CO², the surface is finely ground, the dynamic balance is done, the runout is less than 0.05mm, the surface is plated with hard chrome and polished to achieve the bright effect.Direct plug - in connection drive, can really achieve with the drive motor combined into one.
8 Transmission mode: 100mm transmission roller transmission, width: 1320mm, long service life, smooth transmission.
9 Transmission speed: 5-20m/min.
10 Working height

0 ~ 850mm (working face height from the ground), roller height equipped with position display.
11 Control system:

5 sets of hollow worm gear reducer and 5 sets of frequency converter are adopted. Each drum can be adjusted independently.

Feature

It is suitable for side coating of all kinds of wood, plastic, metal, etc. The surface of paint treated by this machine is smooth, full degree is good, no color difference.

2000mm Width 5m/Min Multifunctional Coating Machine 3 Rollers

FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
