620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel
Specifications
Brand Name :
Osmanuv
Model Number :
OSM-GWUV-620
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Delivery Time :
30 WORK DAYS
Packaging Details :
Wooden box
Certification :
ISO9001
Warranty :
1 Year
Color :
Computer white
Product Name :
Infrared high temperature oven
Size :
3000mm x 980mm x 1450mm
Weight :
1500kg
Power(w) :
8 kw
Description

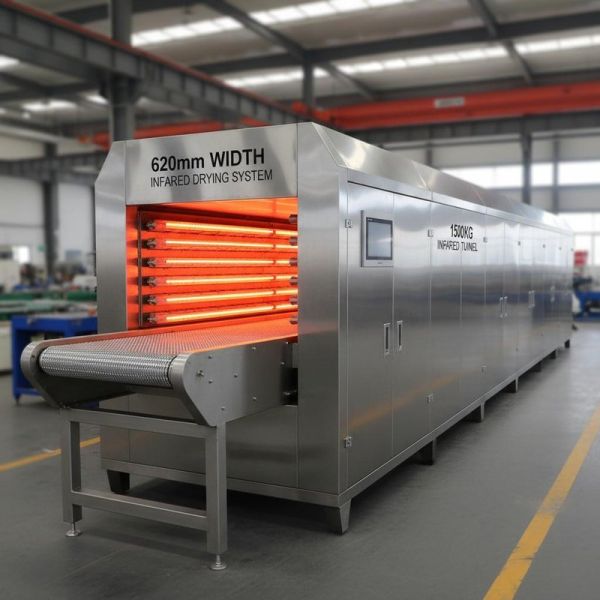

620mm Width Infrared Drying Systems , 8KW Infrared Tunnel

Description:

■10m heating leveling machine
1 Product name Infrared high temperature oven
2 Model: OSM-IR-620
3 Specifications: 3000mm x 980mm x 1450mm
4 Material:

The outer shell of the heating zone is made of A3 board, with insulation cotton in the middle.
5 Lamp:

adopts Taiwanese quartz heating tube with good heating effect.
6 Effective leveling width: 620mm.
7 Conveyor belt: adopt chain stainless steel string rod type.
8 Transmission system: The transmission motor adopts Taiwan TWT gear reducer.
9 Control system: adopt Taiwan Delta frequency converter, the speed can be adjusted 5-20 meters per minute, and there is a speed digital display.
10 Control system: BKC thermostat is used to control the temperature required for work, temperature: normal temperature -100℃ adjustable.
11 Electrical part: BKC thermostat, CHNT contactor, Taiwan Delta inverter, switch adopts Japanese Izumi switch, etc. All imported electrical appliances that meet international standards.
12 Safety system: over-temperature preventer, motor overload protection, control circuit insurance, emergency stop switch, etc... All electrical appliances conform to the first-class products of international standards.


620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel

620mm Width Infrared Drying Systems , 1500kg Infrared Tunnel

FAQ


Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
