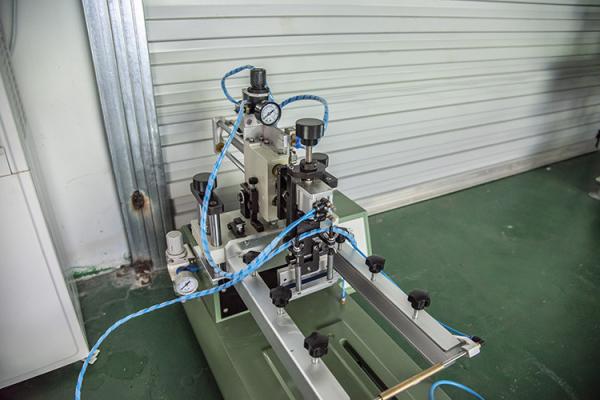

Silicone Bracelet Round Surface Screen Printing Machine

The round screen printing machine is a general-purpose screen printing machine. It can be widely used in various industries such as daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry and food packaging.

This round screen printing machine has the following characteristics:
1. Comprehensive functions, capable of printing cylindrical, conical and large arc surfaces.
2. All positions are sensored by electric eye, accurate position and excellent performance.
3. The working table can be fine-tuned in terms of left and right, front and rear, and angle, and the positioning is accurate and stable.

4. Automatic start function, it is more convenient to remove and wash the screen frame.
5. The left and right movement of the squeegee adopts a guide rail structure, which is light and stable to improve the printing quality.
6. The lifting and lowering of the screen frame adopts the round steel guide column guide rail movement structure, which has high precision and smooth movement.

7. Automatic netting function, higher printing quality.

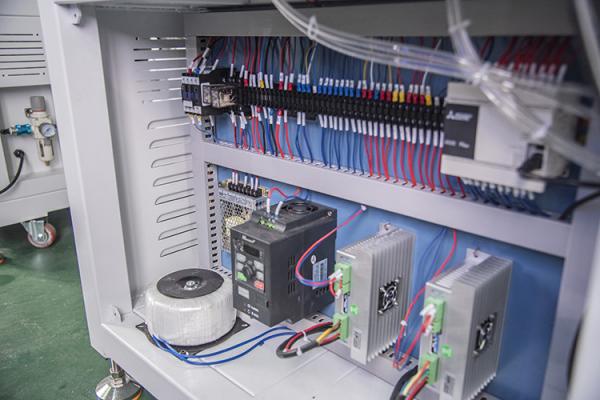

8. The circuit part adopts Taiwan Yangming control part, which is more stable in use
9. The left and right sides of the scraper are driven by pneumatic and synchronous belts, which makes the operation more stable.
10. Automatic air suction function, suitable for printing thin workpieces.
11. The performance is stable, and the whole machine is controlled by the world's advanced microcomputer controller.

12. According to customer needs, preset two functional programs, single-cycle printing and full-automatic printing.
13. Adopting the latest pneumatic components from Taiwan Airtac Company and Japan (SMC) Company, the power is smooth and strong, and it is durable.
14. With special shock absorption device, the machine operates very smoothly.
15. The worktable adopts cast aluminum fine mesa, with higher printing accuracy.

16. The operation panel is more convenient and quick to use, and the silk screen function can be directly selected, quick response and easy to use.

Technical parameters:
1. Printing color 1 color
2. Single cycle yes
3. Continue to exercise
4. Item count Yes
5. Speed ​​adjustment is possible (0 ~ 9 adjustable)

6. Delay of each part can be (0 ~ 9 adjustable)
7. Printing speed 1000 times/hour
8. The largest screen frame 350mmX500mm
9. Maximum printing area Φ120mm screen printing diameter
10.Up and down stroke of screen frame 160mm

11. Scraper left and right stroke 400mm
12.Up and down stroke of scraper and oil scraper 25mm
13. Drive pneumatic
14. Control system microcomputer
15. Control voltage 12VDC
16. Power supply voltage 220VAC / 1 phase

17. Connection load 20W
18. Pneumatic supply 6bar
19. Air consumption / cycle 2.1L
20. Body size 920mm X 860mm X 1680mm
21. Weight 170Kg

If you need more equipment performance parameters, please contact us, thank you!
